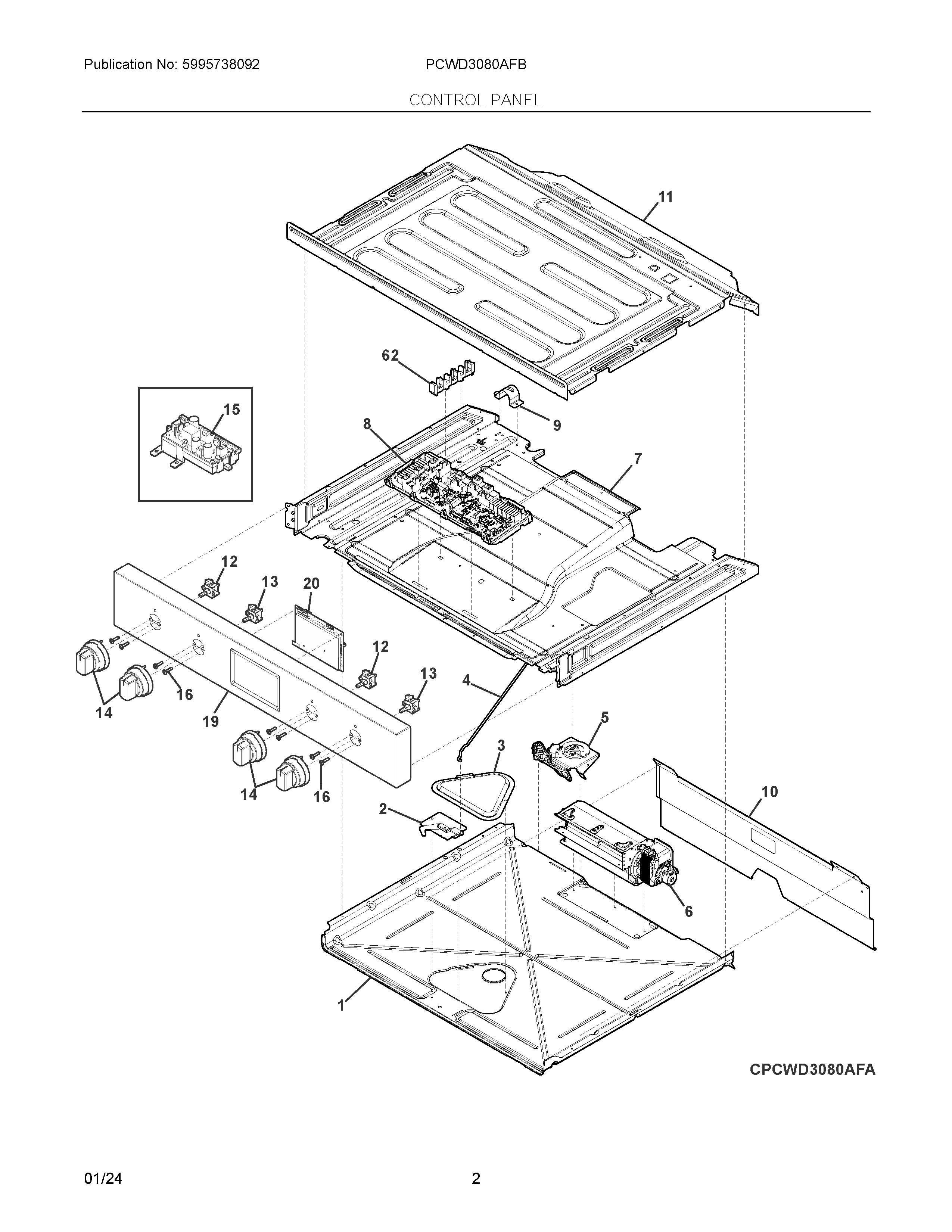

PCWD3080AFB 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NIHARNESS ASSEMBLY
NI5304532100 Frigidaire Harness
NI5304530448 Frigidaire Harness
NI5304532094 Frigidaire Harness Assembly
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NIWCI 387872717
NIA316001017 Frigidaire Screw
NICWCI 5304528293
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304525432 Frigidaire Board Assembly
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
12POTENTIOMETER
13808843110 Frigidaire Potentiometer Assembly
14KNOB
155304534050 Frigidaire Pc Board
16SCREW, TRUSS, 8-32 X 17.65
195304532089 Frigidaire Control Panel
20CONTROL,ELEC OVEN PRO DOUBLE
625304535277 Frigidaire Terminal Block
