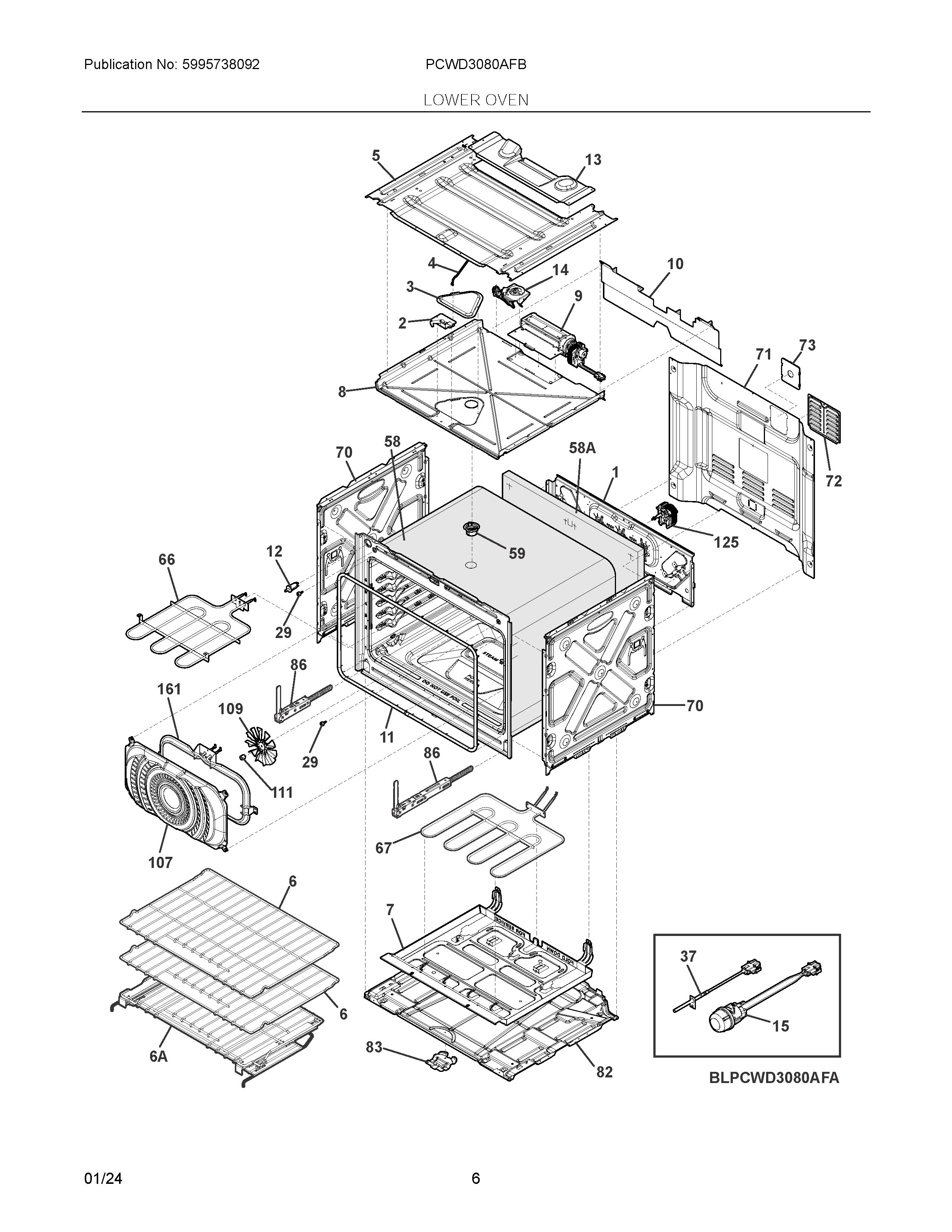

PCWD3080AFB 04 – LOWER OVEN

PCWD3080AFB 04 – LOWER OVEN

Written by

in

PCWD3080AFB 04 – LOWER OVEN

Products

PositionProduct
NI387856311 Frigidaire Screw
NIB5304526532 Frigidaire Screw
NI5304532099 Frigidaire Harness
NIA5304526234 Frigidaire Screw
NISCREW, SELF DRILL, M3.5 X 9.5
NI5304530448 Frigidaire Harness
NI5304530450 Frigidaire Anti Tip
NI5304535368 Frigidaire Harness
NI5304530459 Frigidaire Harness
NIWCI 5304536656
NIAWCI 387872717
NI5304530449 Frigidaire Harness
1PANEL
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526313 Frigidaire Panel
6ARACK ASSEMBLY, GLIDE
6RACK-FLAT HNDL BULLNOSE
7TRAY, HIDDEN BAKE
8SHIELD, BOTTOM DUCT
95304530369 Frigidaire Blower Assembly
10SHIELD, INSULATION, LOWER OVEN, DWO
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD, BAFFLE, LOWER DWO, COOLING
145304526552 Frigidaire Motor Assembly
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
54RECEPTACLE, MEAT PROBE
58INSULATION, OVEN, WRAPPER
58AINSULATION, OVEN, REAR
59TUBE, VENT CATALYST
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526330 Frigidaire Shield Assembly
725304526588 Frigidaire Cover
73COVER, ANTI VIBRATION
82PLATE-EXT BOTTOM SC
83BRACKET, BASE PANEL, MOUNT
86A5304530349 Frigidaire Hinge
865304530348 Frigidaire Hinge
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
