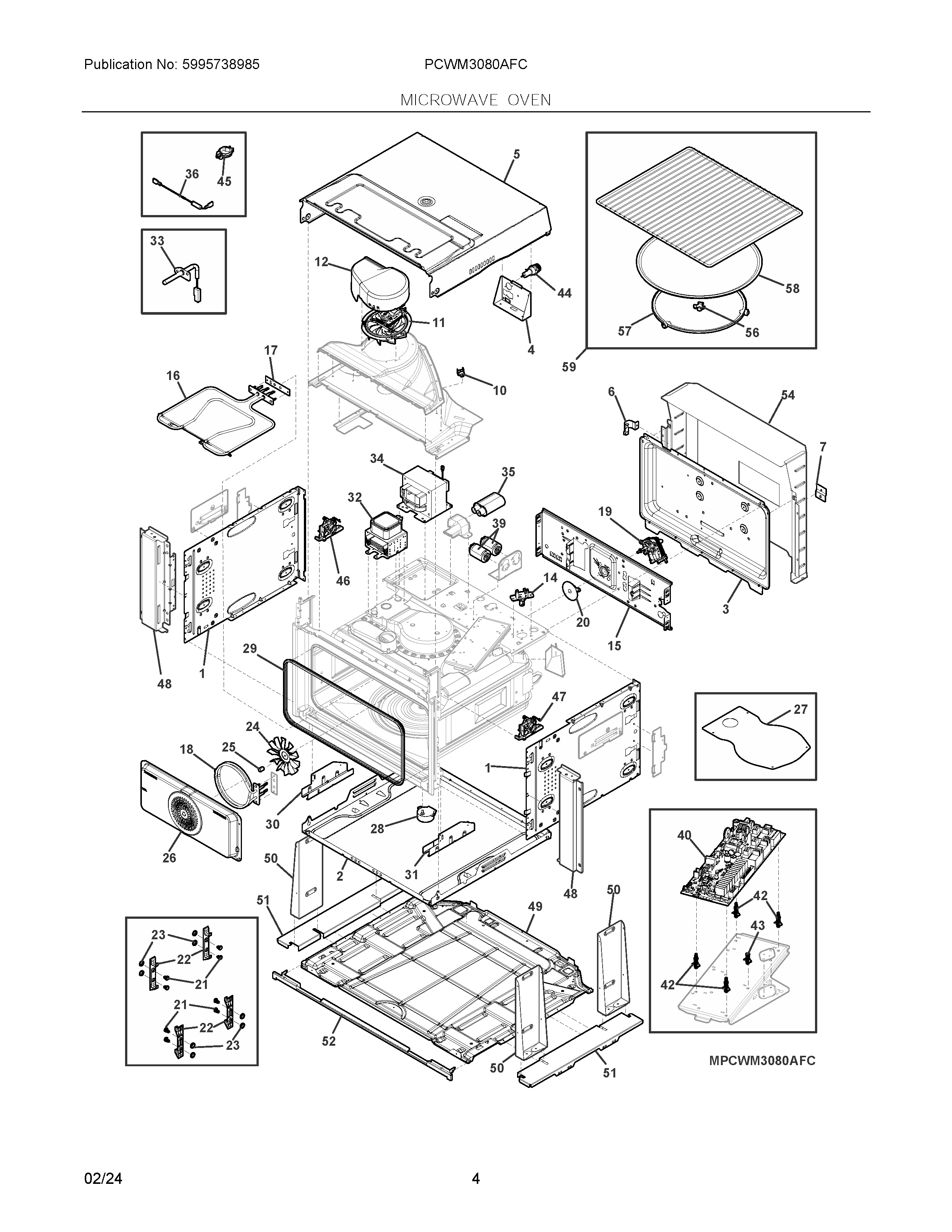

PCWM3080AFC 03 – MICROWAVE OVEN

Products

Position	Product
NIA	WCI 561344207
NI	405522329 Frigidaire Screw Kit
NI	WCI 349475501
NI	WCI 5029617300
NIA	555031101 Frigidaire Sensor
NIA	WCI 561045004
NI	387856311 Frigidaire Screw
NI	HARNESS
NI	5304530385 Frigidaire Harness
NI	A17118003 Frigidaire Harness
NI	A17118006 Frigidaire Harness
NI	A17118015 Frigidaire Harness
NI	A17118016 Frigidaire Harness
NI	A17118021 Frigidaire Harness
NIA	WCI 5304532068
NI	WCI 387872717
1	PANEL, SIDE
2	BASE, PLATE, BOTTOM
3	PANEL
4	SUPPORT, CONNECTION BOX
5	A05908717 Frigidaire Housing
6	BRACKET, LINK
7	BRACKET, CONDUIT MTG.
10	A01802605 Frigidaire Thermostat
11	A18653201 Frigidaire Cooling Fan
12	A13630003 Frigidaire Duct
14	LAMP ASSEMBLY, G9, 40W, 120V
15	MOUNTING PLATE, BACK
16	ELEMENT, HEATING, UPPER, GRILL
17	BRACKET, HEATING ELEMENT
18	A08933932 Frigidaire Element
19	555027103 Frigidaire Motor
20	SHIELD, CONVECTION FAN, CHOKE
21	808373901 Frigidaire Range Pin
22	A18262002 Frigidaire Range Support Assembly
23	A19949501 Frigidaire Range Washer
24	555023101 Frigidaire Fan Blade
25	561231207 Frigidaire Nut
26	COVER, CONVECTION FAN, BACK
27	COVER, MICA
28	A13805506 Frigidaire Motor
29	316517600 Frigidaire Oven Spacer
30	SUPPORT, LH HINGE
31	SUPPORT, RH HINGE
32	555030400 Frigidaire Magnetron
33	555044200 Frigidaire Sensor
34	555030502 Frigidaire Transformer
35	315795903 Frigidaire Capacitor Assembly
36	555042802 Frigidaire Diode
39	A20022801 Frigidaire Filter
40	A18493801 Frigidaire PC Board Assembly
42	CLIP, PC BOARD, (4)
43	CLIP, PC BOARD, FLAT TOP
44	318647300 Frigidaire Microwave Fuse and Holder
45	HOLDER, CABLE, ROUND
46	A23242801 Frigidaire Interlock
47	A23243301 Frigidaire Interlock Component
48	WCI 5304536558
49	PLATE-EXT BOTTOM SC DWO RAW
50	SUPPORT, SIDE
51	COVER
52	5304530376 Frigidaire Trim
54	WCI 5304534078
56	A15654501 Frigidaire Coupler
57	A13881201 Frigidaire Roller Assembly
58	A13804901 Frigidaire Tray
59	A18994801 Frigidaire Range Accessory Kit
