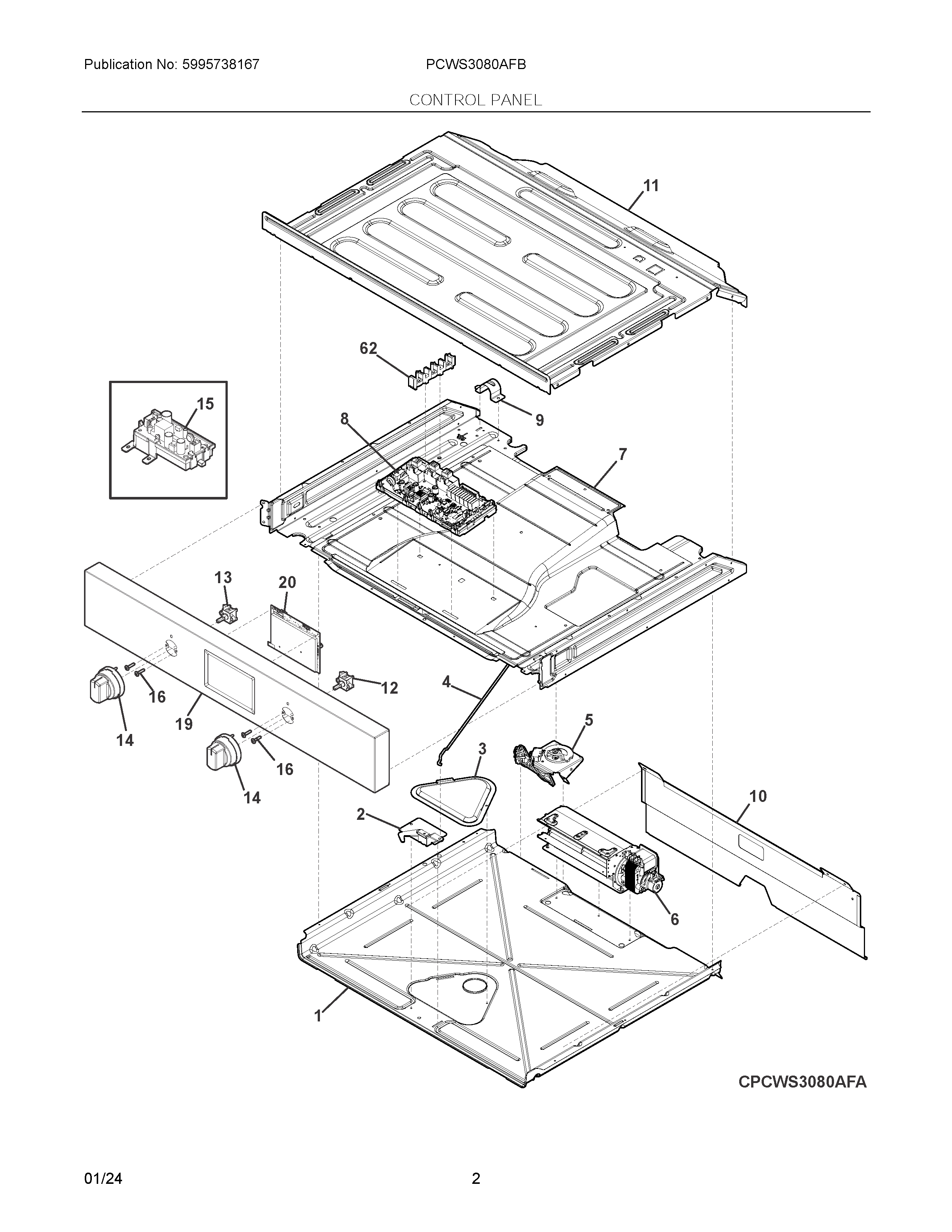

PCWS3080AFB 02 – CONTROL PANEL

PCWS3080AFB 02 – CONTROL PANEL

Written by

in

PCWS3080AFB 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NIHARNESS
NIHARNESS-BACKLIT KNOBS FPRO WO
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NIA316001017 Frigidaire Screw
NICWCI 5304528293
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304536397 Frigidaire Ovc M Wo Board
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
12POTENTIOMETER
13808843110 Frigidaire Potentiometer Assembly
14KNOB
155304534050 Frigidaire Pc Board
16WCI 387872717
195304532088 Frigidaire Control Panel
20CONTROL ELEC OVEN PRO SINGLE
625304535277 Frigidaire Terminal Block
