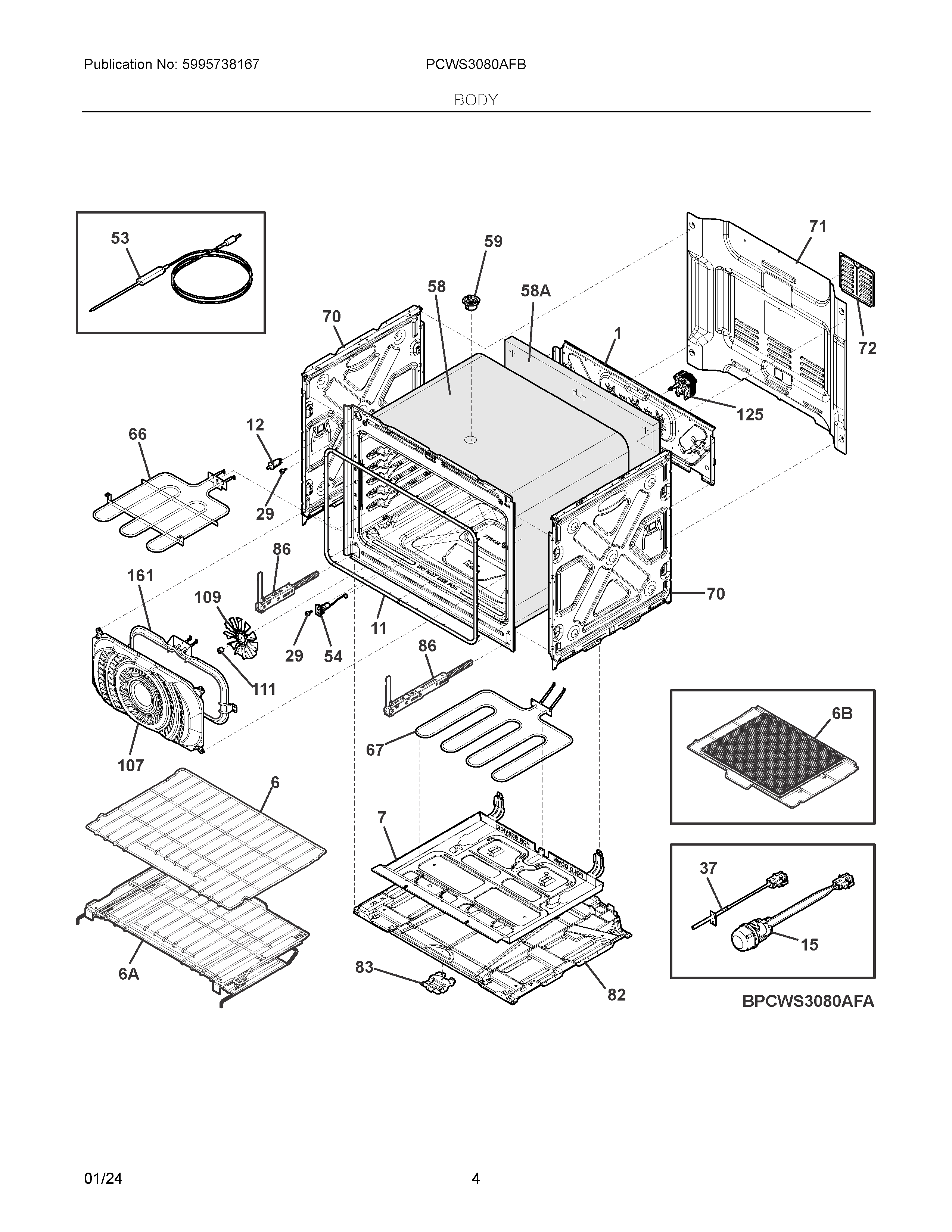

PCWS3080AFB 03 – BODY

PCWS3080AFB 03 – BODY

Written by

in

PCWS3080AFB 03 – BODY

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NI5304532099 Frigidaire Harness
NIA5304526234 Frigidaire Screw
NIB5304526532 Frigidaire Screw
NIAWCI 387872717
NICWCI 5304528293
NI5304533451 Frigidaire Harness
NIHARNESS, WIRING, UPPER OVEN, MAIN
NIA316001017 Frigidaire Screw
NI5304530450 Frigidaire Anti Tip
NIHARNESS, WIRING, UPPER OVEN, DS
1PANEL
45304526368 Frigidaire Rod Assembly
6RACK, HANDLED, FLAT
6ARACK ASSEMBLY, GLIDE
6BFRIG AIR FRY TRAY PEREGRINE
7TRAY, HIDDEN BAKE
8SHIELD, BOTTOM DUCT
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
145304526552 Frigidaire Motor Assembly
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
54RECEPTACLE, MEAT PROBE
58INSULATION, OVEN, WRAPPER
58AINSULATION, OVEN, REAR
59TUBE, VENT CATALYST
625304535277 Frigidaire Terminal Block
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526329 Frigidaire Shield
725304526588 Frigidaire Cover
82PLATE-EXT BOTTOM SC
83BRACKET, BASE PANEL, MOUNT
865304530348 Frigidaire Hinge
86A5304530349 Frigidaire Hinge
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
