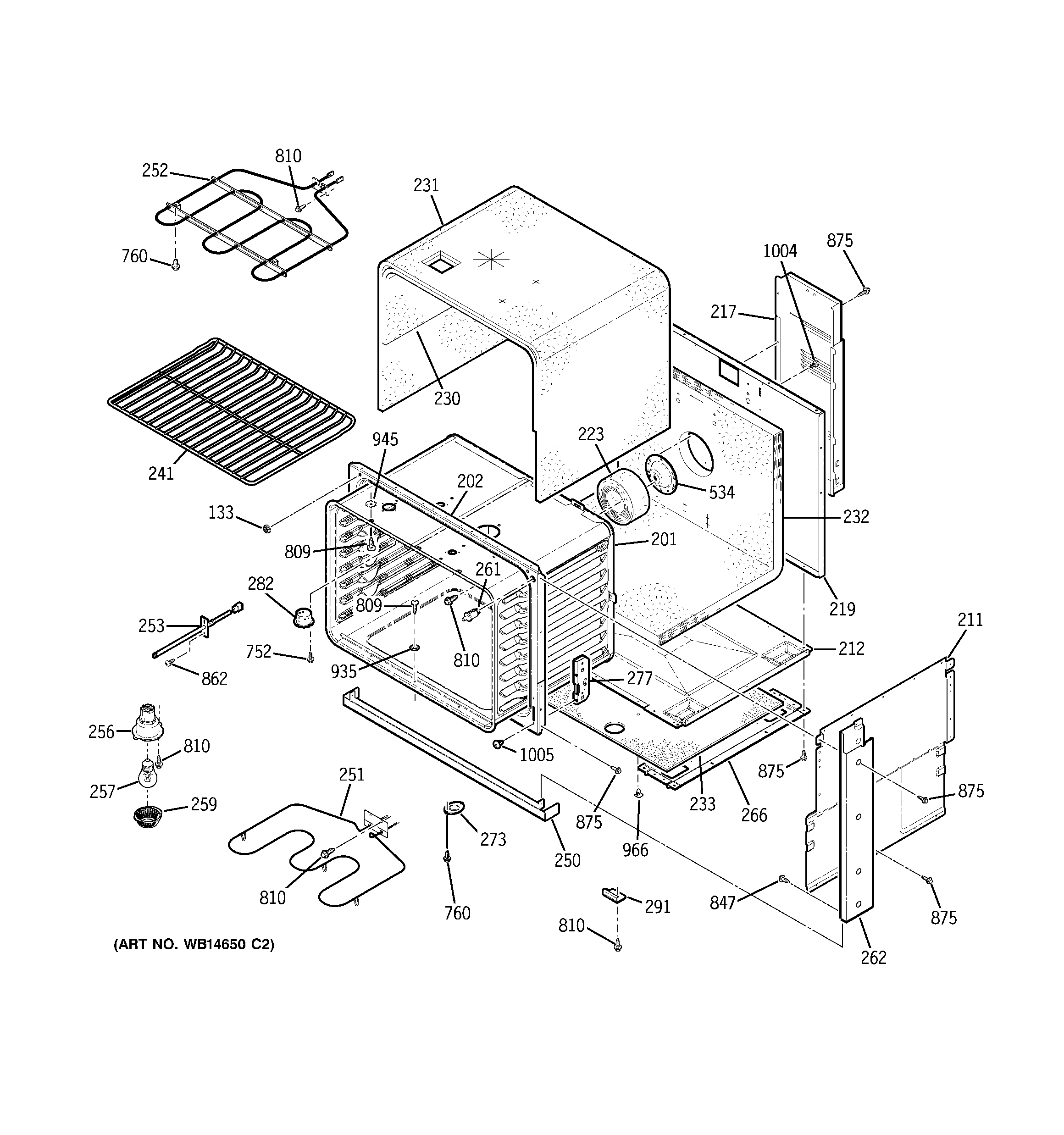

PD900DP2BB BODY PARTS

PD900DP2BB BODY PARTS

Written by

in

PD900DP2BB BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB34K10046
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
233GEN WB35K10024
241WB48T10095 GE Oven Rack
250WB07T10691 GE Lower Trim (Black)
250GEN WB07T10692
250GEN WB07T10693
251WB44T10065 GE Oven Bake Element
252BROIL ELEMENT
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10525 GE Trim Vertical Side Light
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10520 GE Right Side Trim (Black)
262WB07T10524 GE Right Side Trim Vertical (Bq)
266WB02K10048 GE Base Rail
273GEN WB02K5365
277GEN WB10T10083
282WB38X33650 GE Vent Tube
291GEN WB02X9152
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1M1 GE Oven Screw
847WB1K5167 GE Screw 8-18 X 3/8"
862GEN WB01X1178
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
