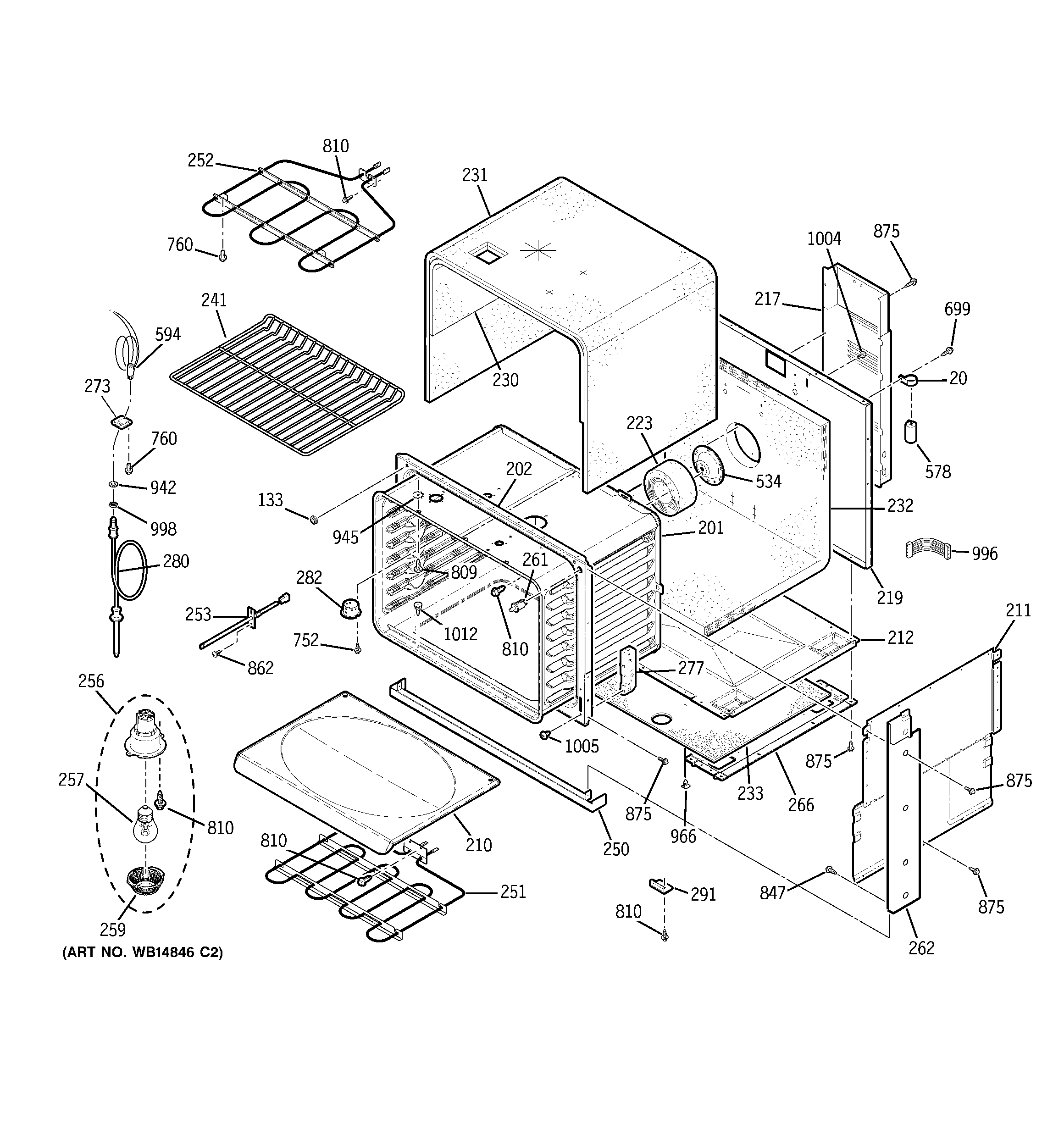

PD968DP3BB BODY PARTS

PD968DP3BB BODY PARTS

Written by

in

PD968DP3BB BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10022 GE Oven Door Bumper
201WB63T10149 GE Oven Cavity Wrapper Assembly
202WB63T10083 GE Front Lower Frame
210WB63T10034 GE Oven Bottom
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB34K10046
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
233GEN WB35K10024
241WB48T10059 GE Oven Rack
250WB07T10691 GE Lower Trim (Black)
250GEN WB07T10693
251BAKE ELEMENT
252BROIL ELEMENT
253WB23T10015 GE Oven Sensor Probe
257WB49X29679 GE Range Halogen Bulb Kit
259WB25T10027 GE Oven Lens Lamp
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
262WB07T10520 GE Right Side Trim (Black)
266WB02K10048 GE Base Rail
273GEN WB02X8309
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB38X33650 GE Vent Tube
291GEN WB02X9152
534WB26T10015 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
594RECEPTACLE JACK
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
847WB1X500D GE Oven Screw Package
862GEN WB01X1178
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
996GEN WB18T10528
998WB1X5572 GE Oven Nut
1004WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
