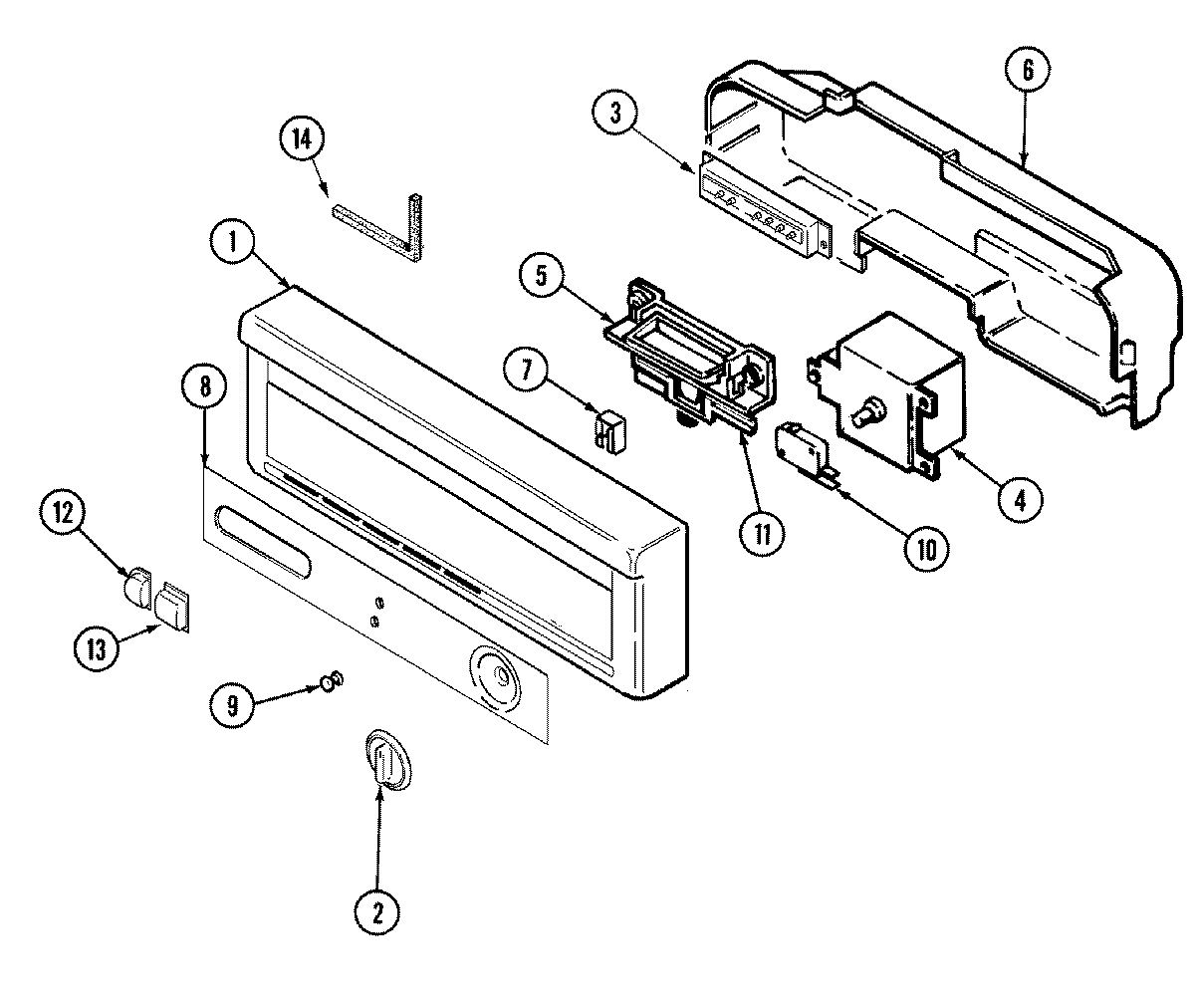

PDB3600AWX 01 – CONTROL PANEL

Products

PositionProduct
1MAY 99001591
1MAY 99002559
2MAY 99001872
3MAY 99001611
4MAY 99002431
5SCREW, No.8X1/2 HEX WASHER HEAD
5WP99002240 Whirlpool Dishwasher Bracket
6MAY 99001588
7WP903115 Whirlpool Dishwasher Indicator Light
8MAY 99002438
9MAY Y912696
10WP99002207 Whirlpool Dishwasher Door Switch
11W10834433 Whirlpool Dishwasher Handle
12MAY 99001491
13MAY 99001493
14MAY Y913116
14MAY Y913177
15MAY 99002495
15MAY 99002429
16MAY 99002394
17MAY 16010622
