PDBL390AWZ 02 – DOOR

PDBL390AWZ 02 – DOOR

Written by

in

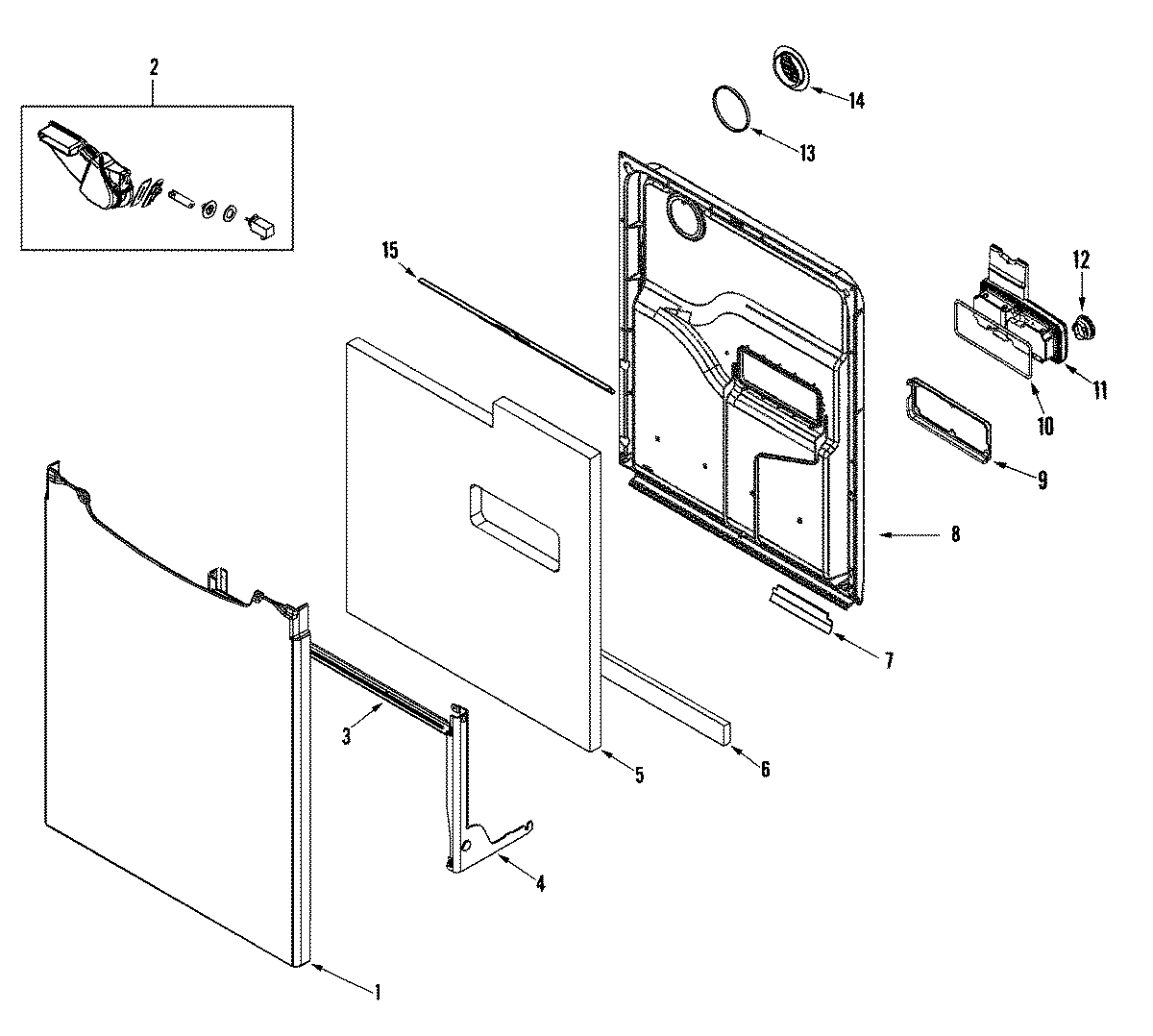

PDBL390AWZ 02 – DOOR

Products

PositionProduct
1PANEL, DECO (SILVER)
2VENT HOUSING ASSEMBLY
3WPW10118637 Whirlpool Dishwasher Bracket
3MAY 99002929
4INSULATION, DOOR
5WPW10117748 Whirlpool Dishwasher Insulation Pad
6MAY 99003424
6DOOR LINER, SECONDARY
6MAY 99003541
6MAY 99003482
6Foam Strip(Long)
7SCREW, No.8X1/2 HEX WASHER HEAD
76-918900 Whirlpool Dishwasher Bracket
8MAY 99002270
9DETERGENT/RINSE AID DISPENSER
10KNOB, RINSE AID (W/O-RING)
11MAY 99002186
1299002590 Whirlpool Dishwasher Door Vent Bezel
13MAY 99002586
13WPY912620 Whirlpool Dishwasher Screw
