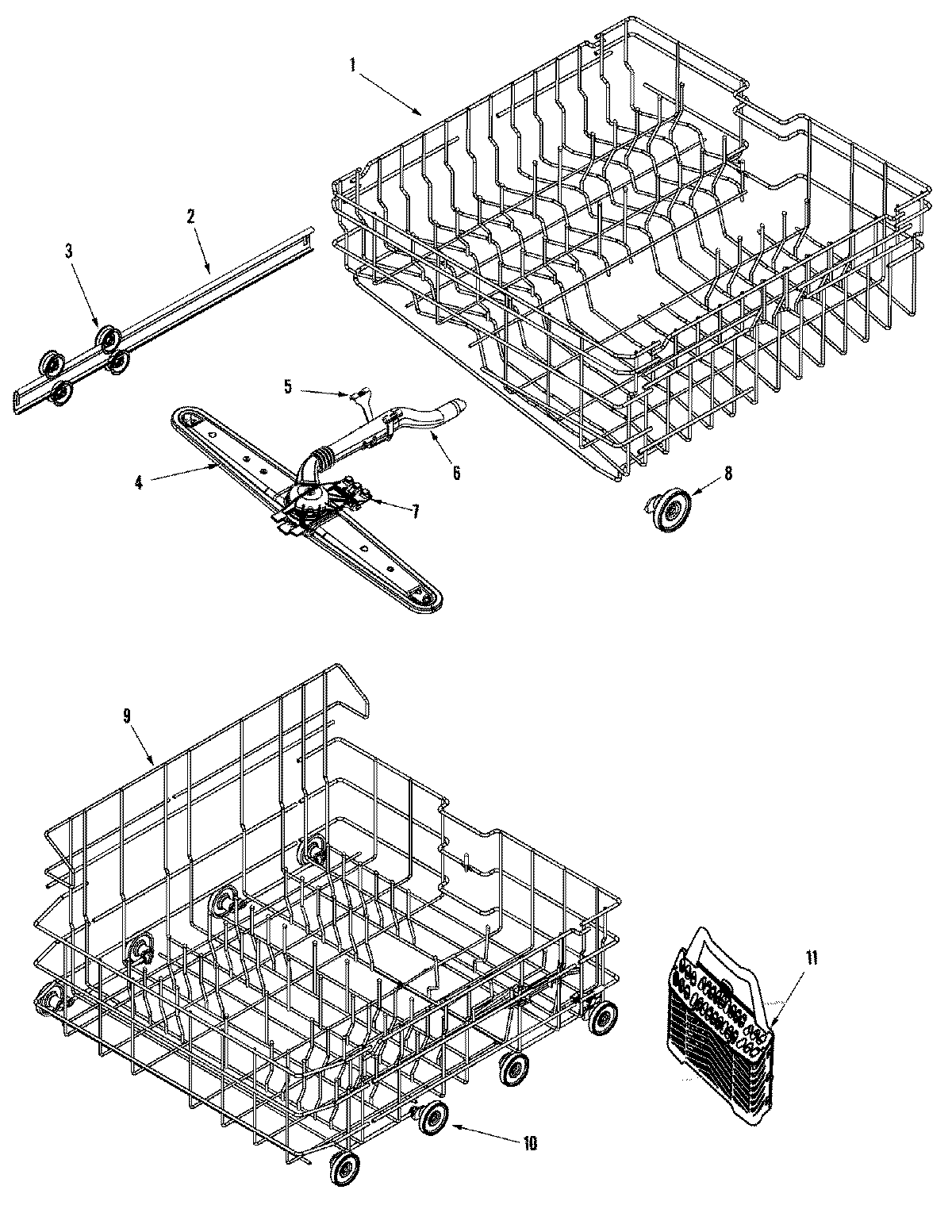

PDBL390AWZ 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002993
2	WPW10261227 Whirlpool Dishwasher Stop Assembly
2	TRACK, RACK
3	WP99002947 Whirlpool Tub Wheel
3	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4	WP99003070 Whirlpool Dishwasher Wash Arm
4	SCREW, TRUSS HEAD (10-18X.75)
5	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6	WASH MANIFOLD ASSY (UPR)
7	CLIP, UPR WASH MANIFOLD (FRT)
8	WP99002781 Whirlpool Dishwasher Wheel
9	MAY 99002017
9	MAY 99003469
10	WP99002780 Whirlpool Lower Wheel Assembly
11	MAY 99003429
