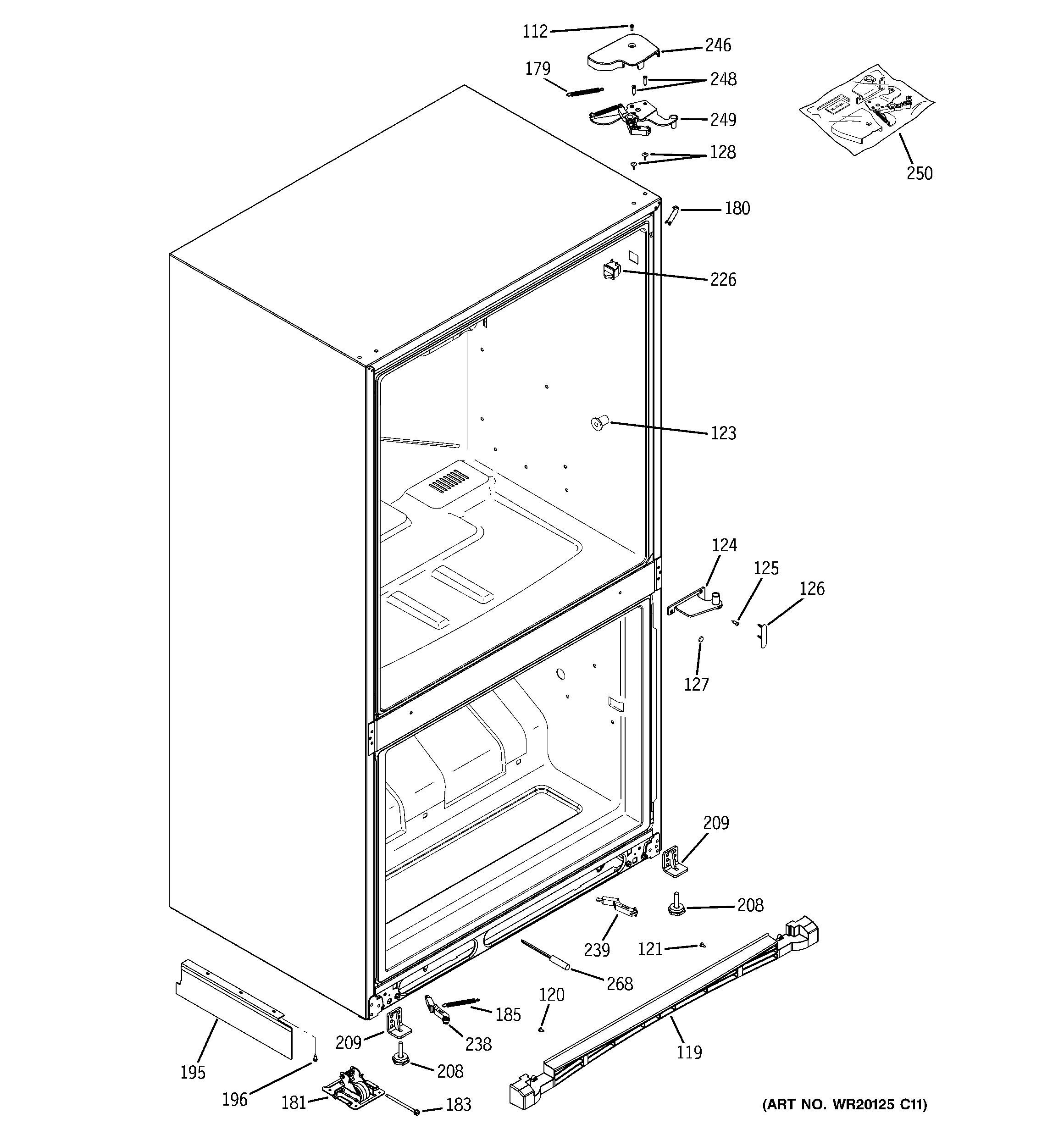

PDCE1NBWBDBB CASE PARTS

PDCE1NBWBDBB CASE PARTS

Written by

in

PDCE1NBWBDBB CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119WR02X12380 GE Refrigerator Base Grille Cover
119GEN WR02X12414
120WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
121WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
123WR02X12187 GE Refrigerator Support Shelf
124WR13X10436 GE Center Full Hin Assembly Rh
124GEN WR13X10426
125WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
126GEN WR02X12421
126GEN WR02X12381
127SCREW COVER BK
127SCREW COVER WH
128WR02X21195 GE Refrigerator Door Reversal Plug
128WR01X21159 GE Button Plug
179WR01X10827 GE Refrigerator Closure Spring
180WR02X10781 GE Refrigerator Corner Cap Black
180WR02X10640 GE Refrigerator White Cap Corner OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
185WR1X2027 GE Refrigerator Spring Closure
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
238GEN WR11X10018
238WR11X10016 GE Refrigerator Lever Arm Closure Assembly
239GEN WR11X10019
239WR11X10017 GE Refrigerator Lever Arm Closure Assembly
246GEN WR02X12388
246GEN WR02X12415
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249WR13X10434 GE Refrigerator Hinge Closure Assembly
249GEN WR13X10427
250WR49X10178 GE Refrigerator Hinge Change Kit
250GEN WR49X10177
268WR55X10025 GE Refrigerator Temperature Sensor
