PDCE1NBYADSS FREEZER SECTION

PDCE1NBYADSS FREEZER SECTION

Written by

in

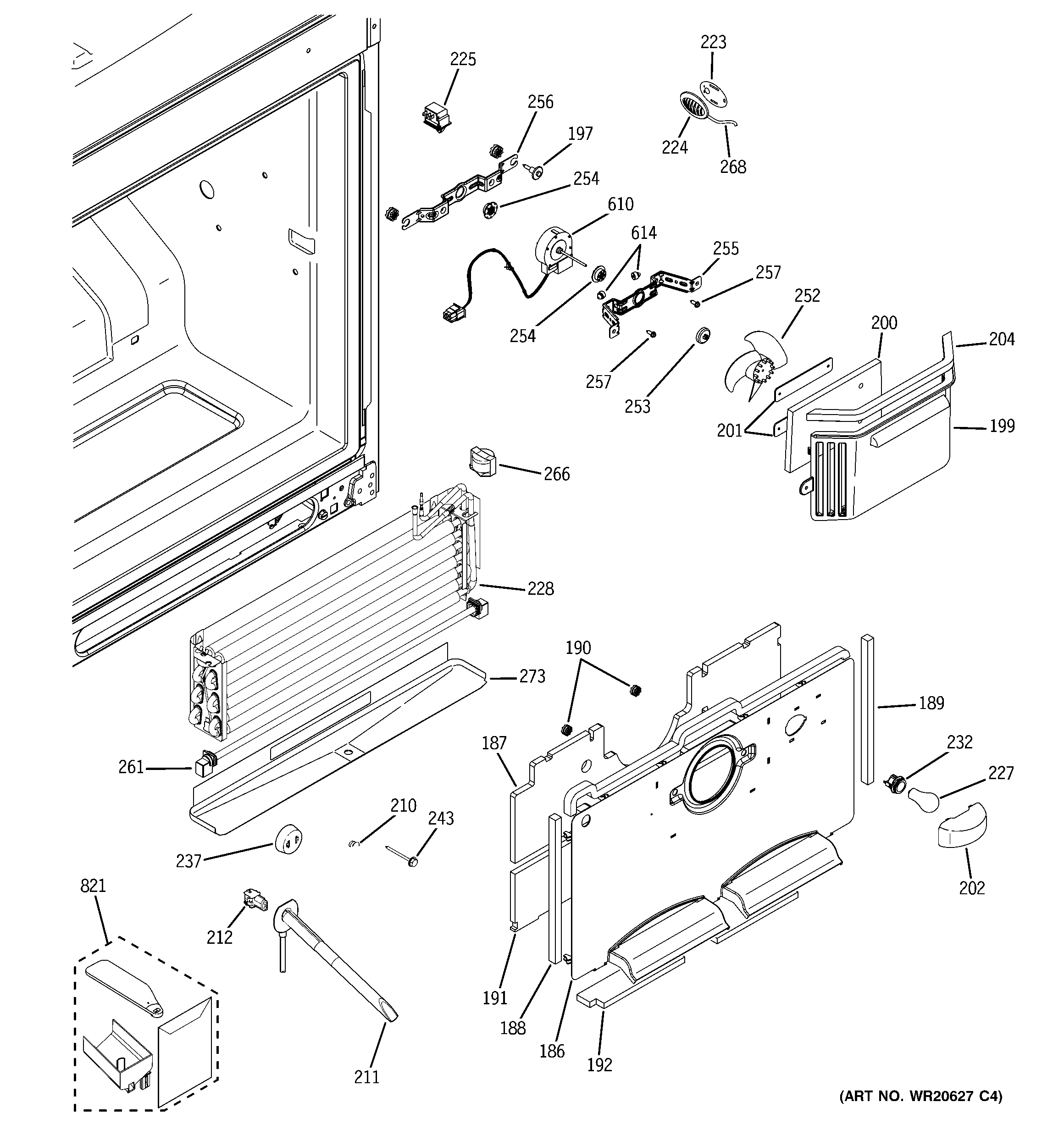

PDCE1NBYADSS FREEZER SECTION

Products

PositionProduct
186GEN WR17X12675
187GEN WR14X10302
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191INSULATION COVER EVAP
192GEN WR14X10224
197WR01X10685 GE Scraper 8-18 Assembly
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
202GEN WR02X11568
204WR14X10223 GE Adhesive Foam Strip
211GROMMET AND TUBE ASM
212GEN WR02X13187
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227WR02X12207 GE Refrigerator Net Bulb Light
228LOW SIDE ASM
232WR2X9014 GE Refrigerator Socket & Terminal C02
237WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X10322 GE Refrigerator Dust Cap B02
254WR02X12008 GE Refrigerator Evaporator Fan Grommet
255WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
256WR17X12270 GE Rear Evaporator Fan Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12303 GE Refrigerator Drain Trough Tube
610WR60X10185 GE Refrigerator Evaporator Fan Motor
614BUMPER
821GEN WR49X10171
