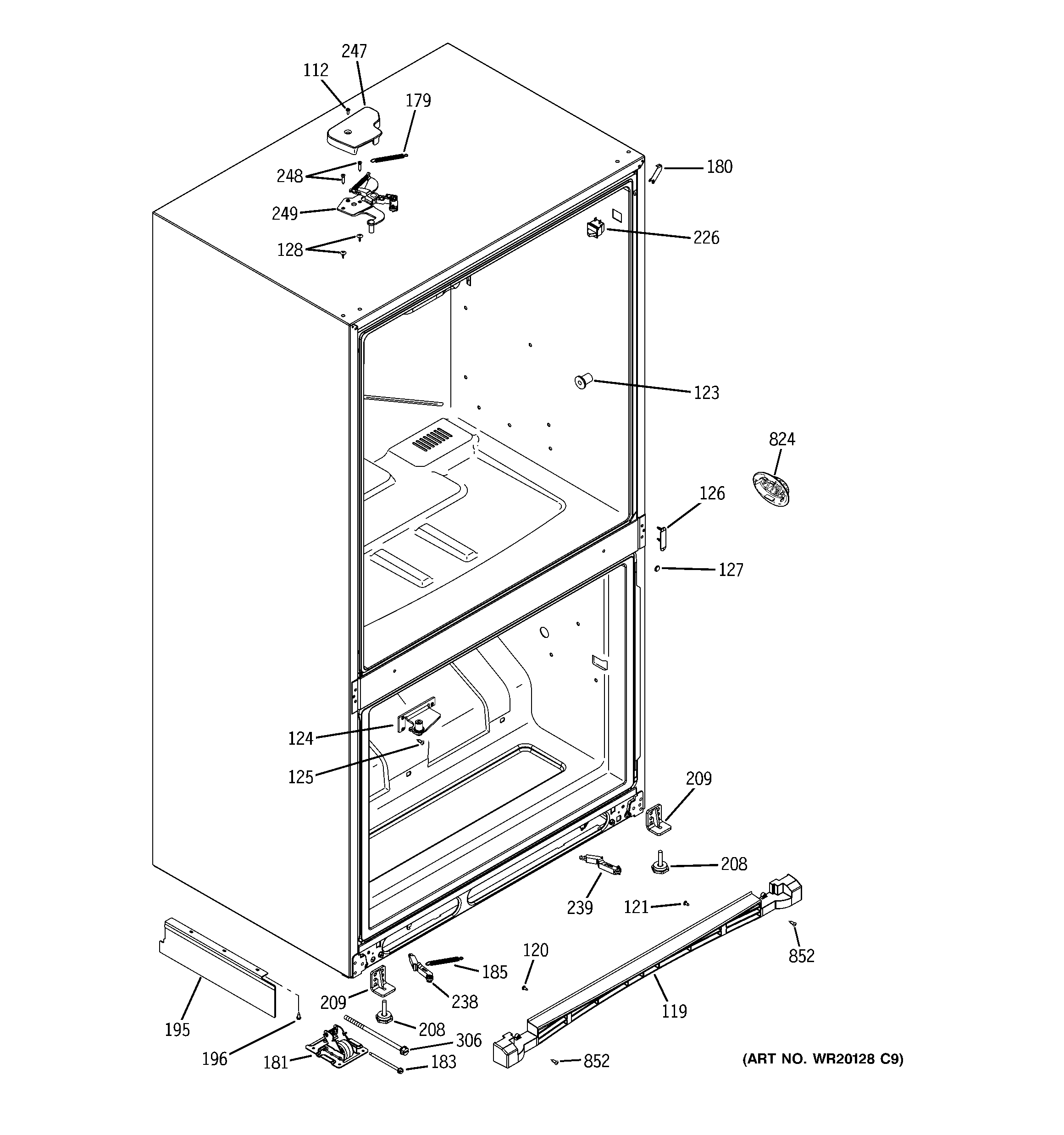

PDCE1NBYCJSS CASE PARTS

PDCE1NBYCJSS CASE PARTS

Written by

in

PDCE1NBYCJSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
120WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10581
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126GEN WR02X12381
127SCREW COVER BK
128WR02X13048 GE Plug Cover
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
185WR1X2027 GE Refrigerator Spring Closure
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
238WR11X10017 GE Refrigerator Lever Arm Closure Assembly
239WR11X10016 GE Refrigerator Lever Arm Closure Assembly
247GEN WR02X12706
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249GEN WR13X10565
306WR02X12271 GE Refrigerator Mobility Screw
824WR02X13224 GE Refrigerator Grille Sensor
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
