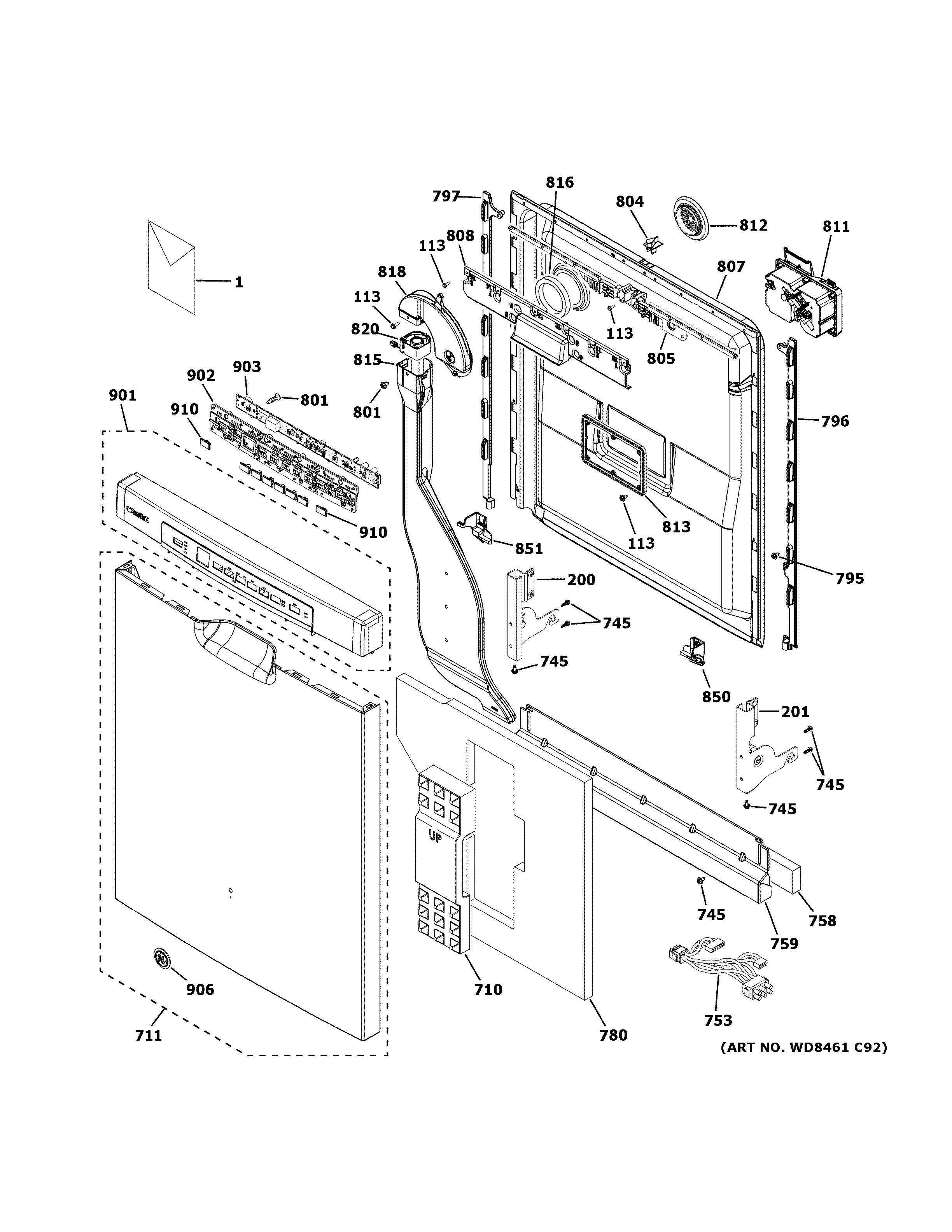

PDF820SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

PDF820SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDF820SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM MINI-MANUAL
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25752 GE Dishwasher Stainless Outer Door Service
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X21664 GE Dishwasher Wire Harness
758WD27X21334 GE Insulation
759TOE KICK
780WD30X25140 GE Dishwasher Inner Door Insulation
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23557 GE Dishwasher Transition Piece Assembly
820WD24X20256 GE Dishwasher Vent Fan Assembly
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
901WD34X22869 GE Dishwasher Control Panel Assembly Stainless Steel
902WD12X22778 GE Dishwasher Silicone Light Pipe
903CONFIGURED UI BOARD
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
910WD09X21689 GE Dishwasher Painted Button Tree
