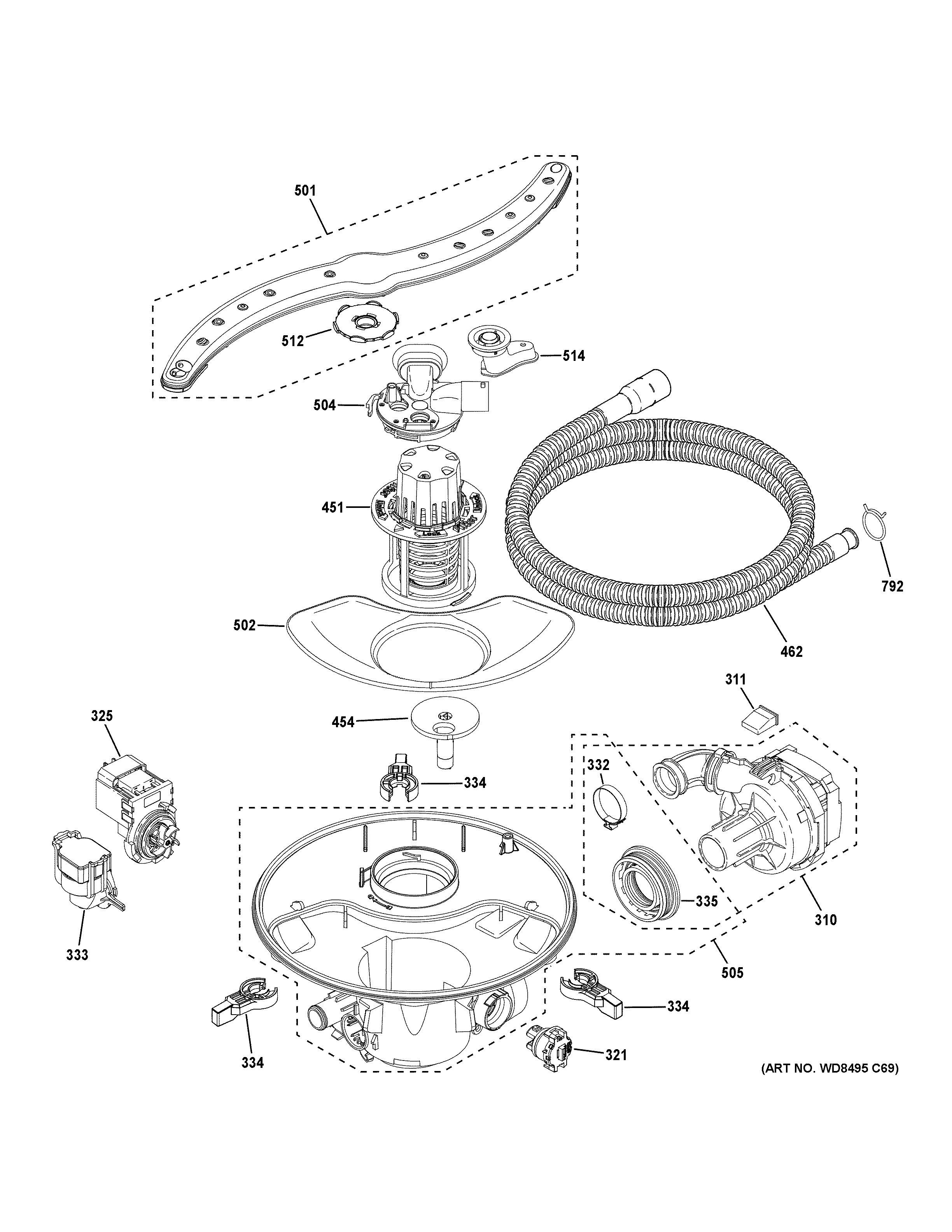

PDP715SYV1FS MOTOR, SUMP & FILTER ASSEMBLY

PDP715SYV1FS MOTOR, SUMP & FILTER ASSEMBLY

Written by

in

PDP715SYV1FS MOTOR, SUMP & FILTER ASSEMBLY

Products

PositionProduct
310WD19X32518 GE Wash Pump Kit
311WD02X28359 GE Dishwasher Pump Isolator Hanger
321WD21X29818 GE Dishwasher Turbidity Sensor
325DRAIN PUMP ASM
332HOSE CLAMP
333PRESSURE SENSOR ASM
334WD01X28338 GE Dishwasher Sump Latch
335WD08X27458 GE Seal
451WD22X29042 GE Dishwasher User Cleanable Fine Filter
454WD19X33099 GE Diverter Disc and Magnet
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502COARSE FILTER
504WD19X33098 GE Diverter and Stem Four Port Assembly
505WD19X28199 GE Dishwasher Sump Overmold and Gasket
512SPRAY ARM HUB
514WD12X25864 GE Dishwasher S Arm Adapter
792WD01X10104 GE Dishwasher Hose Clamp
