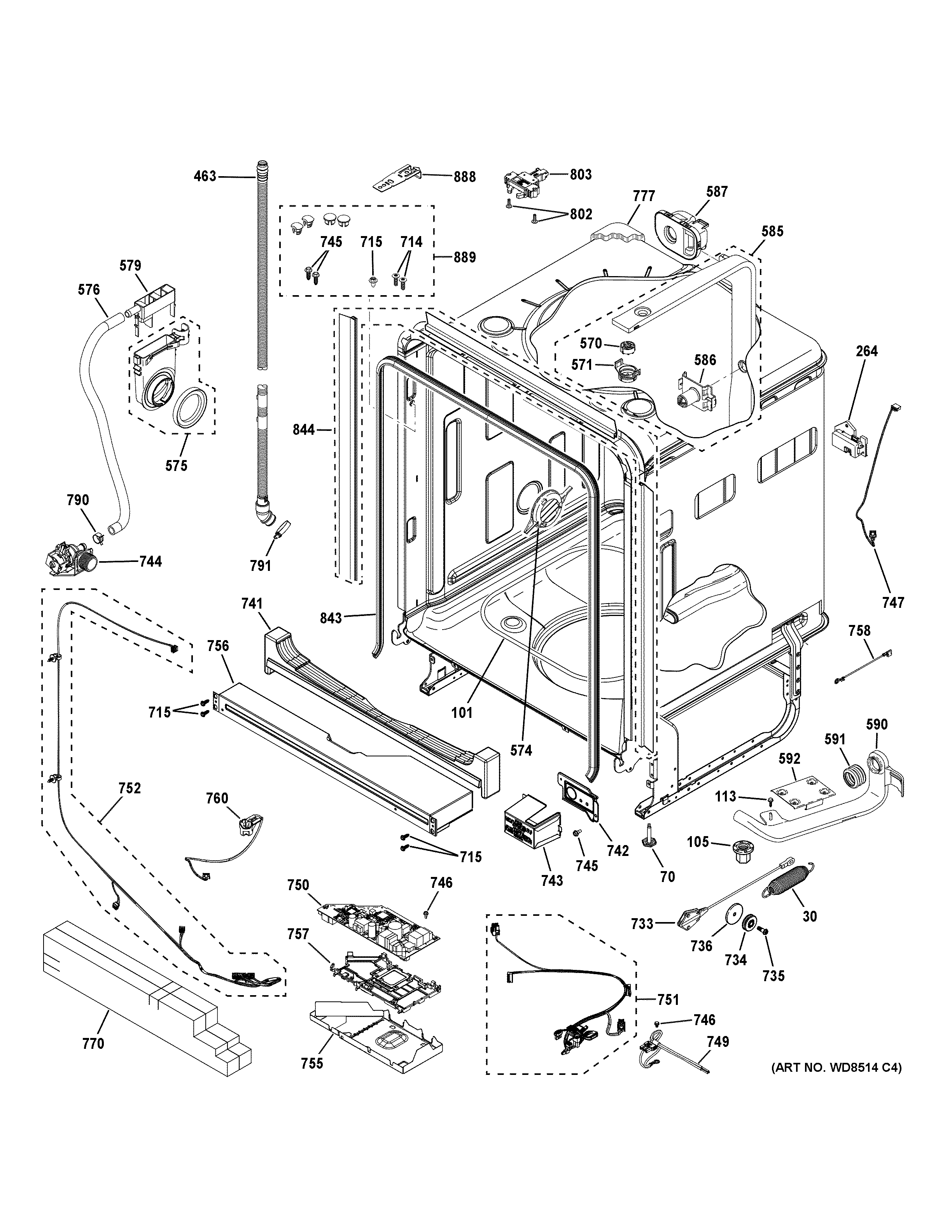

PDP755SBV1TS BODY PARTS (1)

PDP755SBV1TS BODY PARTS (1)

Written by

in

PDP755SBV1TS BODY PARTS (1)

Products

PositionProduct
30SPRING DOOR
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
105WD01X10070 GE Dishwasher Nut
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
264WD21X31758 GE Dishwasher Wifi with Bluetooth Module
463HIGH LOOP DRAIN HOSE
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
574WATER INLET NUT
575FILL FUNNEL AND GASKET
576WD24X27660 GE Dishwasher Fill Funnel Hose
579WD12X25080 GE Dishwasher Fill Funnel Cap
585WD12X34178 GE Conduit Main
586DOCKING PORT
587WD12X34180 GE Third Rack Manifold Docking Po
590WD12X25602 GE Dishwasher Silverware Basket Conduit
591WD01X22866 GE Dishwasher Silverware Bellow
592WD01X25838 GE Heat Shield
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X30378 GE Dishwasher Pulley Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
741WD01X23558 GE Dishwasher Front Tub Spacer
742JUNCTION BOX BRACKET
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
746WZ5X158D GE Screw Package of 12
747WI-FI BOARD HARNESS
749WD21X26318 GE Dishwasher Jumper Harness
750CONFIGURED MACHINE CONTROL BD
751WD21X32678 GE AC Harness
752WD21X31502 GE Dishwasher DC Harness
755WD30X31504 GE Control Box Bottom
756WD27X32298 GE Control Box Assembly Top
757WD12X31503 GE Control Box Spacer and Silpad
758WD21X31520 GE Ground Harness
760WD21X31662 GE Dishwasher Diverter Harness
770WD30X25631 GE Dishwasher Insulation Bag
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WD02X27754 GE Screw 3/4" Stainless 8-18 Ab Pnp
803DOOR LATCH
843WD08X22095 GE Dishwasher Tub Gasket
844WD01X32842 GE Tub Trim Kit
888WD01X27759 GE Mounting Bracket
889WD02X33379 GE Countertop Plug and Screw Set
