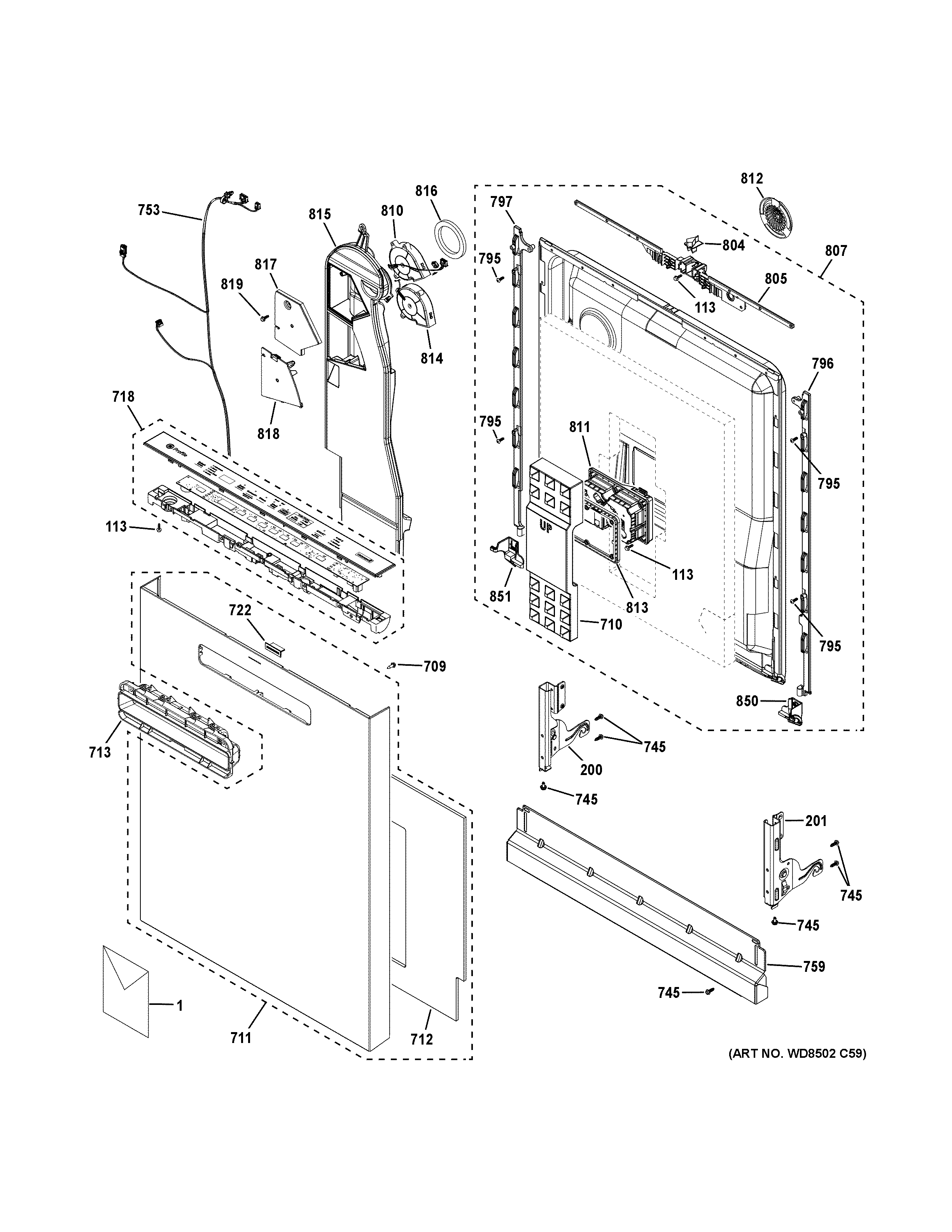

PDP755SBV1TS ESCUTCHEON & DOOR ASSEMBLY

PDP755SBV1TS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDP755SBV1TS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM ATTENTION INSTALLER
1PM OWNERS AND INSTALL
1PM ATTENTION INSTALLER
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
709WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
710WD01X29918 GE Door Foam Block
711BLACK STAINLESS OUTER DOOR PANEL
712OUTER DOOR INSULATION
713POCKET HANDLE
718CONFIGURED UI CONTROL WITH COV
722DOOR LENS
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807INNER DOOR
810WET DOOR FAN AND HARNESS
811DETERGENT MODULE
812VENT COVER
813WD12X10462 GE Dishwasher Detergent Plate
814DRY DOOR FAN AND HARNESS
815DOOR VENT CONDUIT
816DOOR VENT SEAL
817WET DOOR FAN COVER
818DRY DOOR FAN COVER
819WD01X27719 GE Screw PL HXW 8-18 1/2
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
