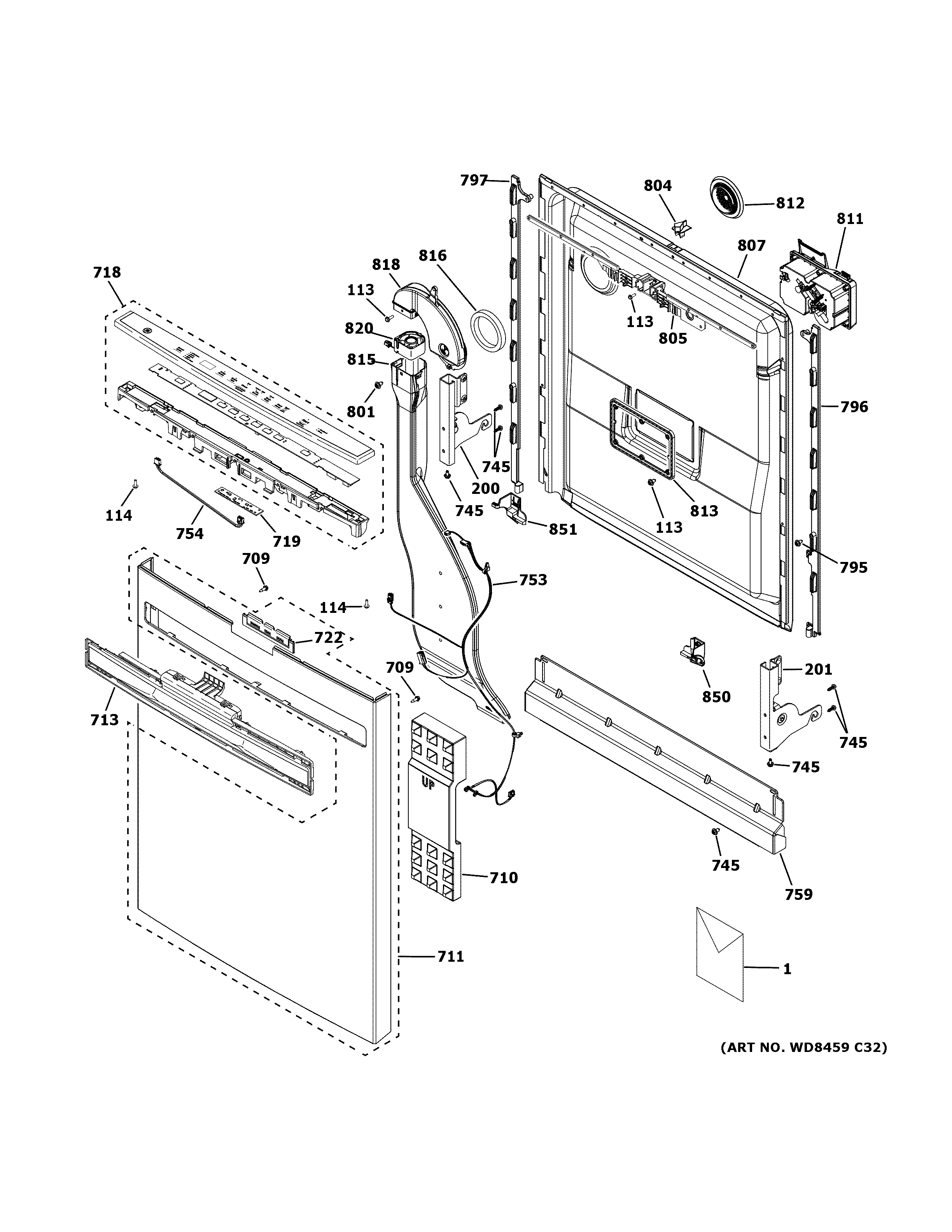

PDP755SYR4FS ESCUTCHEON & DOOR ASSEMBLY

PDP755SYR4FS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDP755SYR4FS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
1PM MINI MANUAL AND WIRING
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
114WR01X10196 GE Refrigerator Screw 8-18 HID02
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
709WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25760 GE Dishwasher Outer Door Assembly Service
713POCKET HANDLE
718WD21X31099 GE Dishwasher Configured Top UI Control WI
719WD21X25396 GE Dishwasher LED Display Profile
722WD01X26019 GE Dishwasher Lens and Adhesive Assembly
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X25474 GE Dishwasher Door Harness Assembly
754WD21X26338 GE Dishwasher LED Harness Board
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
811DETERGENT MODULE
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23557 GE Dishwasher Transition Piece Assembly
820WD24X25325 GE Dishwasher Fan Vent Assembly
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
