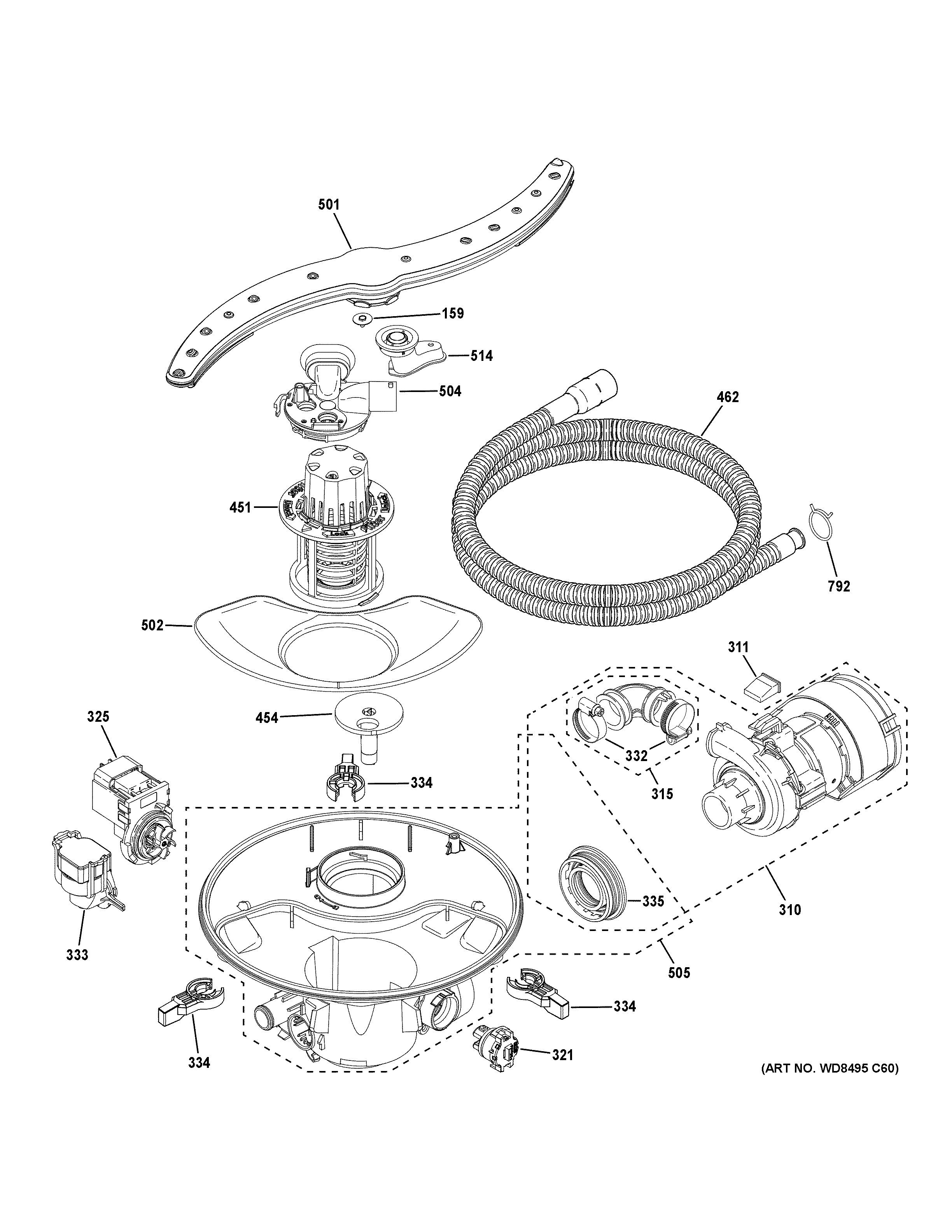

PDP755SYR5FS MOTOR, SUMP & FILTER ASSEMBLY

PDP755SYR5FS MOTOR, SUMP & FILTER ASSEMBLY

Written by

in

PDP755SYR5FS MOTOR, SUMP & FILTER ASSEMBLY

Products

PositionProduct
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
310WD19X25700 GE Dishwasher Circulation Pump
311WD02X28798 GE Dishwasher Pump Isolator Hanger
315ELBOW HOSE AND CLAMPS KIT
321DISHWASHER SENSOR
325DRAIN PUMP ASM
332HOSE CLAMP
333PRESSURE SENSOR ASM
334WD01X28338 GE Dishwasher Sump Latch
335WD08X27458 GE Seal
451WD22X29042 GE Dishwasher User Cleanable Fine Filter
454FOUR PORT DIVERTER & PLUG
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502COARSE FILTER
505WD19X28199 GE Dishwasher Sump Overmold and Gasket
514WD12X25864 GE Dishwasher S Arm Adapter
792WD01X10104 GE Dishwasher Hose Clamp
