PDS20MBWBWW CABINET

PDS20MBWBWW CABINET

Written by

in

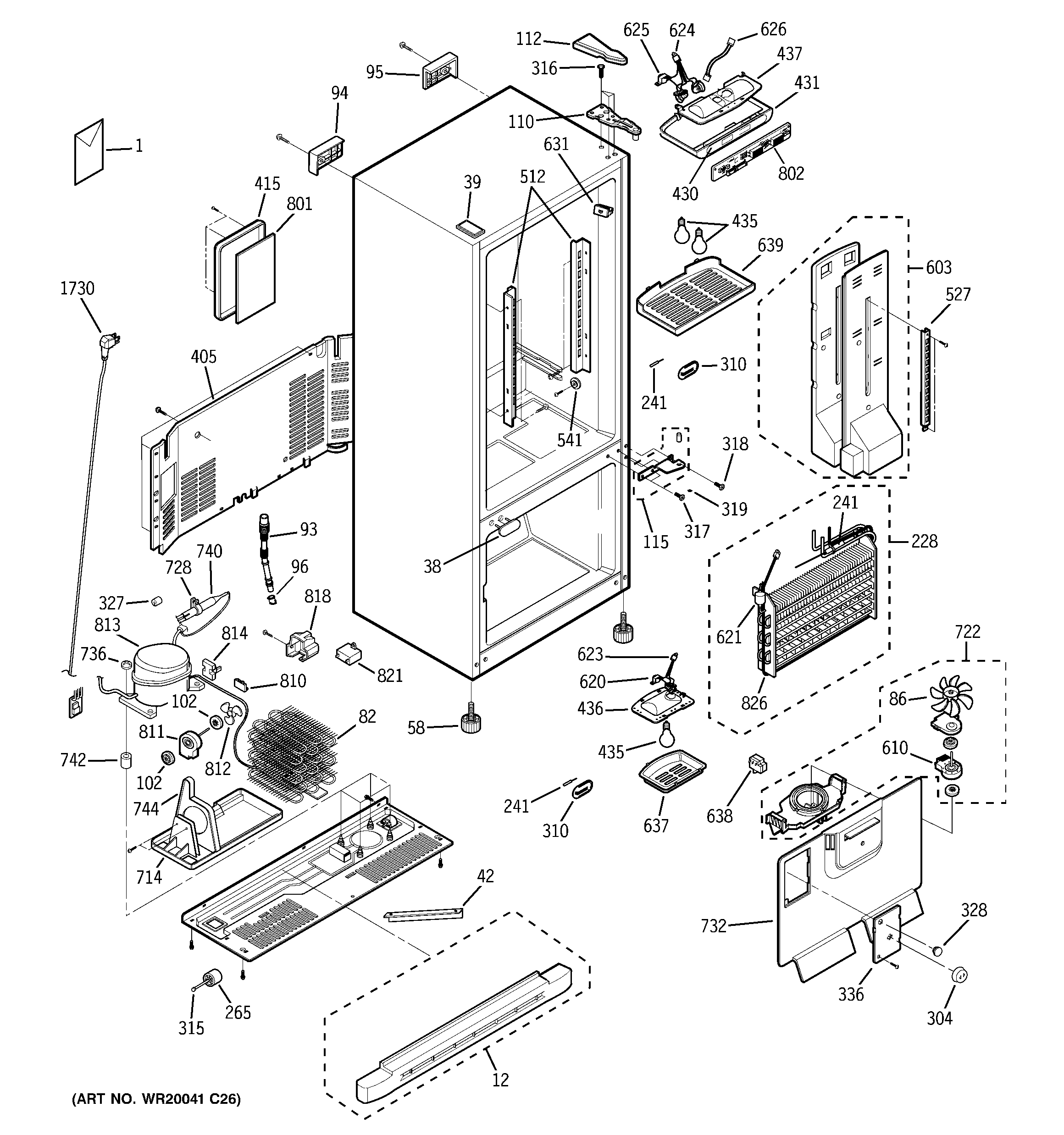

PDS20MBWBWW CABINET

Products

Position	Product
1	GEN 31-51726
12	COVER ASM,LOWER
12	GEN WR74X10202
38	CAP,HINGE(C) BK
38	CAP,HINGE(C)
39	CAP,HINGE(U) BK
39	GEN WR02X11721
42	GEN WR02X12064
58	GEN WR02X12262
82	GEN WR84X10060
86	EVAP FAN BLADE
93	GEN WR02X11697
94	SUPPORT CAB RIGHT BB
94	GEN WR02X12141
95	SUPPORT CAB LEFT
95	GEN WR02X12140
96	GEN WR02X12074
102	GEN WR02X11694
110	HINGE ASM UPPER
112	GEN WR02X11719
112	COVER,HINGE(U) BK
115	HINGE ASM CENTER
115	HINGE/PIN ASM WH CENTR
228	GEN WR85X10058
241	WR55X10025 GE Refrigerator Temperature Sensor
265	GEN WR02X11698
304	GEN WR02X11318
310	COVER THERMISTOR
315	GEN 4J04238A
315	GEN WR02X11741
316	GEN WR01X10524
317	HINGE CNTR BOLT BK
317	GEN WR01X10472
318	GEN WR01X10477
318	GEN WR01X10473
319	GEN WR01X10471
327	GEN 4J04328A
328	GEN WR02X11668
336	GEN WR02X11669
405	GEN WR17X11603
415	GEN WR02X12269
430	GEN WR17X11975
431	GEN WR17X11973
435	RANGE ONLY 40W 120V APPL BULB
436	GEN WR02X11656
437	REFLECTOR,LAMP FF
512	HOLDER SHELF
527	HOLDER SHELF
541	GEN WR02X11683
603	GEN WR09X10114
610	WR60X10196 GE Refrigerator Fan Motor Assembly
620	GEN WR50X10044
621	GEN WR50X10047
623	SOCKET ASM,LAMP FZ
624	SOCKET ASM,LAMP FF
625	GEN WR50X10050
626	GEN WR23X10430
631	GEN WR23X10429
637	GEN WR02X11658
638	FREEZER LIGHT SWITCH
639	GEN WR02X12066
714	GEN WR30X10048
722	GEN WR60X10146
728	GEN WR02X11702
732	GEN WR17X11602
736	GEN WR02X11306
740	WR86X25269 GE Refrigerator R134 Dryer
742	GEN WR02X11787
744	GEN WR17X11583
801	WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802	WR55X10522 GE Refrigerator Display Assembly Printed Wiring Board
810	OVERLOAD
811	WR84X10055 GE Refrigerator Condenser Fan Motor
812	CONDENSER FAN BLADE
813	WR87X20798 GE Refrigerator High Side Assembly
814	WR07X10086 GE Refrigerator PTC Relay C03
818	GEN WR02X11786
821	WR55X24064 GE Refrigerator Run Capacitor
826	GEN WR50X10043
1730	WR23X10300 GE Refrigerator Power Cord Assembly
