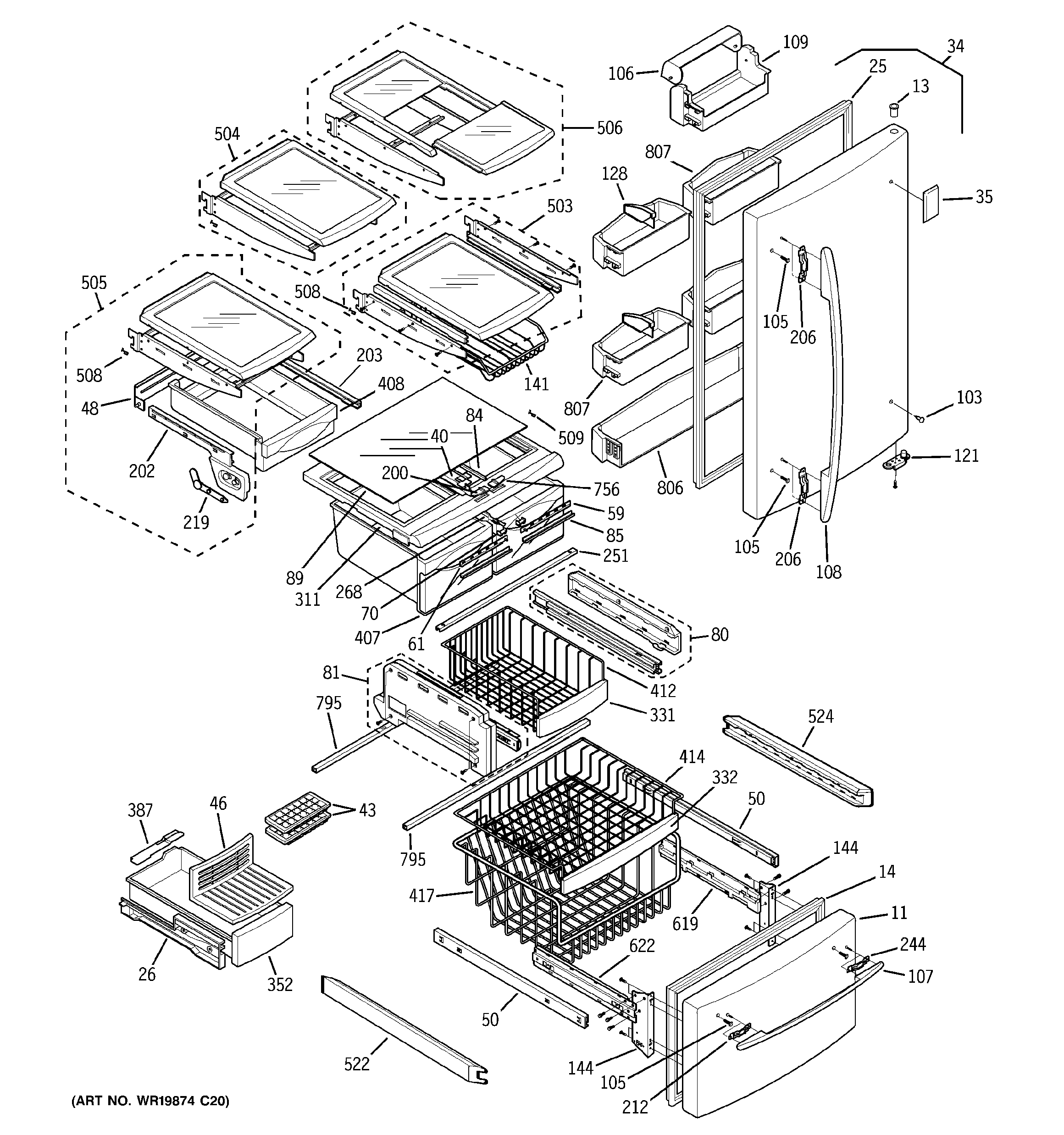

PDS22MBSACC DOORS & SHELVES

PDS22MBSACC DOORS & SHELVES

Written by

in

PDS22MBSACC DOORS & SHELVES

Products

Position	Product
11	DOOR FOAM ASM,FZR
13	BUSH
14	GASKET ASSEMBLY,F
25	GASKET ASSEMBLY,R
26	GUIDE RAIL(ICE)BIN
34	GEN WR78X11392
35	GEN WR04X10138
40	GEN WR02X11684
43	GEN WR30X10049
46	GEN WR30X10050
48	GEN WR17X11584
50	GEN WR17X11931
59	LINK,HUMIDITY LEFT
61	LINK,HUMIDITY RIGHT
70	RAIL SLIDE CENTER
80	RAIL SLIDE ASM RH
81	RAIL SLIDE ASM LH
84	GEN WR14X10176
85	GEN WR14X10175
89	GEN WR32X10465
103	GEN WR02X11751
105	BOLT-DOOR HANDLE
106	GEN WR02X11665
107	GEN WR12X10664
108	GEN WR12X10663
109	GEN WR17X11971
121	STOPPER,DOOR BQ
128	GEN WR02X11680
141	GEN WR21X10081
144	GEN WR02X11687
200	GEN WR02X11689
202	GEN WR72X10148
203	GEN WR02X11685
206	GEN WR02X11679
212	BRACKET HANDLE FZR LEFT
219	GEN WR02X11672
244	BRACKET HANDLE FZ RIGHT
251	GEN WR02X11703
268	GEN WR02X11671
311	GEN WR02X11666
331	GEN WR12X10657
332	GEN WR12X10658
352	GEN WR30X10052
387	GEN WR02X11662
407	GEN WR32X10463
408	SNACK PAN
412	GEN WR21X10080
414	GEN WR21X10079
417	FZR BSKT LOWER
503	SHELF ASM
504	SHELF ASM
505	SHELF ASM
506	SHELF ASM,FOLDING
508	GEN WR02X12053
509	GEN WR02X12054
522	GEN WR02X12035
524	GEN WR02X12036
619	GEN WR17X11587
622	GEN WR17X11588
756	GEN WR02X11688
795	SUPPORTOR DIVIDER
806	GEN WR17X11586
807	DOOR BIN FZ
