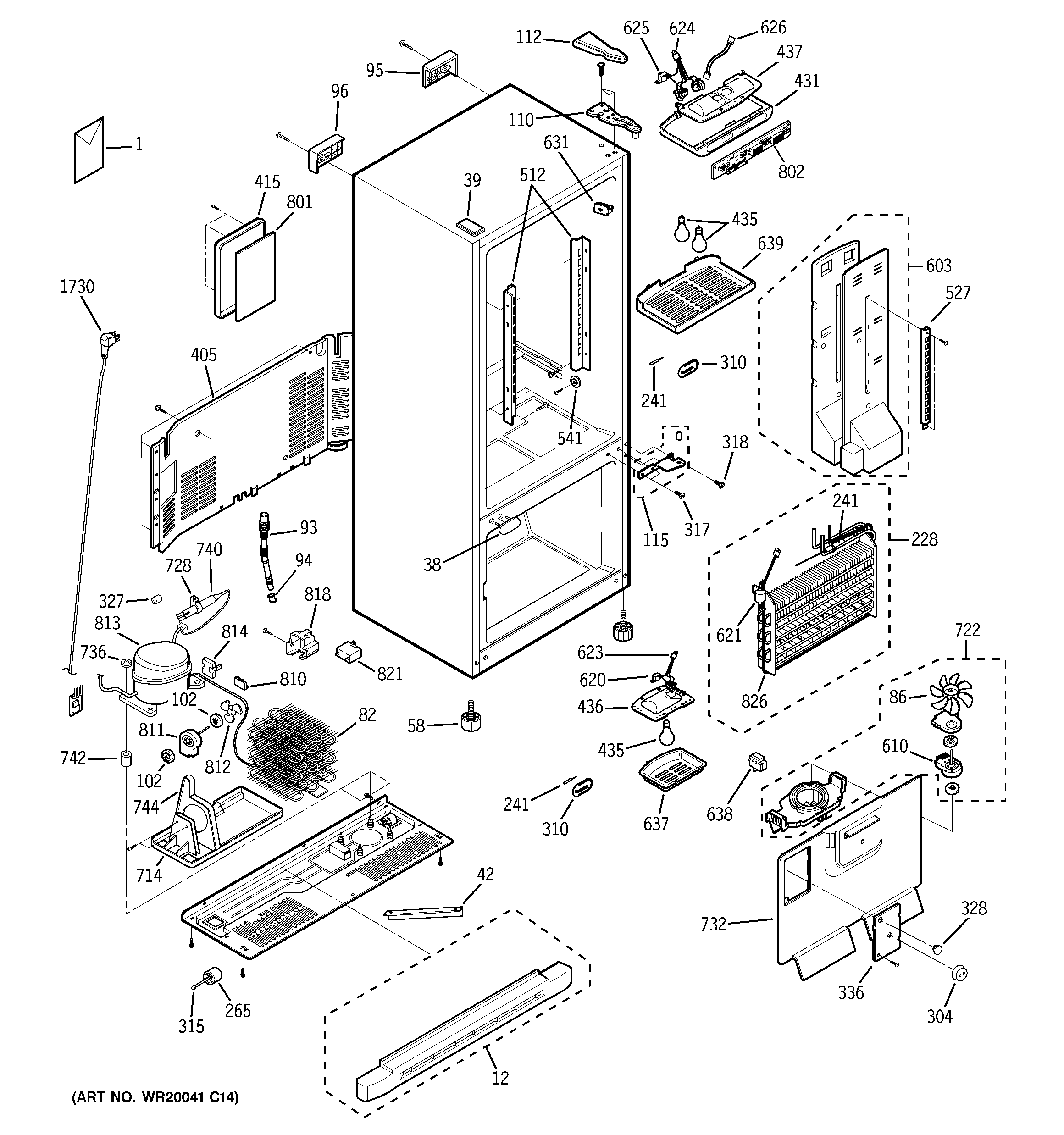

PDS22MBWCBB CABINET

PDS22MBWCBB CABINET

Written by

in

PDS22MBWCBB CABINET

Products

PositionProduct
1GEN 31-51726
1GEN 40-60503
12CVR ASM LOWER WH
12GEN WR74X10204
12COVER ASM LOWER
38CAP,HINGE(C)
38CAP,HINGE(C) BK
38CAP,HINGE(C) BQ
39CAP,HINGE(U) BK
39CAP,HINGE(U) BQ
39GEN WR02X11721
42GEN WR02X12064
58GEN WR02X12262
82GEN WR84X10057
86EVAP FAN BLADE
93GEN WR02X11697
94GEN WR02X12074
95GEN WR02X12141
95SUPPORT CAB LEFT
95GEN WR02X12143
96GEN WR02X12140
96SUPPORT CAB RIGHT BB
96GEN WR02X12142
102GEN WR02X11694
110HINGE ASM UPPER
112COVER,HINGE(U) BK
112COVER,HINGE(U) BQ
112GEN WR02X11719
115HINGE ASM CENTER
115HINGE ASM CENTER
115HINGE/PIN ASM WH CENTR
228GEN WR85X10057
241WR55X10025 GE Refrigerator Temperature Sensor
265GEN WR02X11698
304GEN WR02X11318
310COVER THERMISTOR
315GEN 4J04238A
317GEN WR01X10472
317HINGE CNTR BOLT BK
318GEN WR01X10473
318GEN WR01X10477
327GEN 4J04328A
328GEN WR02X11668
336GEN WR02X11669
405GEN WR02X11670
415GEN WR02X12269
431GEN WR17X11973
435RANGE ONLY 40W 120V APPL BULB
436GEN WR02X11656
437REFLECTOR,LAMP FF
512HOLDER SHELF
527HOLDER SHELF
541GEN WR02X11683
603GEN WR09X10114
610WR60X10196 GE Refrigerator Fan Motor Assembly
620GEN WR50X10044
621GEN WR50X10047
623SOCKET ASM,LAMP FZ
624SOCKET ASM,LAMP FF
625GEN WR50X10050
626GEN WR23X10430
631GEN WR23X10429
637GEN WR02X11658
638FREEZER LIGHT SWITCH
639GEN WR02X12066
714GEN WR30X10048
722GEN WR60X10146
728GEN WR02X11702
732GEN WR17X11594
736GEN WR02X11306
740WR86X25269 GE Refrigerator R134 Dryer
742GEN WR02X11787
744GEN WR17X11583
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802WR55X10522 GE Refrigerator Display Assembly Printed Wiring Board
810GEN WR07X10110
811GEN WR08X10092
812WR84X10055 GE Refrigerator Condenser Fan Motor
813WR87X20798 GE Refrigerator High Side Assembly
814CONDENSER FAN BLADE
818GEN WR02X11786
821WR55X24064 GE Refrigerator Run Capacitor
826GEN WR50X10042
1730WR23X10300 GE Refrigerator Power Cord Assembly
