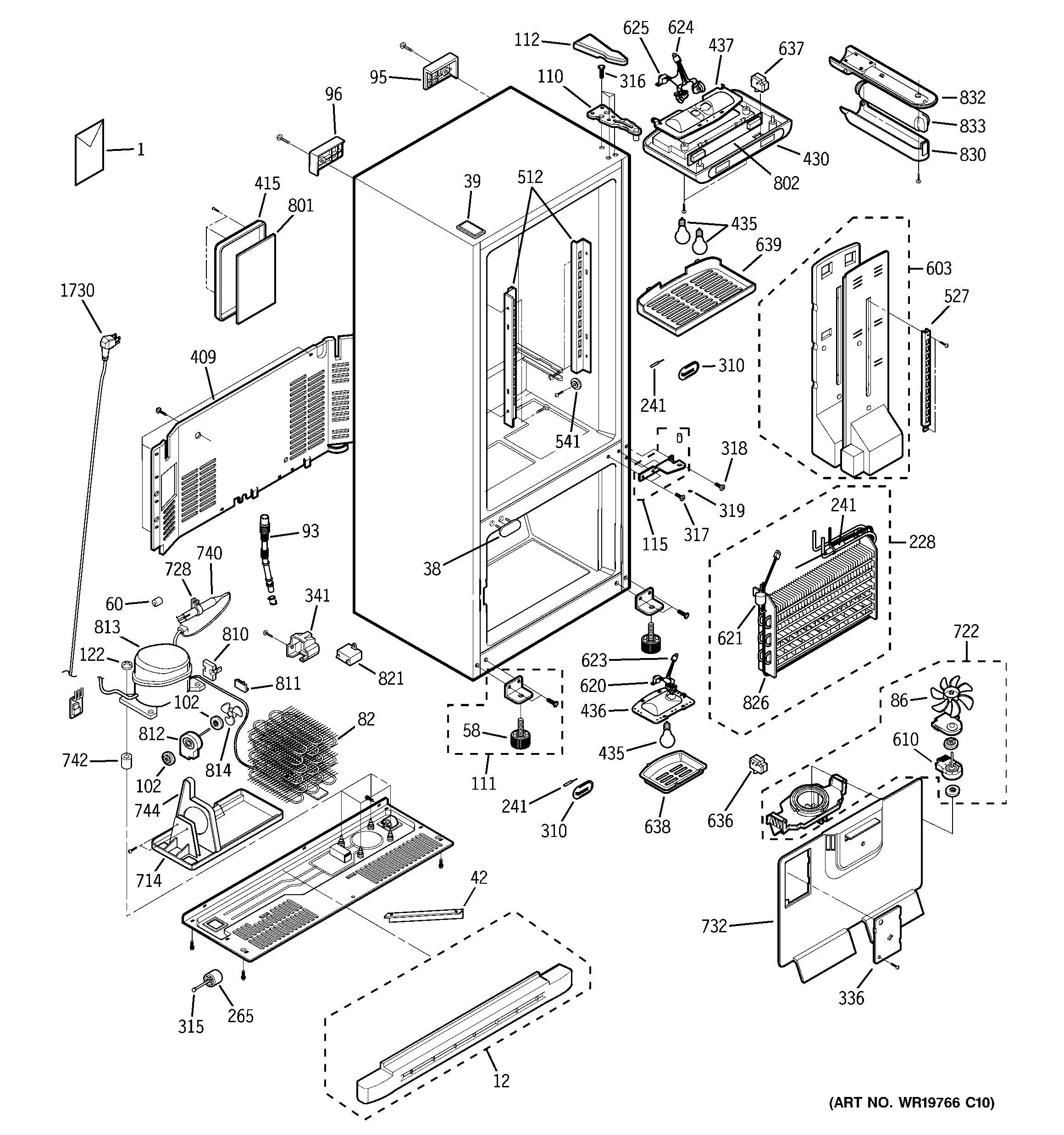

PDS22MCRBBB CABINET

PDS22MCRBBB CABINET

Written by

in

PDS22MCRBBB CABINET

Products

Position	Product
1	GEN 49-60282
1	GEN 31-46169
1	GEN 31-51594
12	COVER ASM LOWER
38	CAP,HINGE(C) BK
39	CAP,HINGE(U) BK
42	GEN WR02X12064
58	GEN WR02X11676
60	RUBBER,DAMPING BK
82	GEN WR84X10057
86	EVAP FAN BLADE
93	GEN WR02X11697
95	SUPPORT CAB RIGHT BB
96	SUPPORT CAB LEFT
102	GEN WR02X11694
110	HINGE ASM UPPER
111	GEN WR13X10305
112	COVER,HINGE(U) BK
115	HINGE ASM CENTER
122	GEN WR02X11306
228	GEN WR85X10057
241	WR55X10025 GE Refrigerator Temperature Sensor
265	GEN WR02X11980
310	COVER THERMISTOR
315	GEN 4J04238A
316	GEN WR01X10524
317	GEN WR01X10477
318	HINGE CNTR BOLT BK
319	GEN WR01X10471
336	GEN WR02X11669
341	GEN WR02X11786
409	GEN WR02X11670
415	GEN WR02X11659
430	CASE DISPLAY W/OVERLAY
435	RANGE ONLY 40W 120V APPL BULB
436	GEN WR02X11656
437	REFLECTOR,LAMP FF
512	HOLDER SHELF
527	HOLDER SHELF
541	GEN WR02X11683
603	GEN WR09X10114
610	WR60X10196 GE Refrigerator Fan Motor Assembly
620	GEN WR50X10050
621	GEN WR50X10047
623	SOCKET ASM,LAMP FZ
624	SOCKET ASM,LAMP FF
625	GEN WR50X10044
637	GEN WR02X11661
638	GEN WR02X11658
639	FREEZER LIGHT SWITCH
714	GEN WR30X10048
722	GEN WR60X10146
728	GEN WR02X11702
732	GEN WR17X11594
740	WR86X25269 GE Refrigerator R134 Dryer
742	GEN WR02X11787
744	GEN WR17X11583
801	WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802	GEN WR55X10340
810	WR07X10086 GE Refrigerator PTC Relay C03
811	OVERLOAD
812	WR84X10055 GE Refrigerator Condenser Fan Motor
813	WR87X20798 GE Refrigerator High Side Assembly
814	CONDENSER FAN BLADE
821	WR55X24064 GE Refrigerator Run Capacitor
826	GEN WR50X10042
830	GEN WR02X11713
832	GEN WR02X11714
833	GSWF GE Replacement GE SmartWater Water Filter Cartridge
1730	WR23X10300 GE Refrigerator Power Cord Assembly
