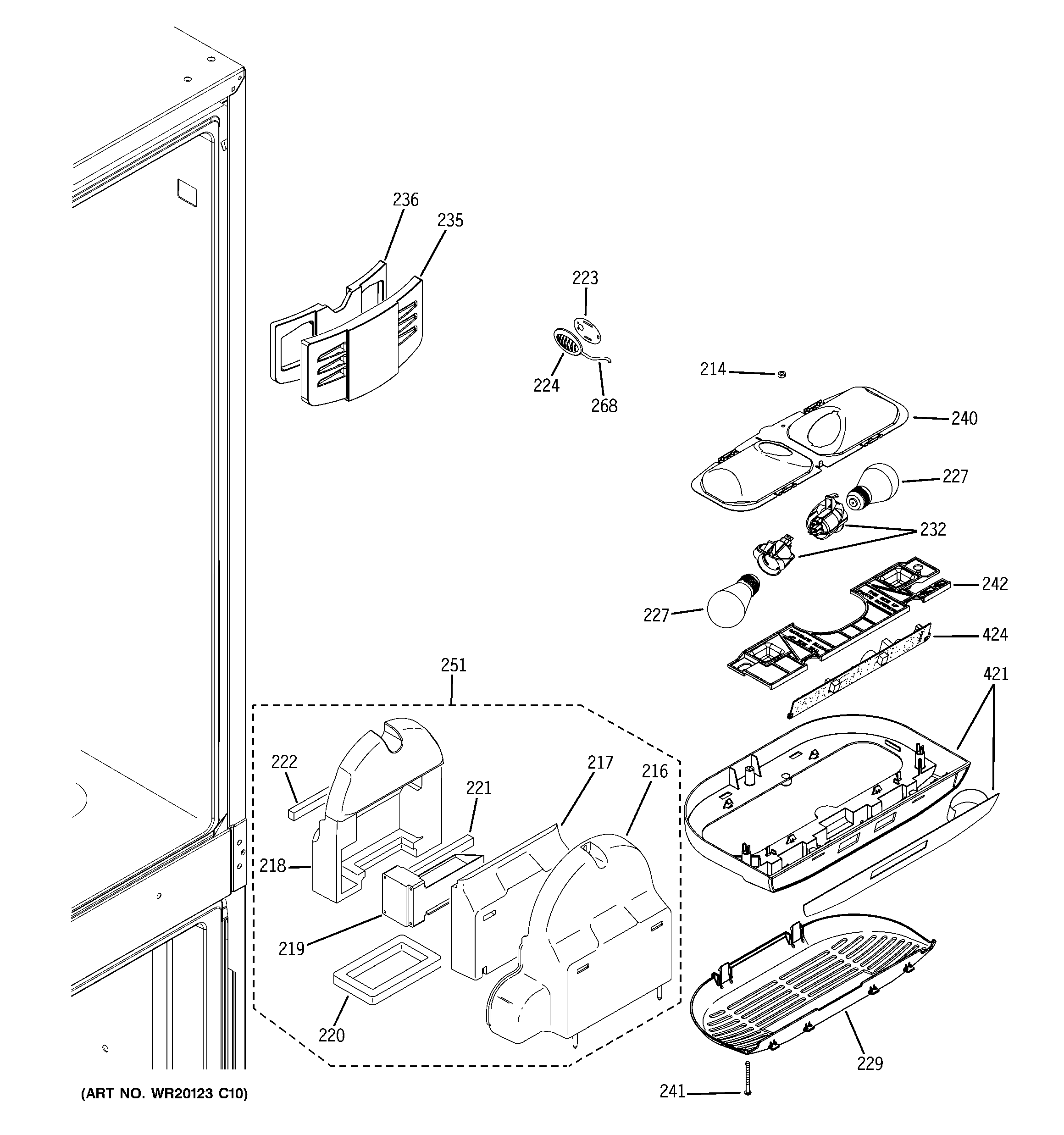

PDSE5NBWBDWW FRESH FOOD SECTION

PDSE5NBWBDWW FRESH FOOD SECTION

Written by

in

PDSE5NBWBDWW FRESH FOOD SECTION

Products

PositionProduct
214WR01X10212 GE Refrigerator 8-32 Nut
216WR17X12260 GE Air Tower Cover
217WR17X12261 GE EPS Air Tower
218WR17X12262 GE Refrigerator Air Tower Back EPS
219AIR DAMPER ASSM
220GASKET FF INLET
221WR14X10228 GE Refrigerator Tower Gasket
222GASKET TOWER FF
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
227WR02X12207 GE Refrigerator Net Bulb Light
229GEN WR17X12264
232WR2X9014 GE Refrigerator Socket & Terminal C02
235GEN WR17X12265
236WR17X12266 GE Refrigerator EPS Vent Duct Vertical
240WR02X12387 GE Refrigerator Reflector
241GEN WR01X1792
242GEN WR32X10612
268WR55X10025 GE Refrigerator Temperature Sensor
421GEN WR55X10742
424WR55X10684 GE Refrigerator Temperature Control Board Assembly
