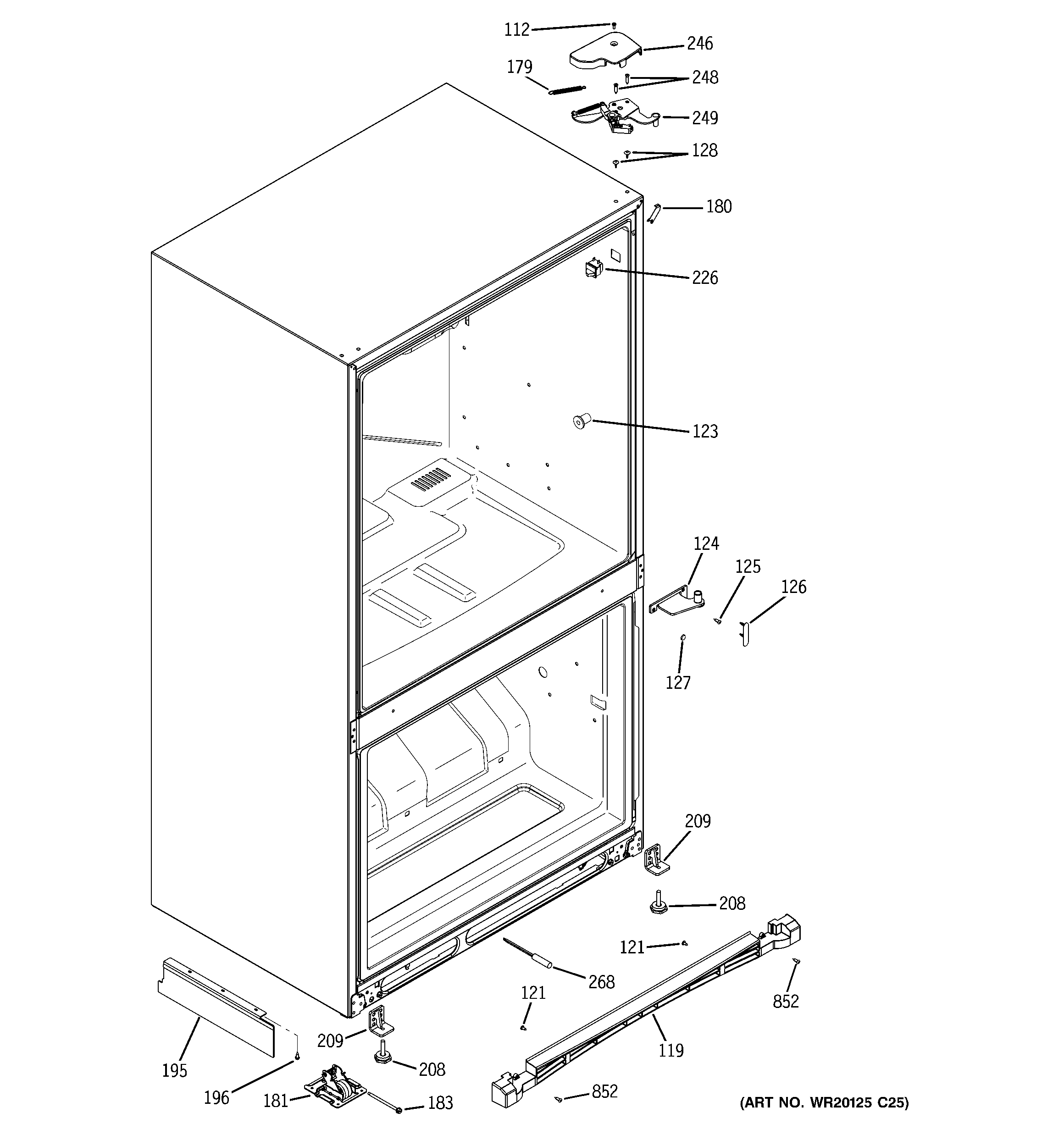

PDSE5NBZCDSS CASE PARTS

PDSE5NBZCDSS CASE PARTS

Written by

in

PDSE5NBZCDSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124WR13X10436 GE Center Full Hin Assembly Rh
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126GEN WR02X12381
127SCREW COVER BK
128WR02X13048 GE Plug Cover
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195GEN WR17X12424
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
246COVER HINGE TOP RH
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249HINGE CLOSURE ASM
268WR55X10025 GE Refrigerator Temperature Sensor
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
