PDSE5NBZHDSS CASE PARTS

PDSE5NBZHDSS CASE PARTS

Written by

in

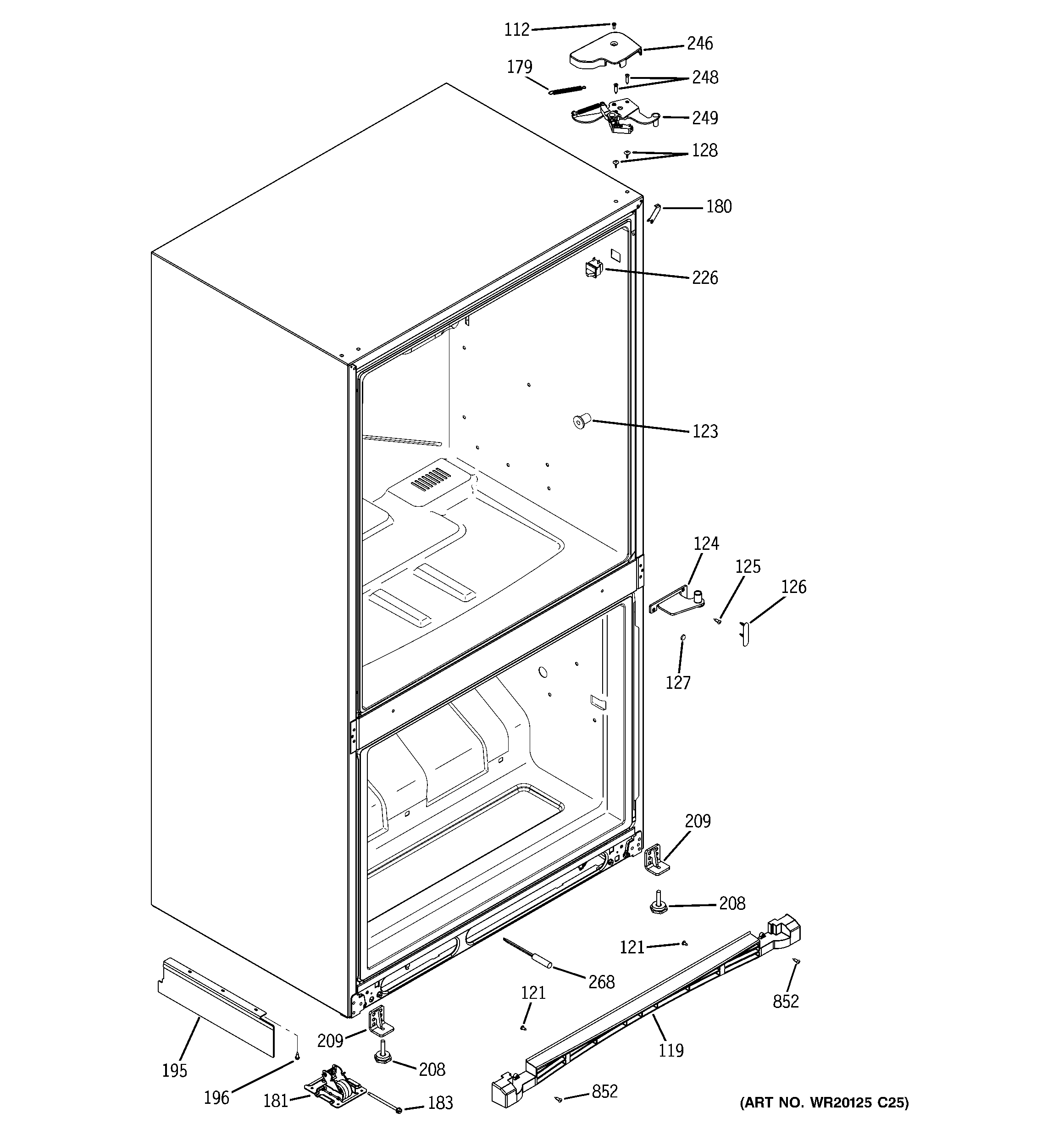

PDSE5NBZHDSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124WR13X10436 GE Center Full Hin Assembly Rh
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126GEN WR02X12381
127SCREW COVER BK
128WR02X13048 GE Plug Cover
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195GEN WR17X12424
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
246COVER HINGE TOP RH
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249HINGE CLOSURE ASM
268WR55X10025 GE Refrigerator Temperature Sensor
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
