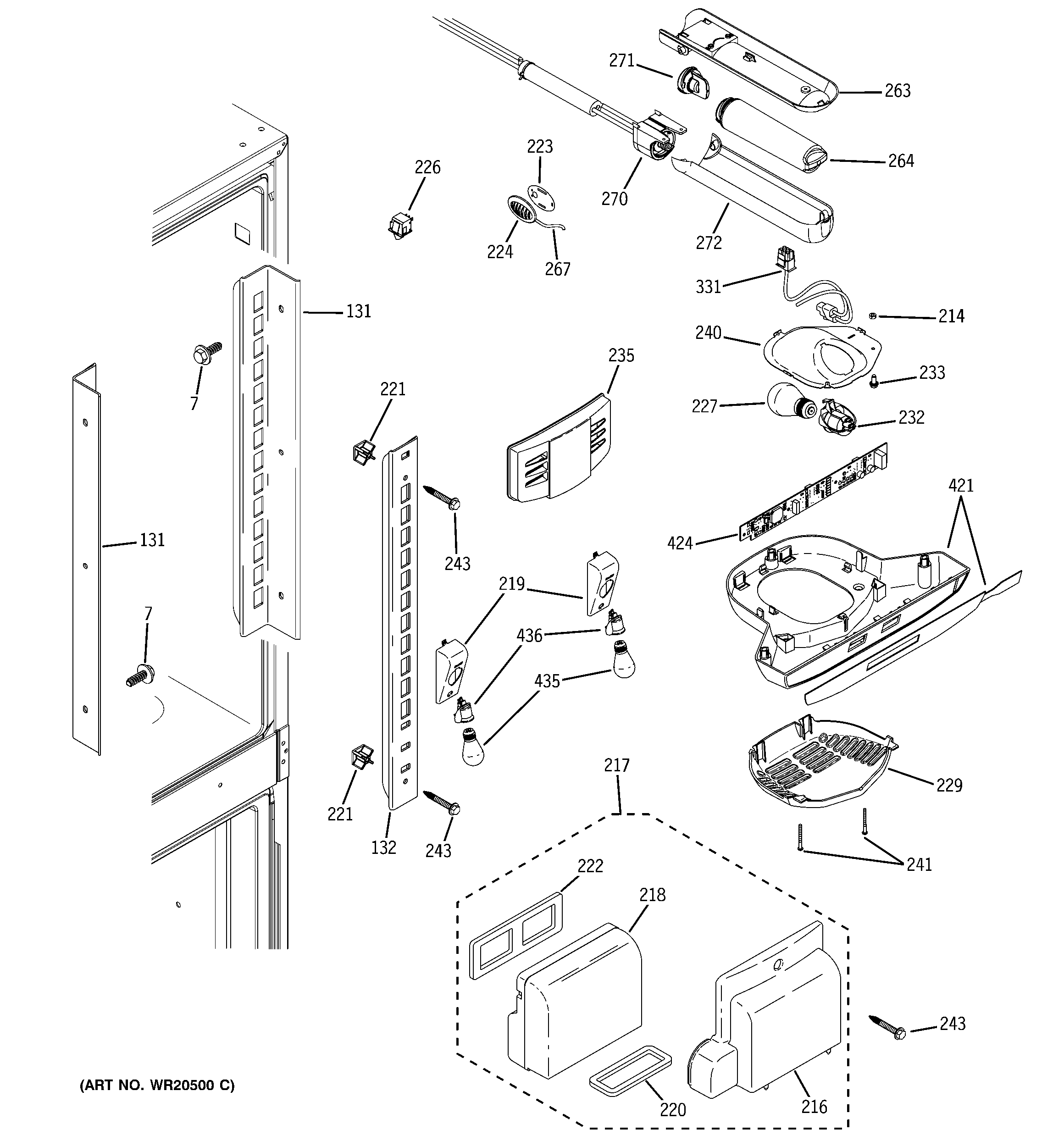

PDSF0MFXARBB FRESH FOOD SECTION

PDSF0MFXARBB FRESH FOOD SECTION

Written by

in

PDSF0MFXARBB FRESH FOOD SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
131GEN WR72X10305
132GEN WR72X10304
214WR01X10212 GE Refrigerator 8-32 Nut
216GEN WR17X12565
217WR17X12573 GE Refrigerator Damper Duct Assembly
218GEN WR17X12566
219REFLECTOR MIDDLE LAMP
220GEN WR14X10268
221GEN WR02X10892
222GEN WR14X10269
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
226WR23X37285 GE Light Switch
229GEN WR17X12567
232WR2X9391 GE Socket and Terminal
233WD2X323D GE Dishwasher Screw Package
235GEN WR17X12585
240GEN WR02X12873
241GEN WR01X1792
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
263GEN WR17X12300
264GSWF GE Replacement GE SmartWater Water Filter Cartridge
267WR55X10025 GE Refrigerator Temperature Sensor
270WR17X12301 GE Refrigerator Filter and Tube Assembly
271WR17X22073 GE Refrigerator GSWF Bypass
272WR17X12299 GE Refrigerator Lower Filter Cover Assembly
331HARNESS FF CTRL & LT
421GEN WR55X10902
424WR55X10684 GE Refrigerator Temperature Control Board Assembly
435RANGE ONLY 40W 120V APPL BULB
436SOCKET & TERMINAL ASM
