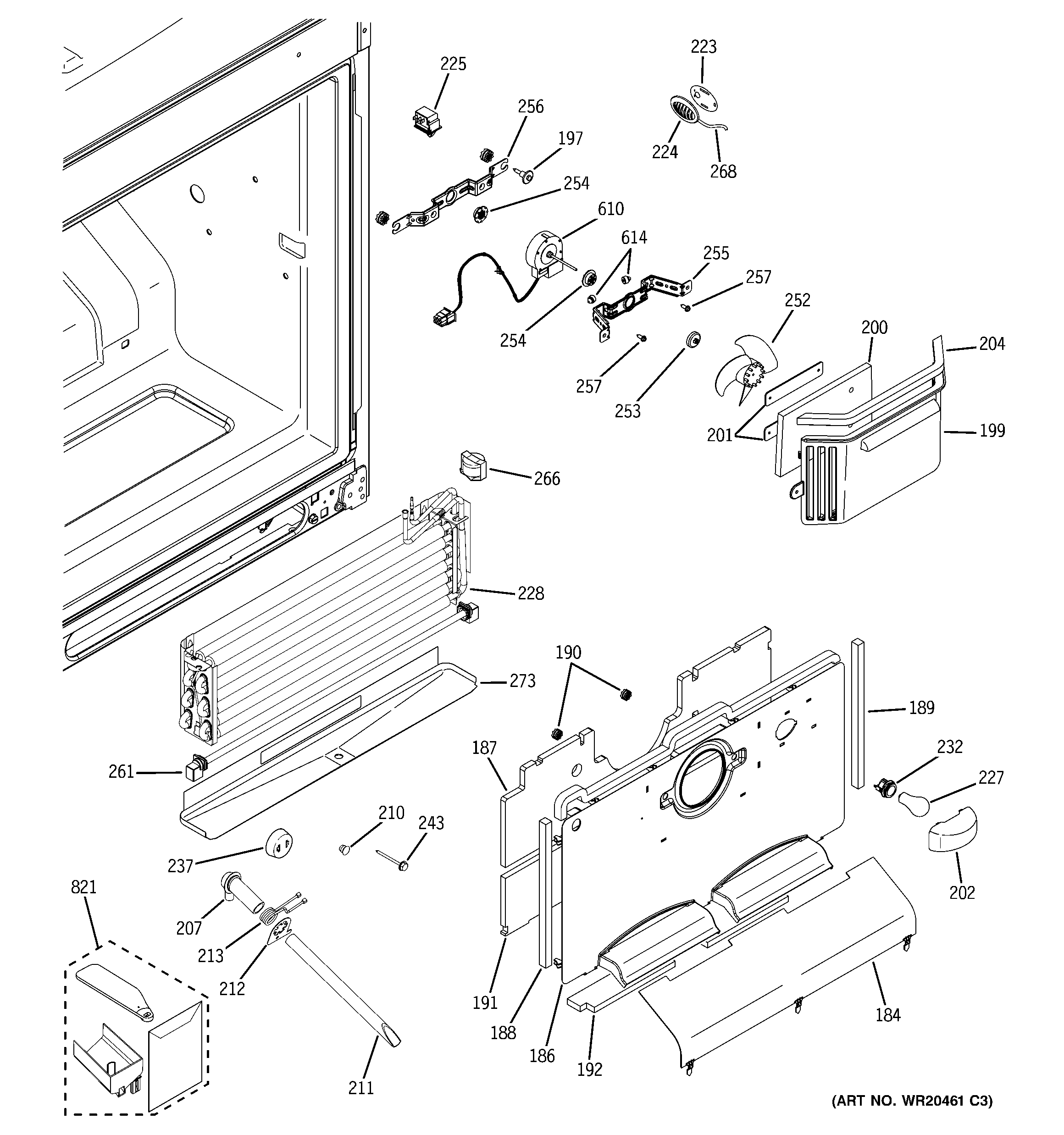

PDSF5NBXCBB FREEZER SECTION

Products

PositionProduct
184GEN WR17X12673
186GEN WR17X12675
187GEN WR14X10297
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191INSULATION COVER EVAP
192GEN WR14X10224
197WR01X10685 GE Scraper 8-18 Assembly
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
202GEN WR02X11568
204WR14X10223 GE Adhesive Foam Strip
207WR2X8474 GE Fill Tube
210WR2X8247 GE Refrigerator Plug Button
211GEN WR17X12258
212GEN WR17X12259
213WR51X10093 GE Refrigerator Heater Fill Tube Assembly
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227RANGE ONLY 40W 120V APPL BULB
228LOW SIDE ASM
232WR2X9391 GE Socket and Terminal
237WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X10322 GE Refrigerator Dust Cap B02
254WR02X12008 GE Refrigerator Evaporator Fan Grommet
255WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
256WR17X12270 GE Rear Evaporator Fan Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261WR51X10094 GE Refrigerator Defrost Heater
266WR50X10065 GE Refrigerator Defrost Thermostat
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12303 GE Refrigerator Drain Trough Tube
610WR60X10185 GE Refrigerator Evaporator Fan Motor
614BUMPER
821GEN WR49X10171
