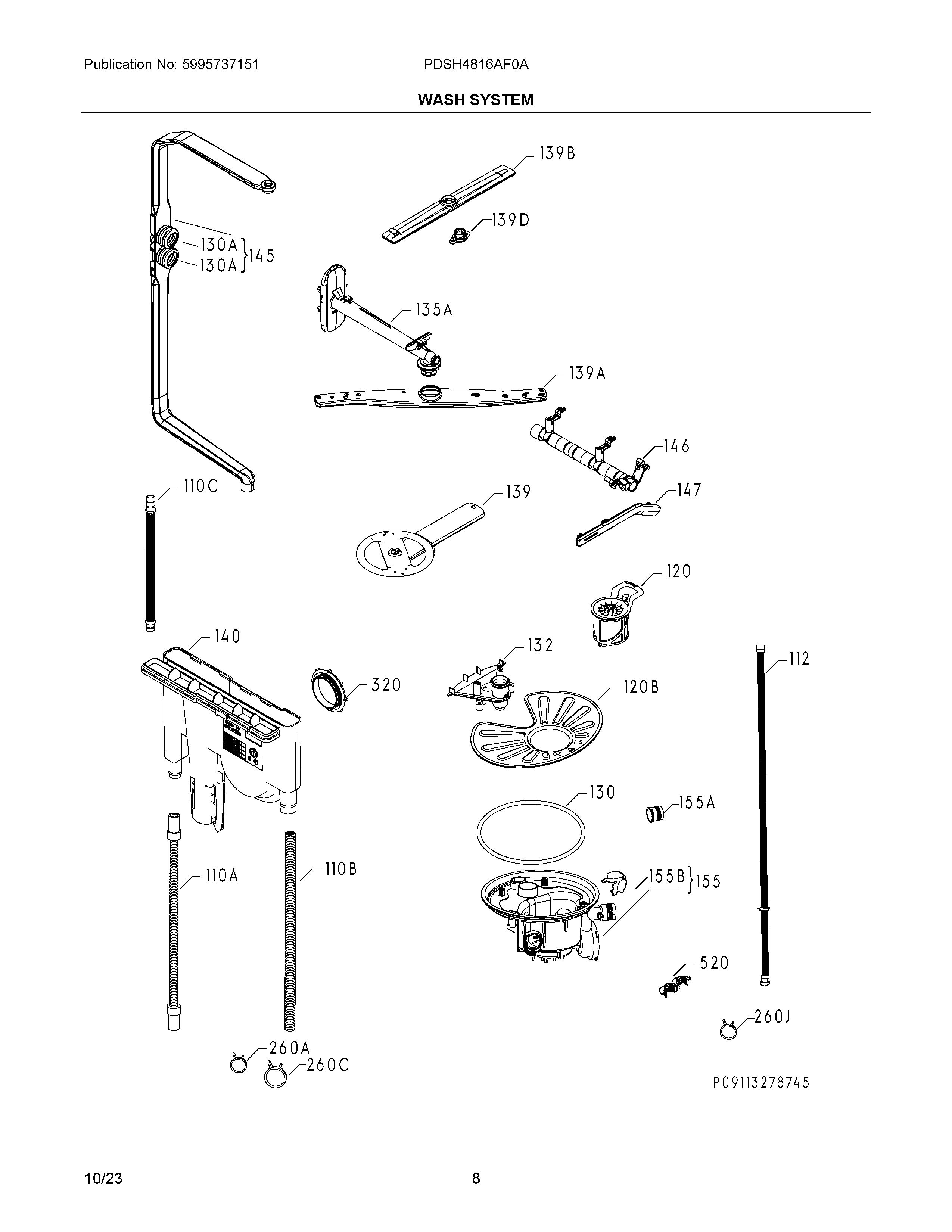

PDSH4816AF0A 05 – WASH SYSTEM

Products

Position	Product
NI	SCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110A	807526501 Frigidaire Dishwasher Tubing Assembly
110C	A01256402 Frigidaire Dishwasher Hose
110B	117281425 Frigidaire Dishwasher Hose
112	807032601 Frigidaire Dishwasher Hose
120	A00201409 Frigidaire Dishwasher Drain Filter
120B	808429704 Frigidaire Dishwasher Filter
130	111918600 Frigidaire Dishwasher O-Ring
130A	A00045701 Frigidaire Dishwasher Seal
132	A11243702 Frigidaire Dishwasher Spray Arm
135A	A00060302 Frigidaire Dishwasher Duct
139B	807382106 Frigidaire Dishwasher Upper Spray Arm
139D	807035801 Frigidaire Wash Arm Bearing
139	SPRAY ARM, LOWER, SATELITE
139A	A05814602 Frigidaire Dishwasher Spray Arm
140	A01087405 Frigidaire Dishwasher Water Tank
145	A00023201 Frigidaire Dishwasher Spray Arm Manifold
146	807036109 Frigidaire Arm Assembly
147	TUBE, PREMIX, DETERGENT
155	SUMP ASSEMBLY
155B	SCREEN, SUMP
155A	A00053601 Frigidaire Dishwasher Flapper
260A	807868902 Frigidaire Dishwasher Clamp
260J	807868901 Frigidaire Dishwasher Clamp
260C	807868903 Frigidaire Dishwasher Clamp
320	152627221 Frigidaire Dishwasher GRILL
520	807201901 Frigidaire Dishwasher Flange
