PDSS0MFXARSS FREEZER SECTION

PDSS0MFXARSS FREEZER SECTION

Written by

in

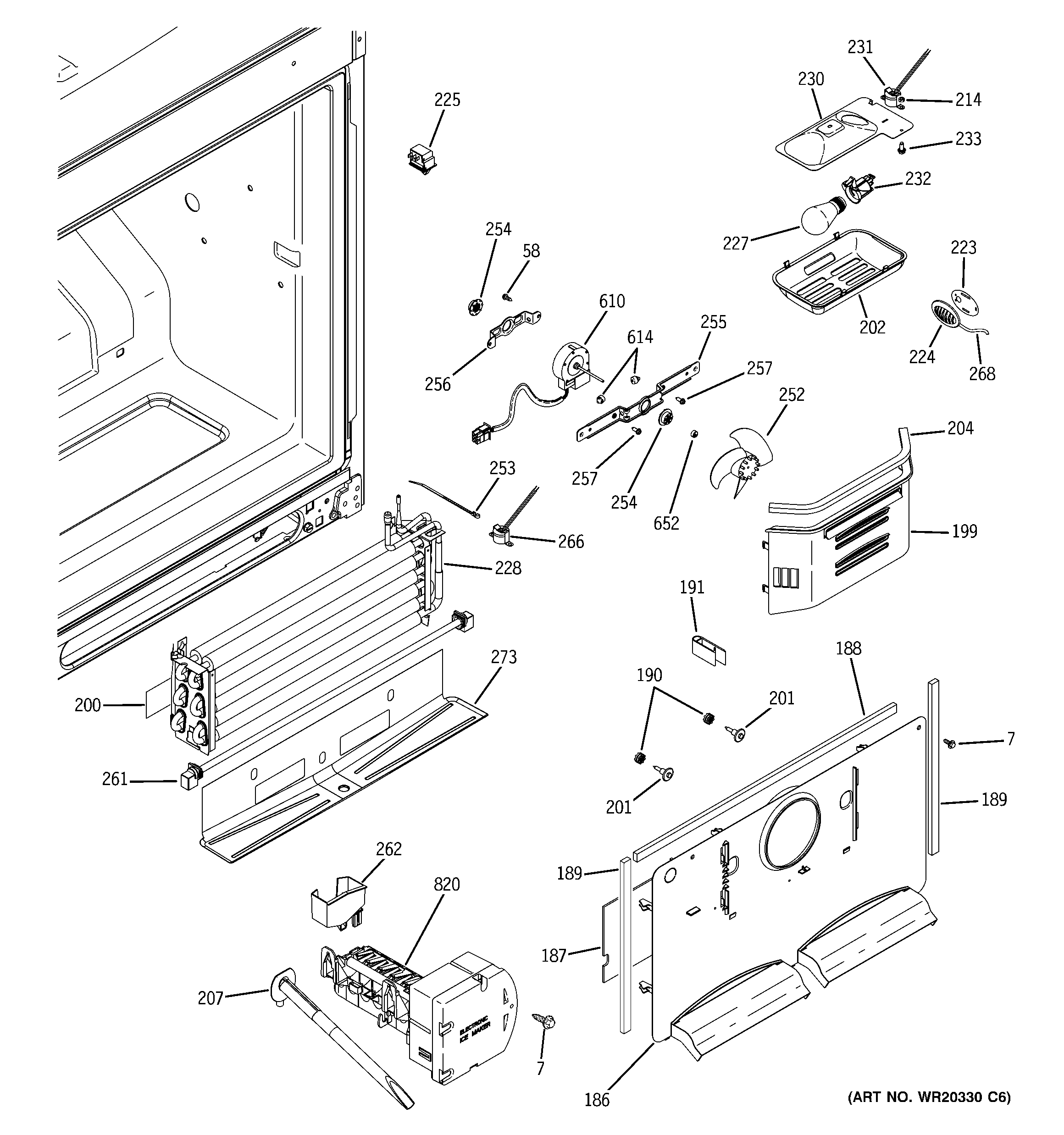

PDSS0MFXARSS FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
186GEN WR17X12574
187FOAM COVER EVAP
188WR14X10276 GE Adhesive Foam Strip
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
191WR02X10522 GE Refrigerator Clamp Tube
199GEN WR17X12575
200WR14X10267 GE Insulation Harness
201WR01X10685 GE Scraper 8-18 Assembly
202GEN WR17X12255
204GEN WR14X10264
207GROMMET AND TUBE ASM
214WR01X10212 GE Refrigerator 8-32 Nut
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227RANGE ONLY 40W 120V APPL BULB
228LOW SIDE ASM
230GEN WR02X12805
231WR23X10536 GE Freezer Light Harness
232WR2X9391 GE Socket and Terminal
233WD2X323D GE Dishwasher Screw Package
252EVAPORATOR FAN BLADE
253WR02X11607 GE Refrigerator Wire Tie
255WR02X10764 GE Refrigerator Evaporator Bracket
256WR17X12507 GE Evaporator Fan Front Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261WR51X10038 GE Refrigerator Defrost Heater Assembly
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266WR50X10068 GE Refrigerator Defrost Thermostat
268WR55X10025 GE Refrigerator Temperature Sensor
273TROUGH DRAIN ASM
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
820WR30X10093 GE Refrigerator Ice Maker
