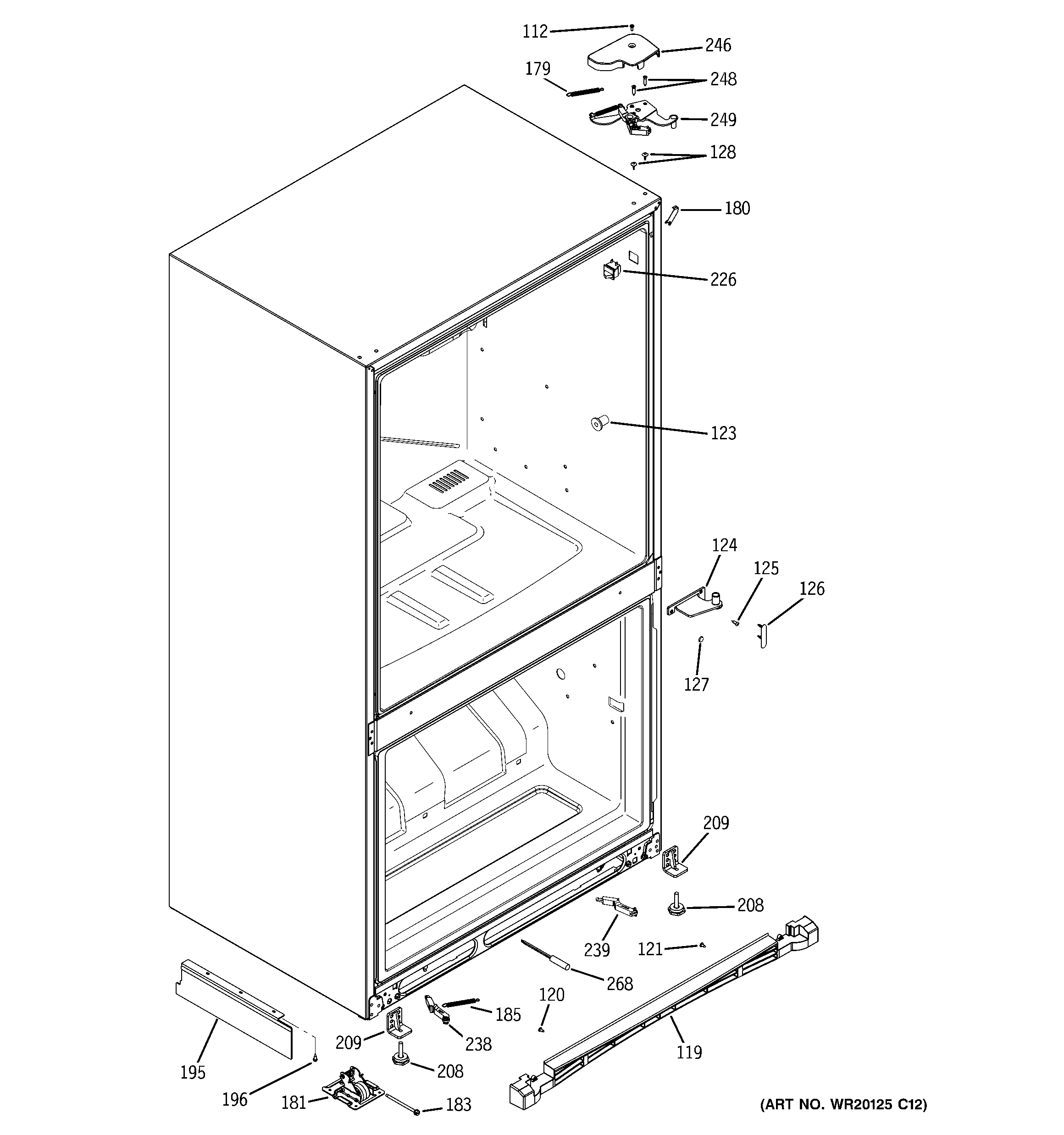

PDSS5NBXBRSS CASE PARTS

PDSS5NBXBRSS CASE PARTS

Written by

in

PDSS5NBXBRSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
120WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
121WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
123WR02X12187 GE Refrigerator Support Shelf
124WR13X10436 GE Center Full Hin Assembly Rh
125WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
126GEN WR02X12381
127SCREW COVER BK
128WR02X21195 GE Refrigerator Door Reversal Plug
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
185WR1X2027 GE Refrigerator Spring Closure
195GEN WR17X12424
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
238WR11X10016 GE Refrigerator Lever Arm Closure Assembly
239WR11X10017 GE Refrigerator Lever Arm Closure Assembly
246COVER HINGE TOP RH
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249HINGE CLOSURE ASM
268WR55X10025 GE Refrigerator Temperature Sensor
