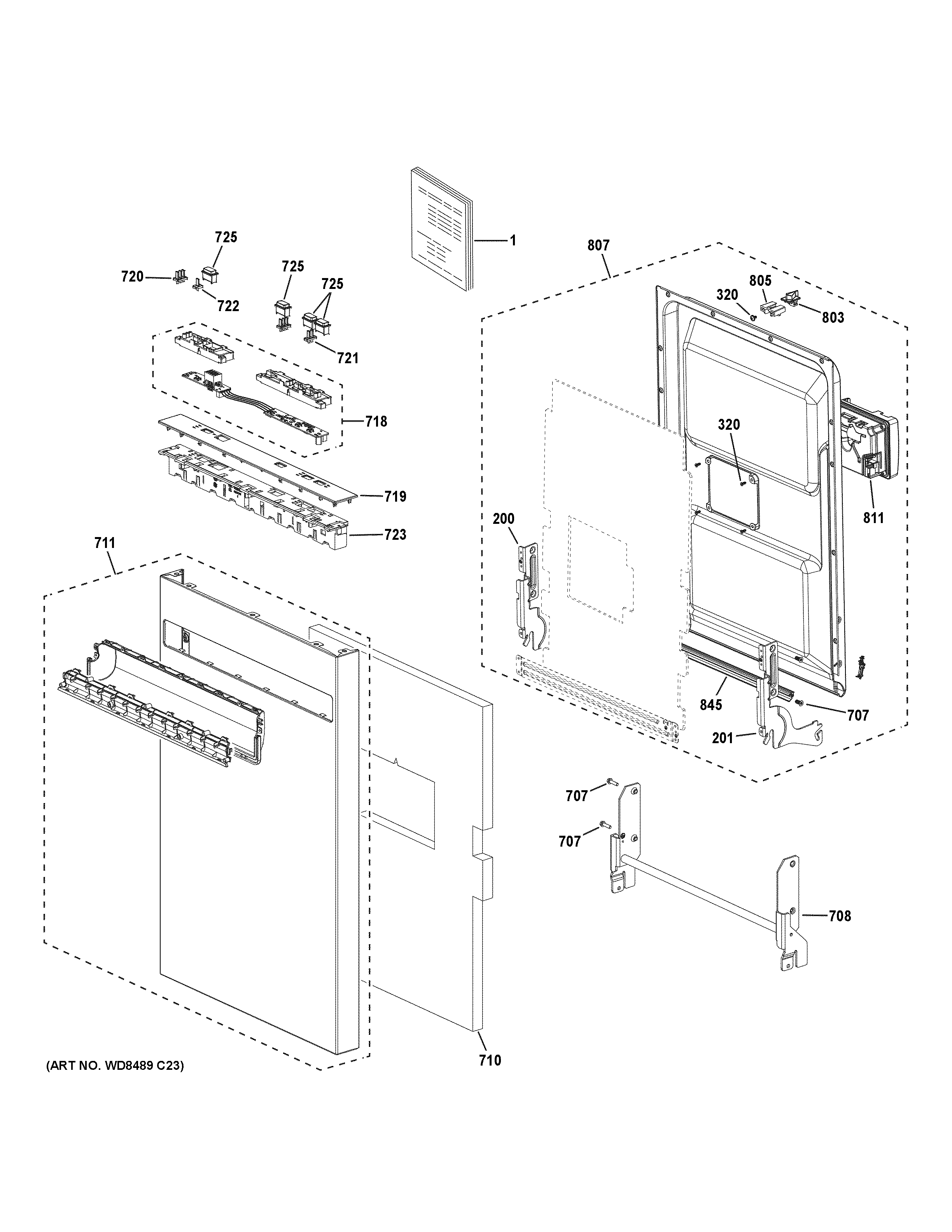

PDT145SGL1WW ESCUTCHEON & DOOR ASSEMBLY

PDT145SGL1WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDT145SGL1WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PRINTED ONLYMINI MANUAL AND WIRING
1PM QUICK OWNERS MANUAL
1PM OWNERS MANUAL
200WD01X24738 GE Dishwasher Hinge Mechanism Left Hand
201WD01X24739 GE Dishwasher Hinge Mechanism Right Hand
320WD02X24690 GE Screw
707WD02X24689 GE Dishwasher Door Brace Screw
708WD27X24639 GE Dishwasher Door Brace
710DOOR INSULATION
711WD27X24687 GE Dishwasher Outer Door Panel Assembly
718WD21X28718 GE Dishwasher UI Control Assembly
719CONSOLE COVER WW
720WD02X26239 GE Dishwasher Light Pipe
721LIGHT PIPE 2
722WD02X26240 GE Dishwasher Light Pipe
723WD12X26199 GE Dishwasher Console
725WD09X24603 GE Dishwasher White Buttons
803DOOR LATCH STRIKER
805STRIKER MOUNT
807INNER DOOR
811WD12X32801 GE Dishwasher Detergent Module
845BEACH GASKET
