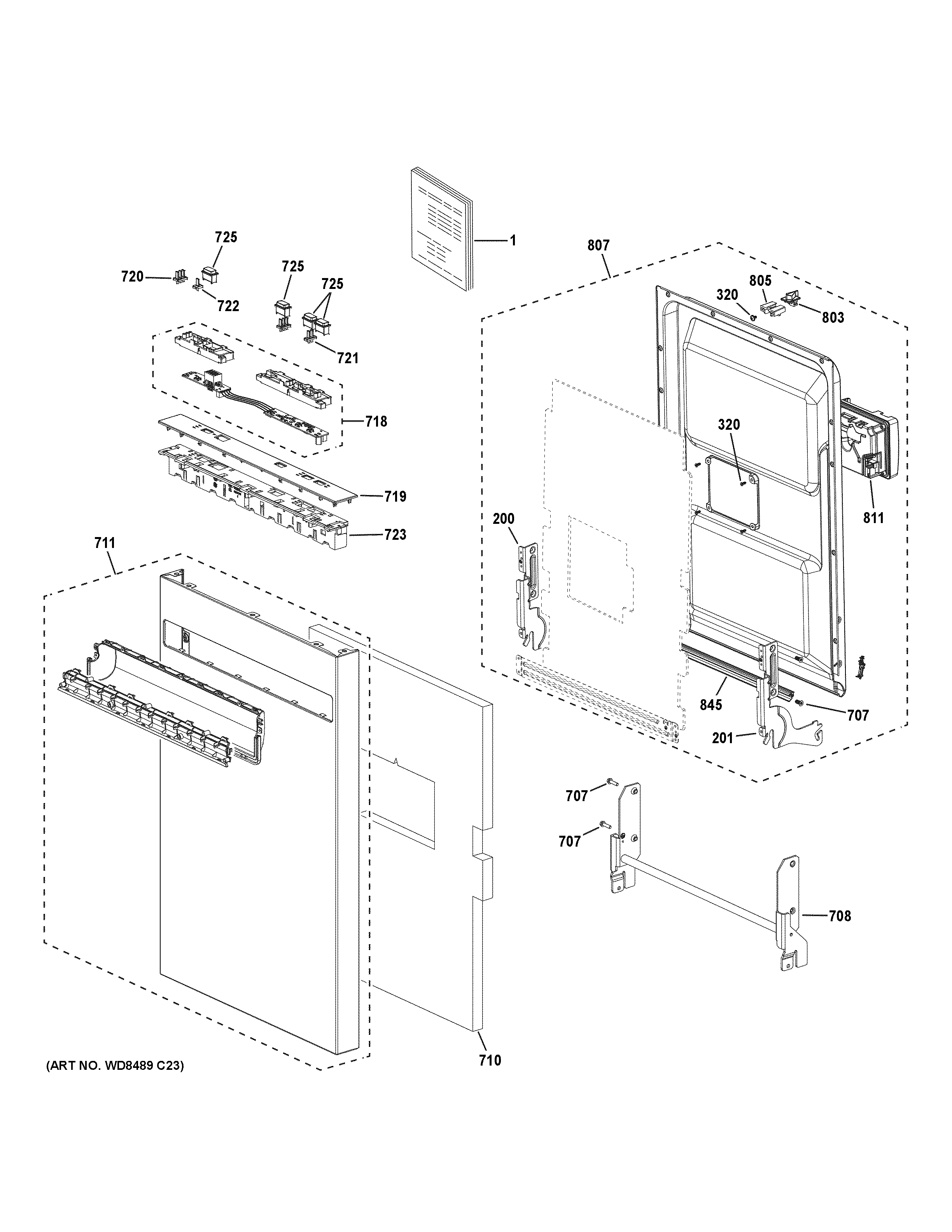

PDT145SSL1SS ESCUTCHEON & DOOR ASSEMBLY

Written by

Products

Position	Product
1	PM INSTALL INSTRUCTIONS
1	PRINTED ONLYMINI MANUAL AND WIRING
1	PM QUICK OWNERS MANUAL
1	PM OWNERS MANUAL
200	WD01X24738 GE Dishwasher Hinge Mechanism Left Hand
201	WD01X24739 GE Dishwasher Hinge Mechanism Right Hand
320	WD02X24690 GE Screw
707	WD02X24689 GE Dishwasher Door Brace Screw
708	WD27X24639 GE Dishwasher Door Brace
710	DOOR INSULATION
711	WD27X24686 GE Dishwasher Stainless Steel Outer Door Panel
718	WD21X28718 GE Dishwasher UI Control Assembly
719	WD34X24629 GE Console Cover Stainless Steel
720	WD02X26239 GE Dishwasher Light Pipe
721	LIGHT PIPE 2
722	WD02X26240 GE Dishwasher Light Pipe
723	WD12X26199 GE Dishwasher Console
725	WD09X24601 GE Dishwasher Dorian Gray Button Assembly
803	DOOR LATCH STRIKER
805	STRIKER MOUNT
807	INNER DOOR
811	WD12X32801 GE Dishwasher Detergent Module
845	WD08X24623 GE Dishwasher Beach Gasket Assembly
845	BEACH GASKET
