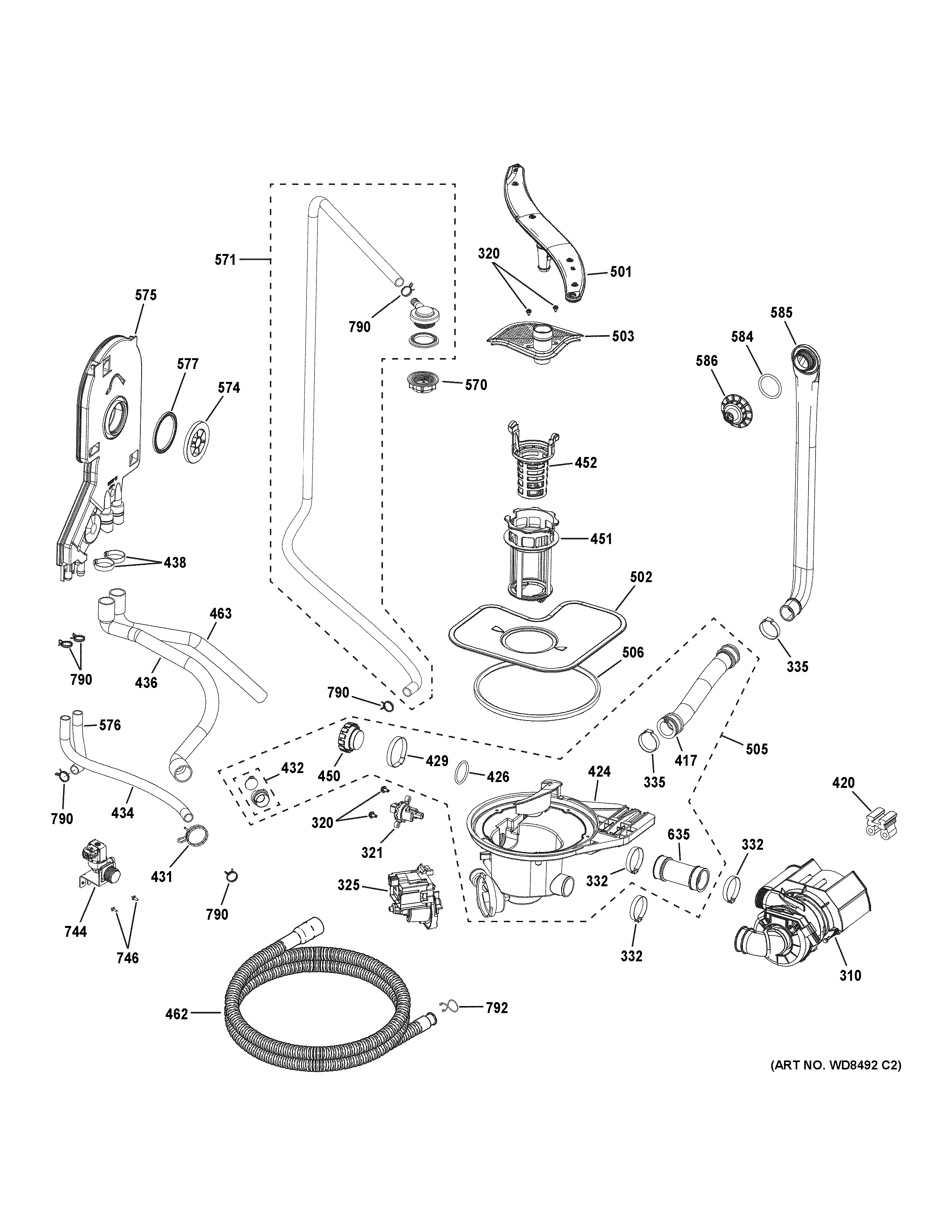

PDT145SSL1SS MOTOR-PUMP MECHANISM

PDT145SSL1SS MOTOR-PUMP MECHANISM

Written by

in

PDT145SSL1SS MOTOR-PUMP MECHANISM

Products

PositionProduct
310WASH PUMP
320WD02X24690 GE Screw
321WD21X24700 GE Dishwasher Turbidity Sensor
325WD19X24651 GE Dishwasher Drain Pump Assembly
417WD24X24675 GE Dishwasher Main Conduit Hose
420WD01X24707 GE Pump Harness
424WD08X24694 GE Dishwasher Sump Insert
426WD08X24696 GE Dishwasher Sump Port Plug Gasket
429WD35X10382 GE Dishwasher Piranha Clamps Kit
431WD01X24723 GE Squeeze Clamp Large
432WD15X24624 GE Dishwasher Check Valve and Housing
434AIR BREAK TO SUMP FILL HOSE
436WD24X24717 GE Dishwasher Drain Pump Discharge Hose
438HOSE CLAMP
450SUMP PORT PLUG
451WD12X24656 GE Dishwasher Fine Filter
452WD12X24663 GE Dishwasher Glass Trap
462DRAIN TUBE ASM
463WD24X24649 GE Dishwasher Drain Hose
501WD22X24718 GE Dishwasher Lower Spray Arm
502WD12X26378 GE Coarse Plastic Filter
503WD12X24673 GE Dishwasher Lower Spray Arm Base
505WD19X24692 GE Dishwasher Sump Assembly
506WD08X28058 GE Dishwasher Sump Gasket
570WD22X24704 GE Upper Spray Nozzle
571WD22X24703 GE Dishwasher Upper Spray Assembly
574WD02X24709 GE Dishwasher Water Inlet Nut
575WD12X24598 GE Dishwasher Airbreak Flow Meter Assembly
576WD24X24599 GE Dishwasher Fill Hose
577WD08X24710 GE Dishwasher Water Inlet Gasket Nut
584WD08X24720 GE Main Conduit Gasket
585WD12X24719 GE Conduit Assembly
586MID SPRAY DOCKING PORT
635WD24X31318 GE Dishwasher Pump Discharge Hose
744WD15X24711 GE Dishwasher Water Valve
746WD02X24617 GE Water Valve Screw
790WD01X24620 GE Dishwasher Small Squeeze Clamp
792WD01X25898 GE Dishwasher Drain Hose Clamp
