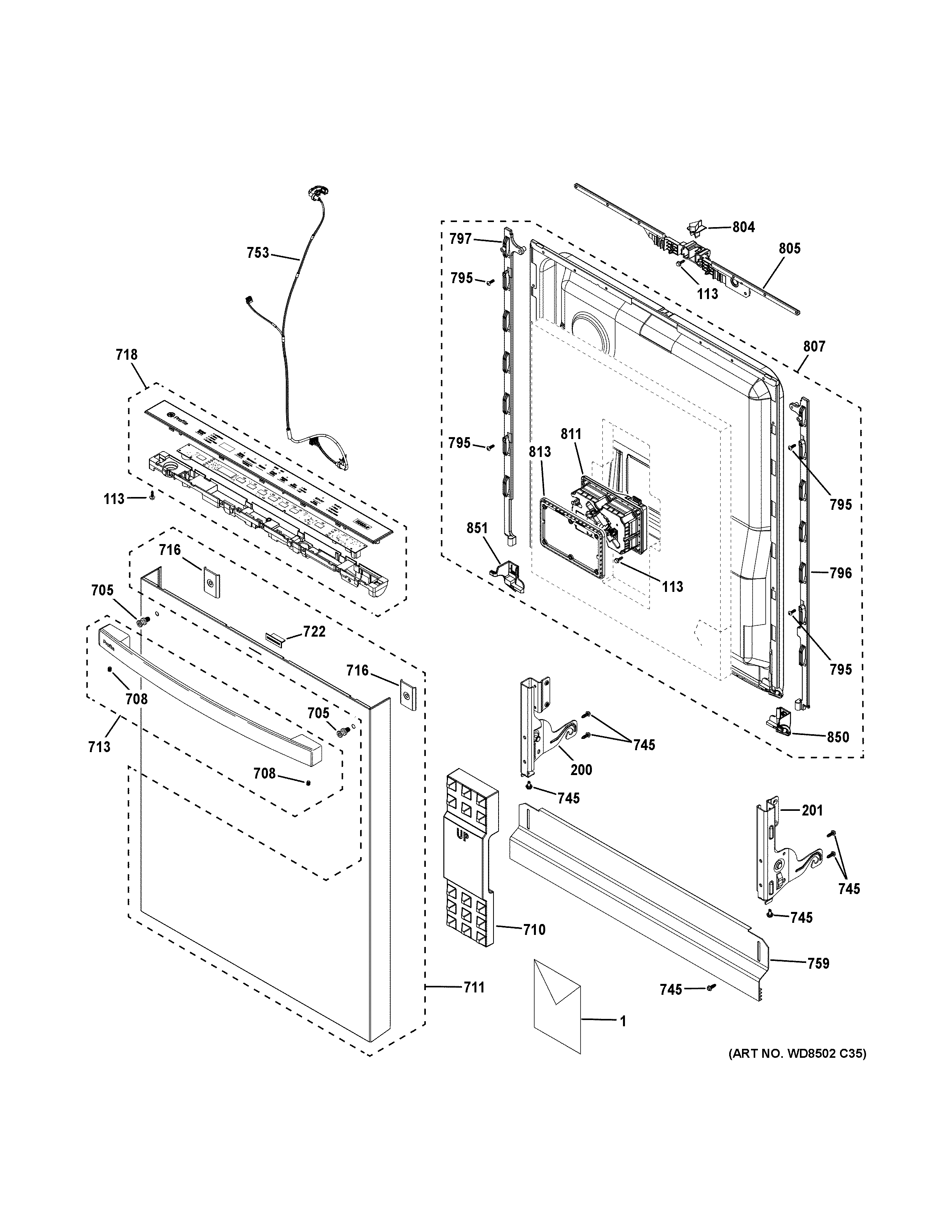

PDT715SYV0FS ESCUTCHEON & DOOR ASSEMBLY

PDT715SYV0FS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDT715SYV0FS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS AND INSTALL
1PM MINI MANUAL AND WIRING
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
705WD02X30020 GE Dishwasher Door Handle Fastener
708WR01X11014 GE Refrigerator Set Screw
710WD01X29918 GE Door Foam Block
711WD27X33119 GE Stainless Outer Door Panel Fs
713WD09X32999 GE Door Handle
716WD02X30678 GE Handle Bracket
718WD21X33779 GE Dishwasher Control Assembly with Cover
722DOOR LENS
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD27X30353 GE Stainless Steel Inner Door
811DETERGENT MODULE
813WD12X10462 GE Dishwasher Detergent Plate
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
