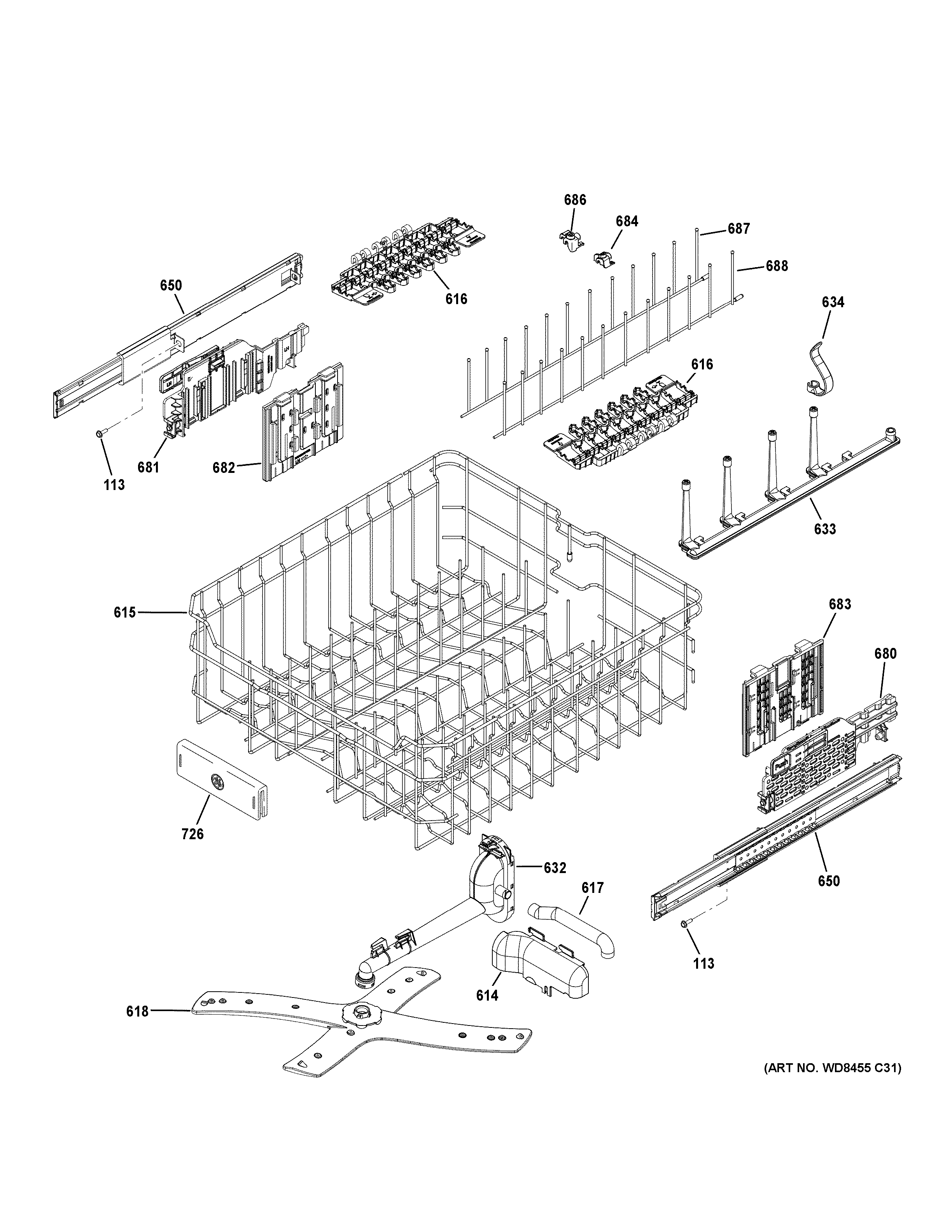

PDT750SSF5SS UPPER RACK ASSEMBLY

PDT750SSF5SS UPPER RACK ASSEMBLY

Written by

in

PDT750SSF5SS UPPER RACK ASSEMBLY

Products

PositionProduct
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
614WD24X20263 GE Dishwasher Bottle Blaster Cover
615WD28X25802 GE Dishwasher Upper Rack To Flat Assembly
616WD28X20177 GE Dishwasher Cup Shelf
617WD24X20262 GE Dishwasher Hose Bottle Blaster
618WD22X22853 GE Dishwasher Middle Spray Arm Assembly
632WD21X20192 GE Dishwasher Tiered Blast Conduit Assembly
633WD22X25478 GE Dishwasher Bottle Blaster Assembly
634WD12X20191 GE Dishwasher Bottle Clip
650WD30X20110 GE Dishwasher Upper Rack Inner Rail Assembly
680WD12X20108 GE Dishwasher Bracket Assembly Upper Rack
681WD12X20109 GE Dishwasher Bracket Assembly Upper Rack
682WD12X20112 GE Dishwasher Fixed Bracket
683WD12X20113 GE Dishwasher Fixed Bracket
684FDT CLIP TIER RK RT
686FDT CLIP TIER RK LT
687WD28X20193 GE Dishwasher FDT Assembly Upper Coated
688WD28X20194 GE Dishwasher FDT Assembly Upper Coated
726WD09X22840 GE Dishwasher Rack Handle Cover
