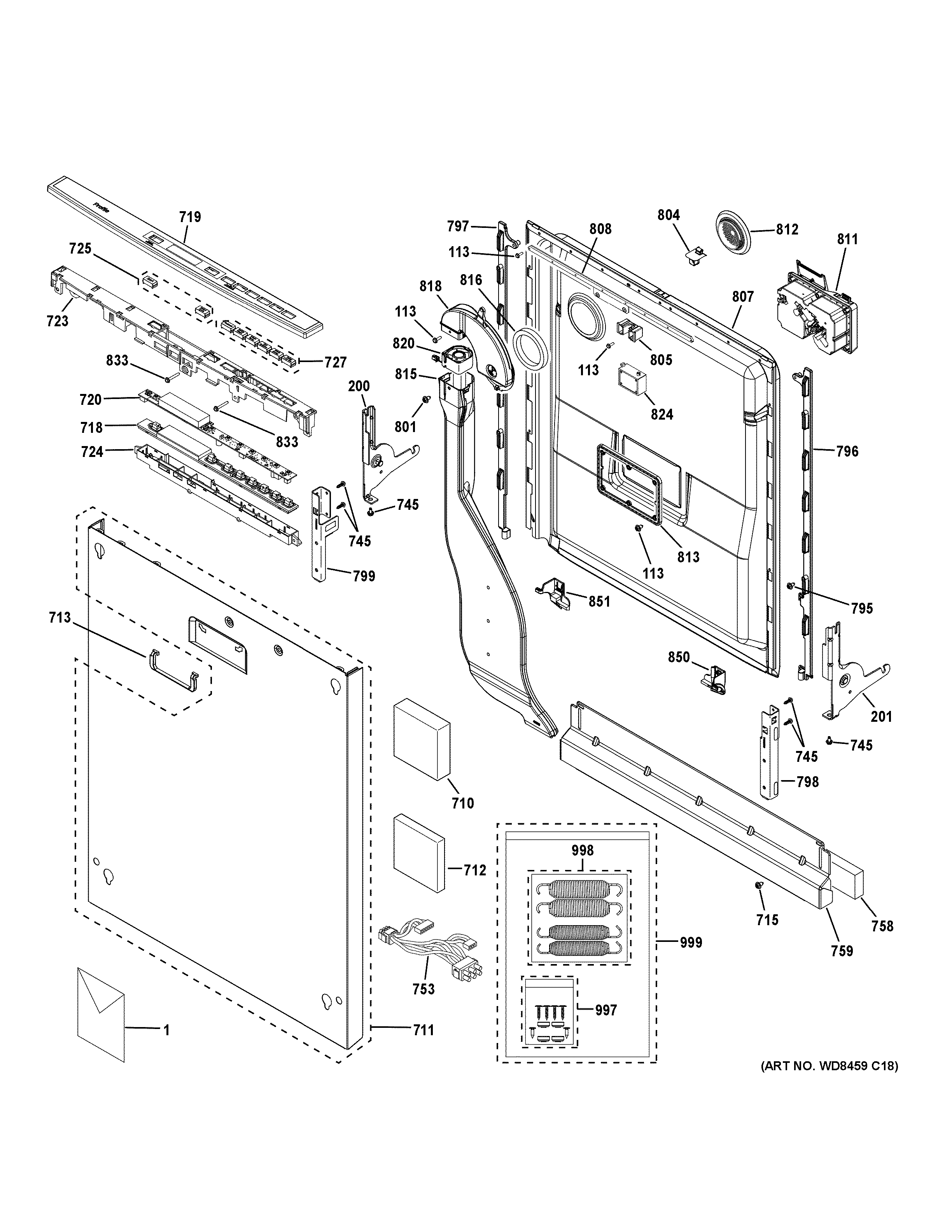

PDT760SIF0II ESCUTCHEON & DOOR ASSEMBLY

PDT760SIF0II ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDT760SIF0II ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI-MANUAL
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD01X21435 GE Dishwasher Right Hand Hinge Friction Pad Assembly
201WD01X21475 GE Dishwasher Left Hand Hinge Friction Pad Assembly
710BLOCK FOAM DOOR
711WD01X25659 GE Door Panel Trim
712BLOCK FOAM DOOR
713WD13X10027 GE Dishwasher Trim Panel Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
718WD21X22074 GE Dishwasher Kit Service UI LCD ASTN
719COVER CONSOLE ASM IML
720WD21X20299 GE Dishwasher Silicone Light Pipe
723TOP CONTROL CONSOLE
724WD12X20225 GE Dishwasher Bottom Housing
727P2 BUTTON ASM KIT – II
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29639 GE Dishwasher Inner Door
808WD01X20220 GE Dishwasher Top Attachment Strip
811WD12X32799 GE Dishwasher Detergent Module
812WD24X20586 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD12X23336 GE Dishwasher Transition Assembly
820WD24X20331 GE Dishwasher Vent Fan Assembly
824SPEAKER
833SCR 10-16 PL TR 2.25 S
850WD12X22540 GE Dishwasher Right Hand Door Trim
851WD12X22541 GE Dishwasher Door Trim Left Hand
997WD02X32581 GE Door Hardware and Template Kit
998WD02X32580 GE Door Balance Kit
999WD35X20417 GE Trim Panel Accessory Kit
