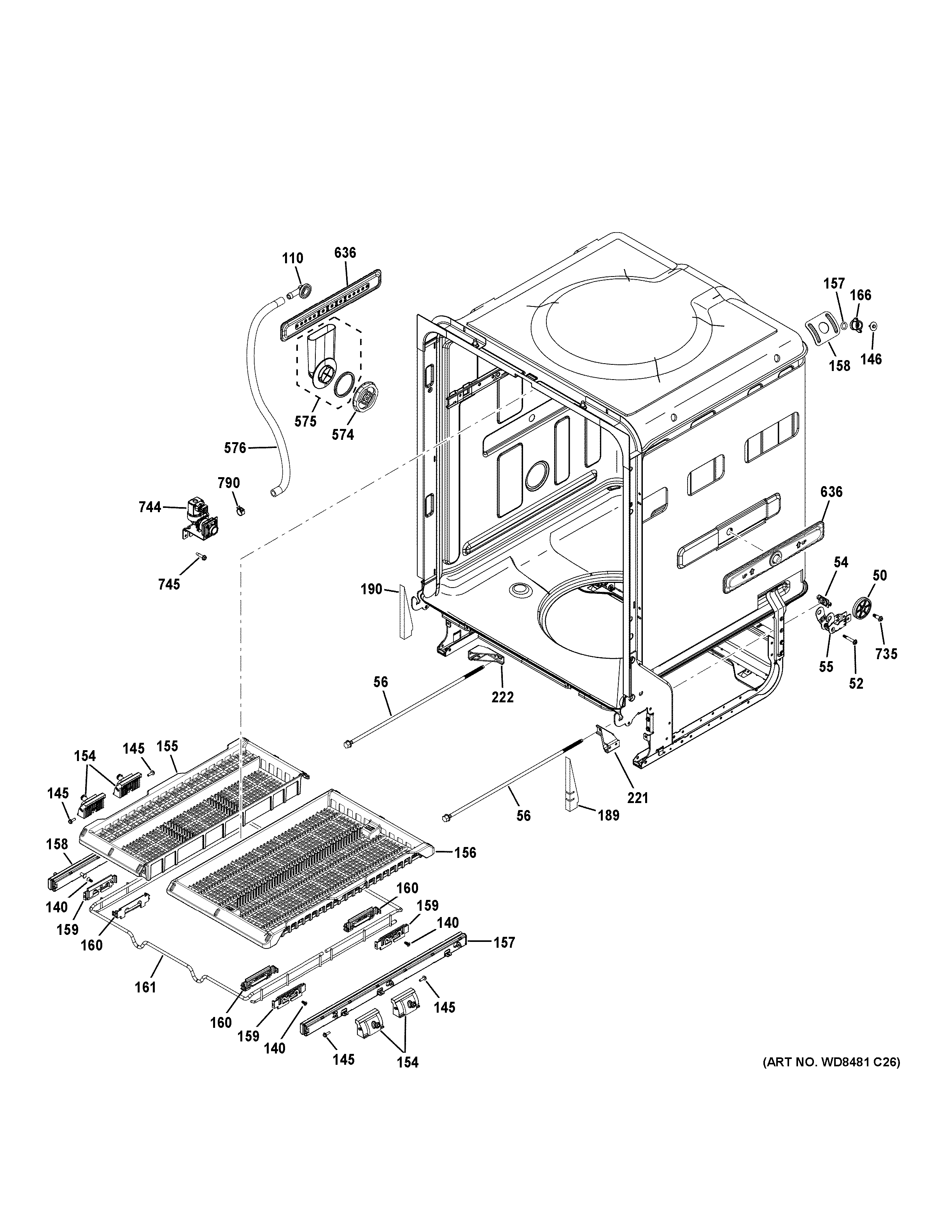

PDT760SIF1II BODY PARTS (2)

PDT760SIF1II BODY PARTS (2)

Written by

in

PDT760SIF1II BODY PARTS (2)

Products

PositionProduct
50WD27X20211 GE Dishwasher Rear Leveling Wheel
52SCR 8-32 B IHXW 5/4
54WD02X22539 GE Dishwasher Leveling Nut
55WD27X20676 GE Dishwasher Levelling Arm Bracket
56WD02X22538 GE Leveling Screw
110WD12X25419 GE Dishwasher Inlet Sideblaster
140WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
145WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
146WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
154WD30X20323 GE Mount and Gasket Assembly
155TRAY UTENSIL
156SILVERWARE TRAY ASM
157SLIDE THIRD RACK
158SLIDE THIRD RACK
159CLIP FRAME WIRE OUTER
160CLIP FRAME WIRE INNER
161THIRD RACK WIRE COATED
166WD02X20685 GE Dishwasher Tub Mount Sleeve
189WD01X22898 GE Right Offset Leg Shim
190WD01X22899 GE Left-Hand Offset Leg Shim
221BRACKET BOLT RETAINER
222BRACKET BOLT RETAINER
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
636WD22X21034 GE Dishwasher Side Blaster Assembly
735WD01X21837 GE Dishwasher Screw 10-32
744WD15X22948 GE Dishwasher Water Inlet Valve
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
790WD01X22786 GE Dishwasher Hose Clamp
