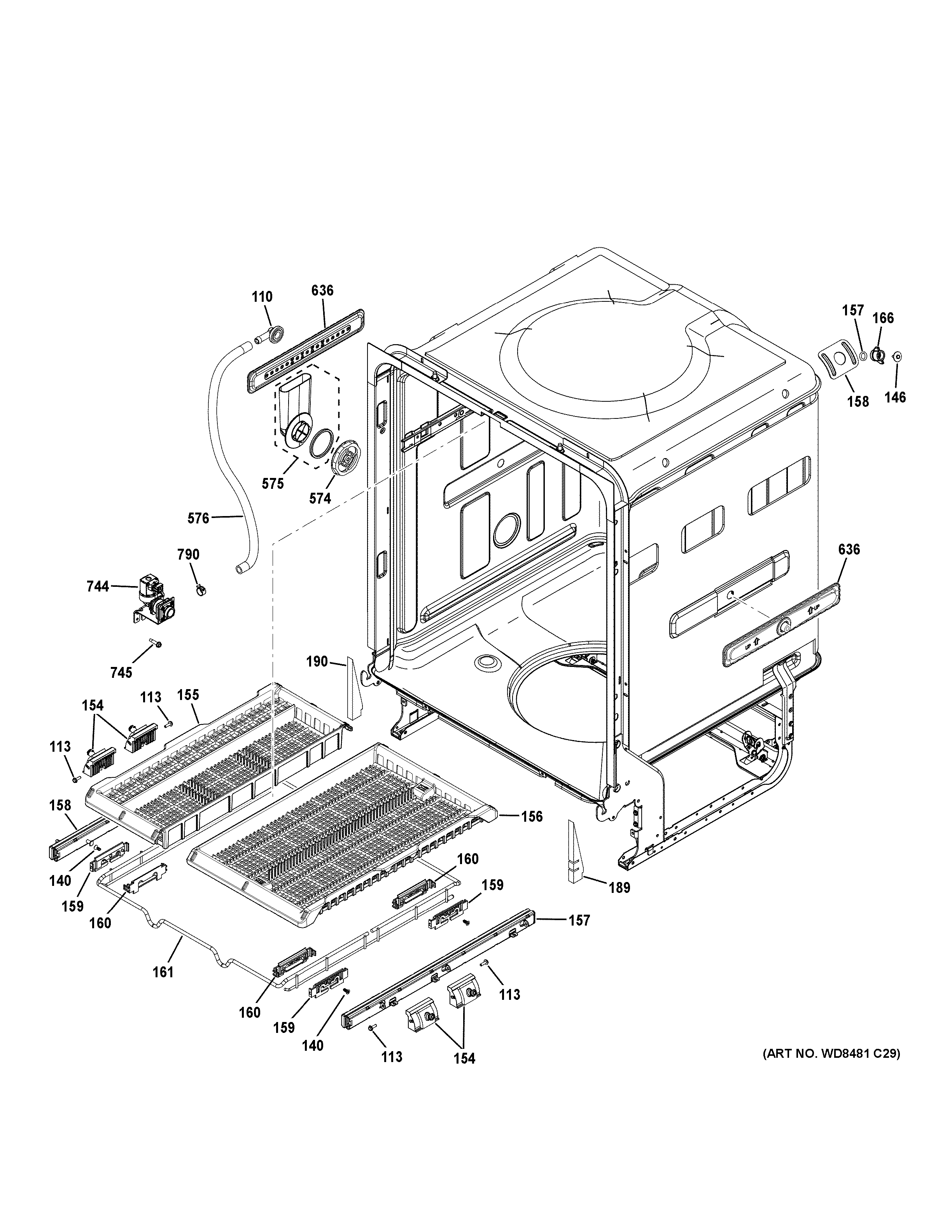

PDT760SSJ7SS BODY PARTS (2)

PDT760SSJ7SS BODY PARTS (2)

Written by

in

PDT760SSJ7SS BODY PARTS (2)

Products

PositionProduct
110WD12X25419 GE Dishwasher Inlet Sideblaster
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
140WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
146WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
154WD30X20323 GE Mount and Gasket Assembly
155TRAY UTENSIL
156SILVERWARE TRAY ASM
157SLIDE THIRD RACK
158WD30X21925 GE Dishwasher Third Rack Slide
159CLIP FRAME WIRE OUTER
160CLIP FRAME WIRE INNER
161THIRD RACK WIRE COATED
166WD02X20685 GE Dishwasher Tub Mount Sleeve
189WD01X22898 GE Right Offset Leg Shim
190WD01X22899 GE Left-Hand Offset Leg Shim
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
636WD22X21034 GE Dishwasher Side Blaster Assembly
744WD15X22948 GE Dishwasher Water Inlet Valve
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
790WD01X22786 GE Dishwasher Hose Clamp
