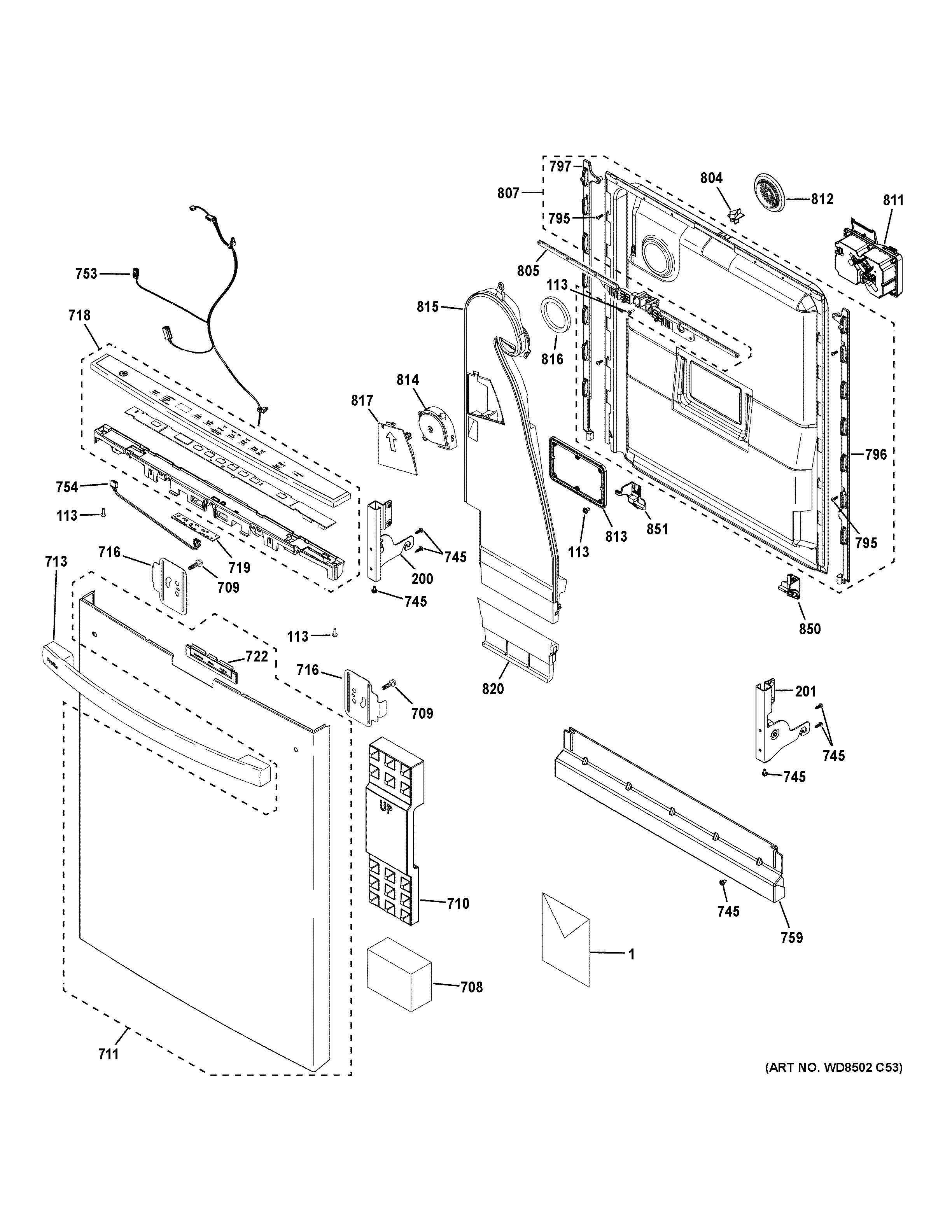

PDT775SYN8FS ESCUTCHEON & DOOR ASSEMBLY

PDT775SYN8FS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDT775SYN8FS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM MINI MANUAL AND WIRING
1INSERT MINI MANUAL
1PM ATTENTION INSTALLER
1PM OWNERS AND INSTALL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
708WD01X28007 GE Vent Spacer
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10585 GE Dishwasher Door Foam Block
711STAINLESS OUTER DOOR ASM
713WD09X25617 GE Dishwasher Stainless Steel Handle
716WD01X25862 GE Dishwasher Handle Bracket
718WD21X32125 GE Dishwasher Top User Interface Control
719WD21X25396 GE Dishwasher LED Display Profile
722WD01X26019 GE Dishwasher Lens and Adhesive Assembly
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X31639 GE UI Harness
754WD21X26338 GE Dishwasher LED Harness Board
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD27X25997 GE Dishwasher Stainless Inner Door Assembly
811WD12X31658 GE Detergent Module
812WD01X25673 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
814WD08X26578 GE Dishwasher Blower Gasket Assembly
815WD12X30518 GE Dishwasher Door Conduit Vent
816DOOR VENT SEAL
817WD01X25633 GE Fan Cover Conduit
820WD24X26142 GE Dishwasher Door Vent
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
