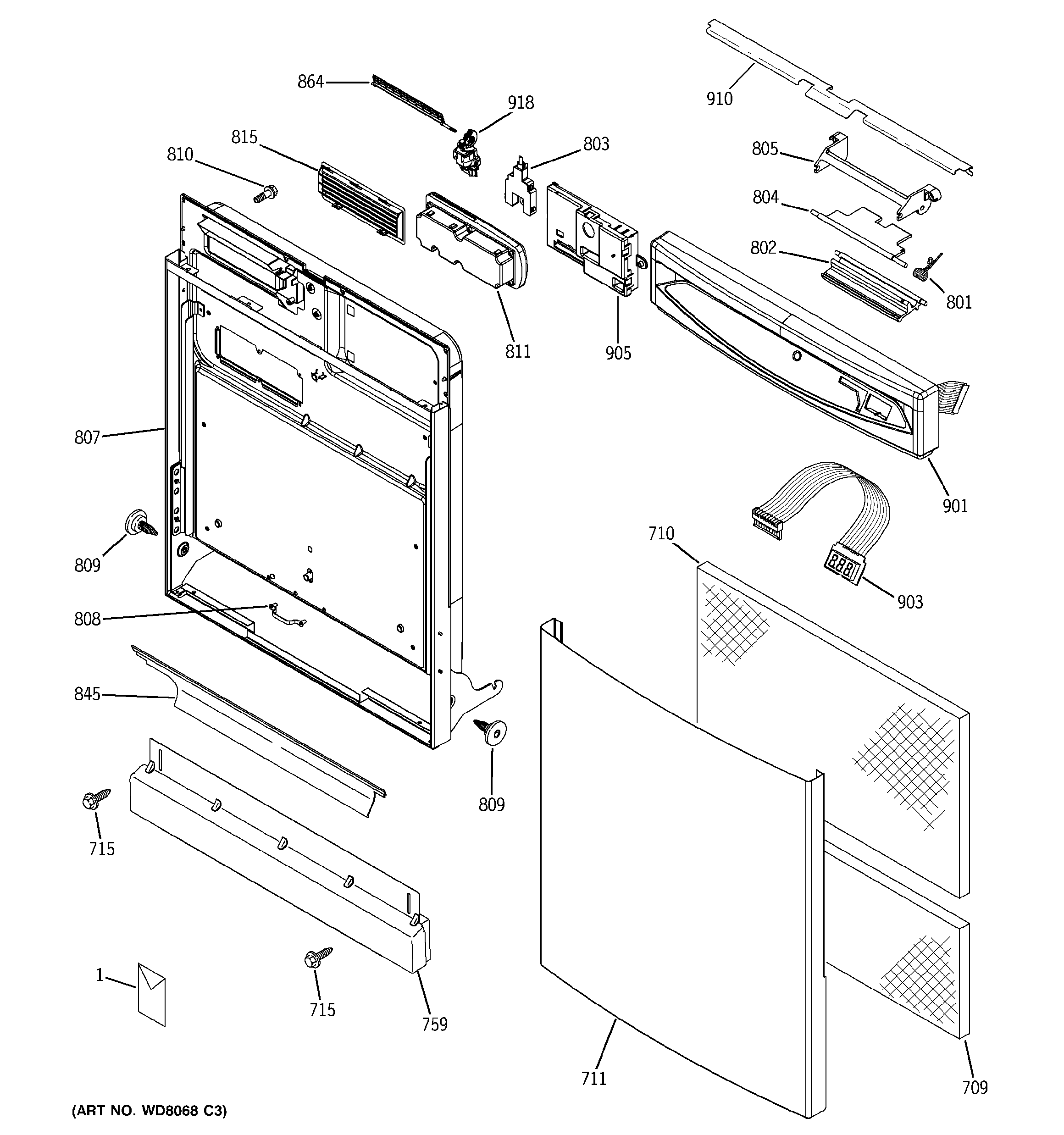

PDW7800G00BB ESCUTCHEON & DOOR ASSEMBLY

PDW7800G00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW7800G00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5908
1GEN 31-30365
1GEN 31-30530
709GEN WD01X10113
710INSULATION PANEL SS
711GEN WD31X10030
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759GEN WD27X10087
801WR02X10585 SPRING RECES
802GEN WD13X10007
803GEN WD21X10121
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10027
808GEN WD01X10110
809GEN WD02X10084
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
815GEN WD12X10045
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
864WD12X10044 GE Dishwasher Flapper Vent
901GEN WD34X10570
903GEN WD21X10122
905GEN WD21X10117
910GEN WD34X10855
918WD21X10172 GE Dishwasher Vent Driver
