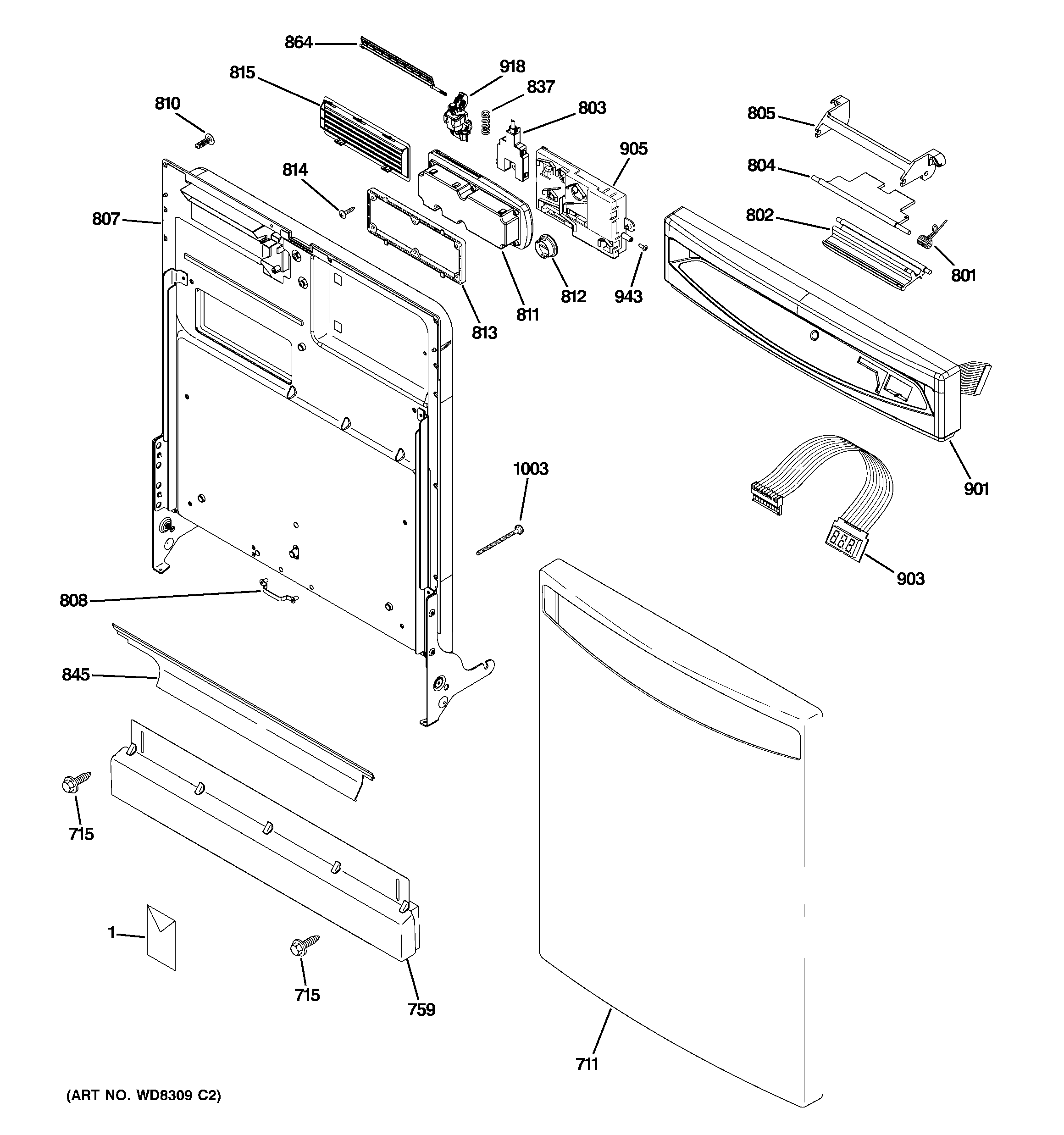

PDW7800R10CC ESCUTCHEON & DOOR ASSEMBLY

PDW7800R10CC ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW7800R10CC ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30609
1WD35X10347 GE Dishwasher O-Ring Kit
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30258
1GEN 49-55064
711GEN WD35X10050
711GEN WD31X10052
711GEN WD31X10051
711GEN WD31X10050
715GEN WD02X10087
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759GEN WD27X10086
759GEN WD27X10087
759GEN WD27X10088
801WR02X10585 SPRING RECES
802GEN WD13X10011
802GEN WD13X10010
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10099
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10206 GE Dishwasher Rinse Cap Assembly
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10045
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
864WD12X10067 GE Dishwasher Flapper Vent
864WD12X10044 GE Dishwasher Flapper Vent
864GEN WD12X10068
901GEN WD34X11676
901GEN WD34X11654
901GEN WD34X11653
903GEN WD21X10260
905GEN WD21X10405
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
1003GEN WB01T10019
