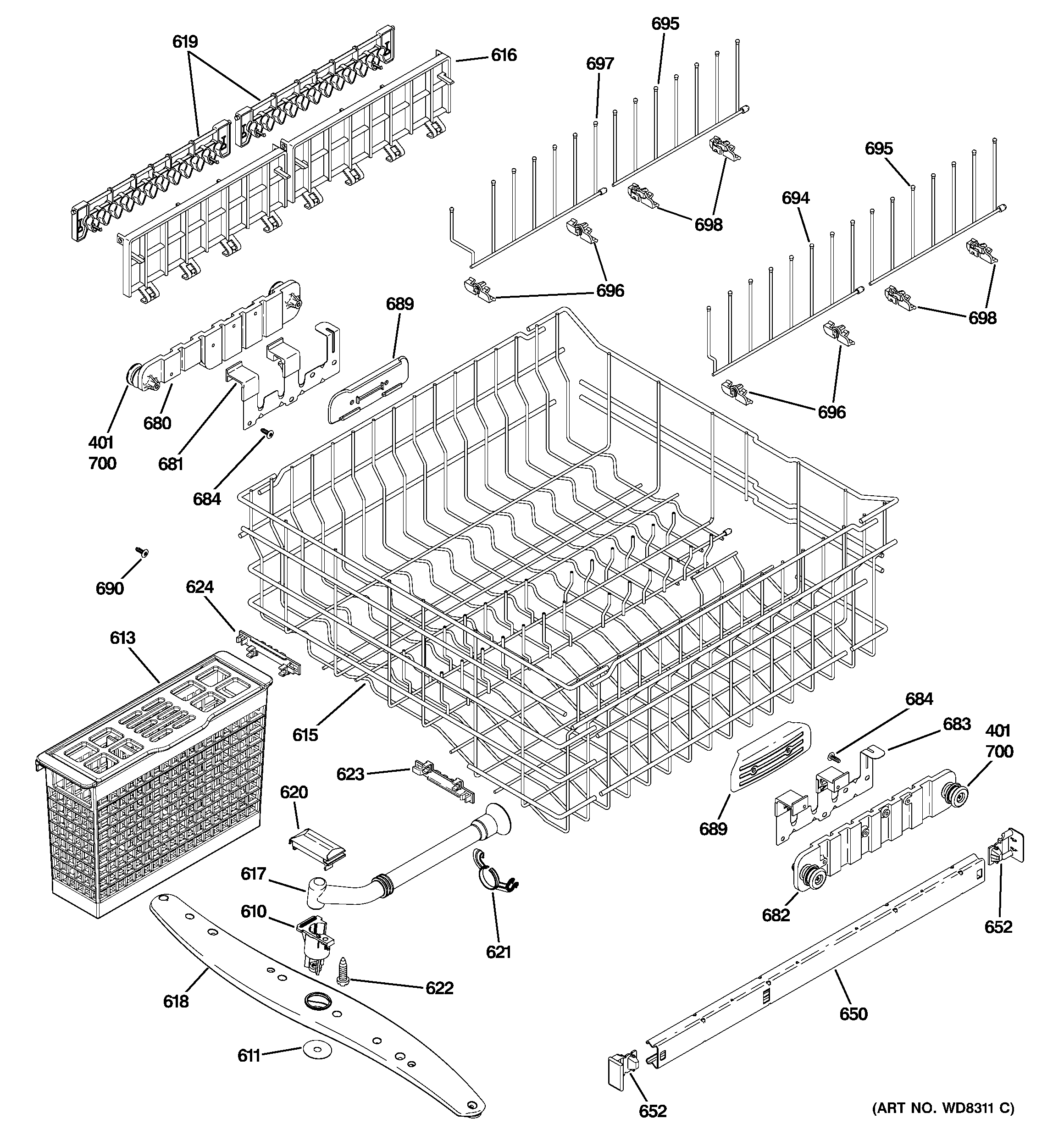

PDW7800R10CC UPPER RACK ASSEMBLY

PDW7800R10CC UPPER RACK ASSEMBLY

Written by

in

PDW7800R10CC UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
613GEN WD28X10186
615GEN WD28X10281
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
617GEN WD12X10110
618GEN WD22X10067
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
700WD35X20994 GE Dishwasher Upper Dish Rack Kit
