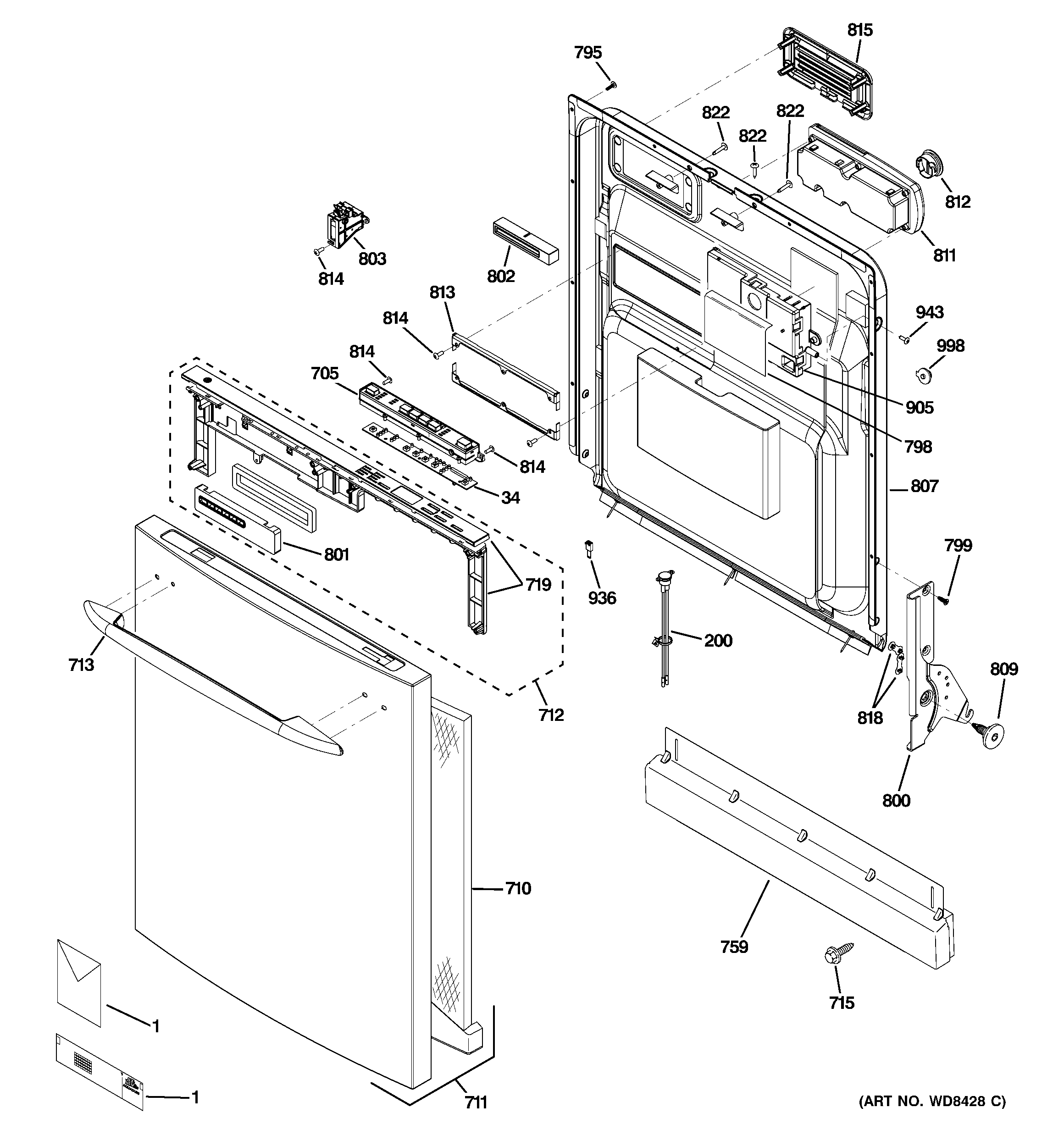

PDW7880V00SS ESCUTCHEON & DOOR ASSEMBLY

PDW7880V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW7880V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30634
1GEN 31-30283
1GEN 49-55077
34CONTROL TACTILE ASM KIT
200WD01X10567 GE Dishwasher Thermostat
705BUTTON ASM SILICON PRO
710GEN WD01X10287
711GEN WD31X10136
712GEN WD27X10315
713HANDLE ASM DOOR SS
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719GEN WD27X10293
759GEN WD27X10219
795WD2X444 GE Dishwasher Mechanical Screw
798WD01X10635 GE Dishwasher Control Shield
799WD02X10093 GE Dishwasher Screw 10-18 X 5/8
800GEN WD14X10025
800GEN WD14X10024
801GEN WD01X10524
802GEN WD01X10545
803GEN WD13X10061
807GEN WD31X10128
809WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10368
818WD14X10009 GE Dishwasher Hinge Link Arm
822WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
905WD21X10505 GE Dishwasher Control Tactile Assembly Kit
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
943WZ5X219D GE Screw Package
998GEN WD01X10563
