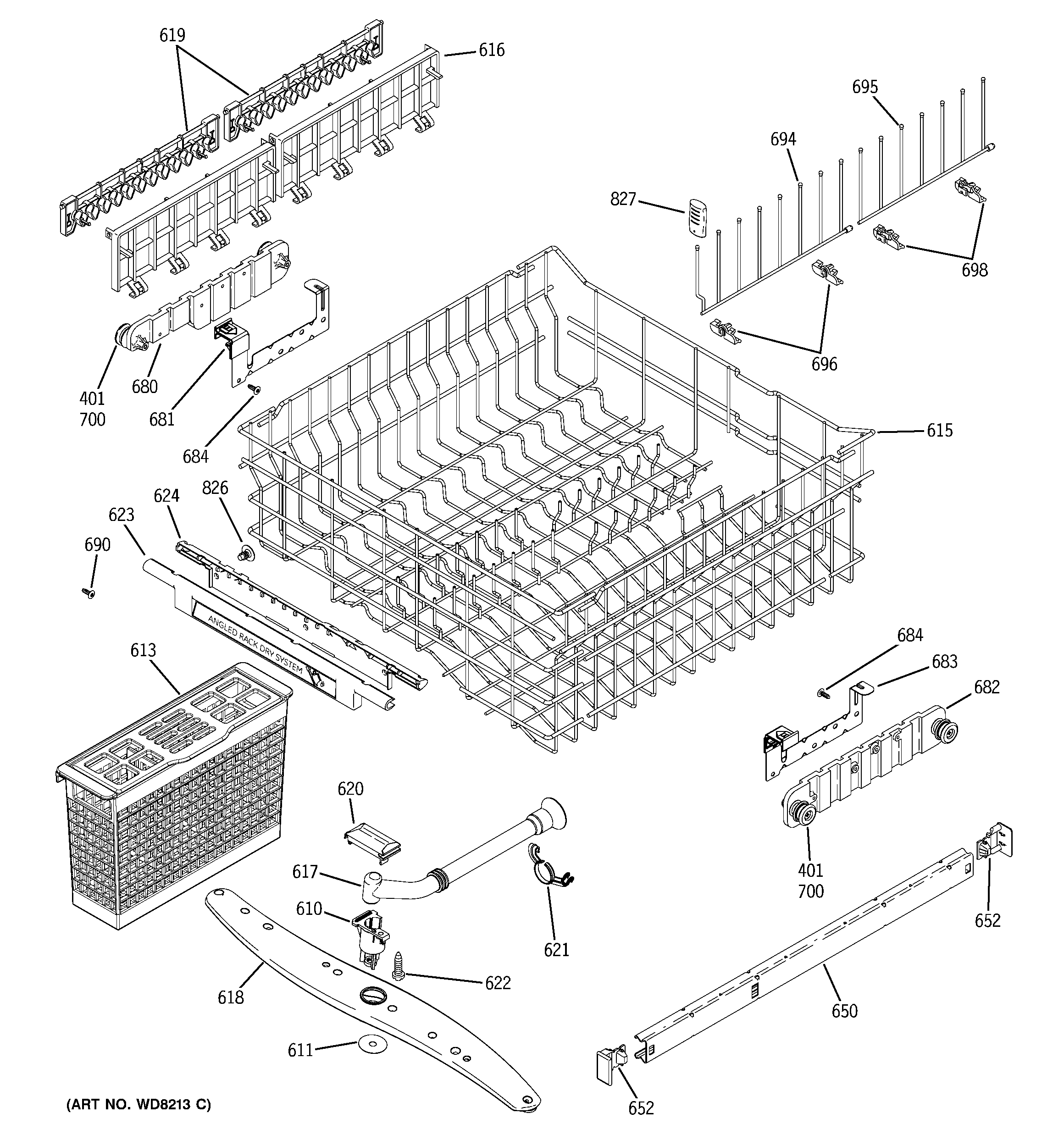

PDW7900N10WW UPPER RACK ASSEMBLY

PDW7900N10WW UPPER RACK ASSEMBLY

Written by

in

PDW7900N10WW UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10352 GE Support Spray Arm
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
613GEN WD28X10186
615GEN WD28X10204
616GEN WD28X10180
617WD12X10147 GE Dishwasher Mid Spray Conduit
618WD22X10046 GE Dishwasher Middle Spray Arm Assembly
619GEN WD28X10181
620WD21X10391 GE Breakwater Left Switch
621GEN WD12X10054
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623GEN WD12X10249
624GEN WD12X10250
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
680GEN WD12X10149
681GEN WD01X10345
682GEN WD12X10150
683GEN WD01X10346
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
690GEN WD02X10113
694GEN WD28X10174
695GEN WD28X10173
696GEN WD28X10063
698GEN WD28X10062
700WD35X20994 GE Dishwasher Upper Dish Rack Kit
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD28X10175
