PDW8000G03BB DOOR ASSEMBLY – Aparts

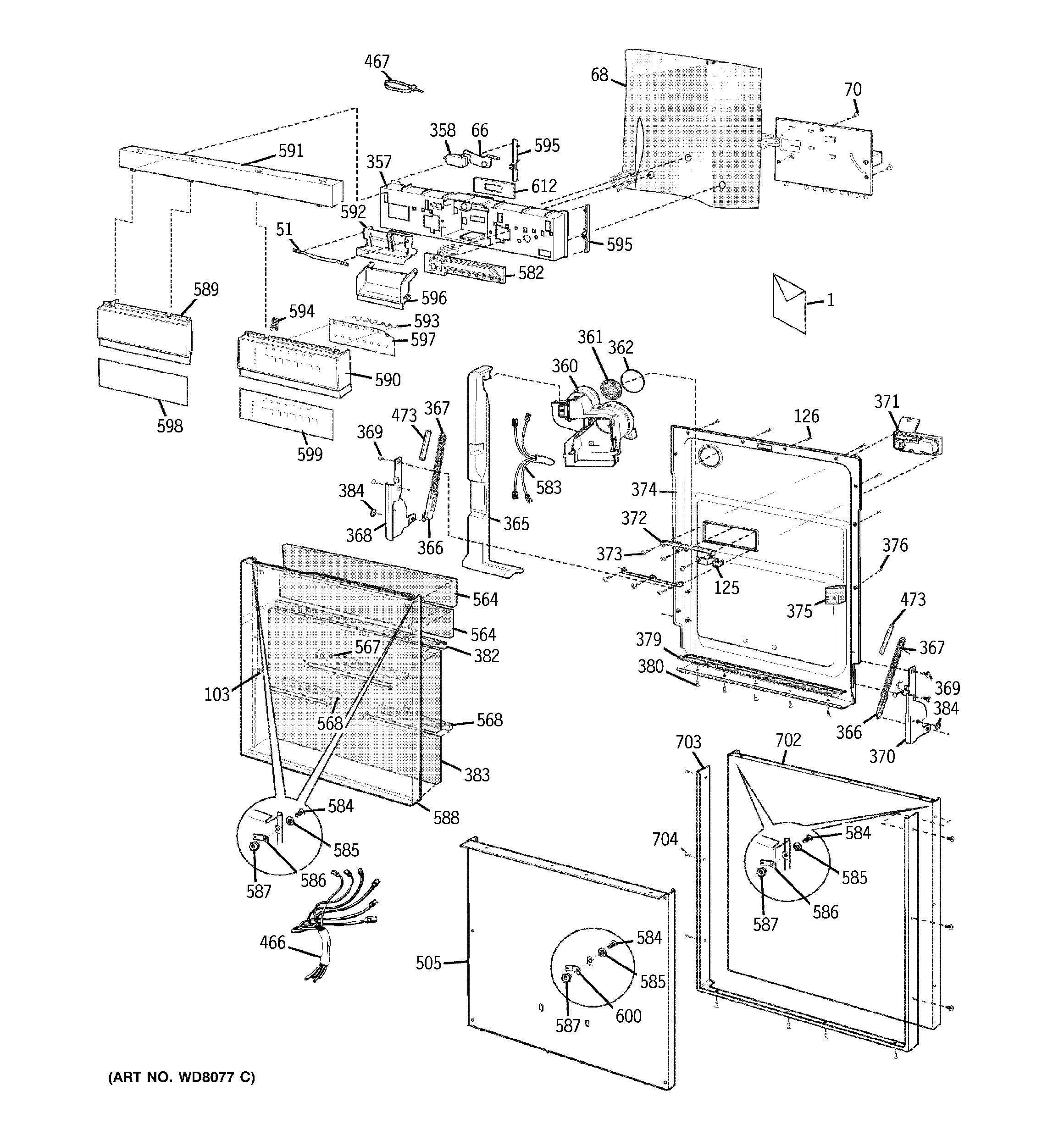

PDW8000G03BB DOOR ASSEMBLY

Products

Position	Product
1	GEN 49-5925
1	GEN 31-30399
1	GEN 31-30545
51	GEN WD03X10008
66	GEN WD12X10028
68	GEN WD12X10034
70	SCREW NO. 7 1/2 PHIL HIL
103	GEN WD02X10030
125	GEN WD01X10060
126	SCREW NO. 8 S/S HILO
357	GEN WD34X10581
358	GEN WD21X10042
360	GEN WD18X10012
361	GEN WD24X10022
362	GEN WD01X10131
365	GEN WD24X10021
366	GEN WD01X10132
367	GEN WD01X10192
368	GEN WD14X10012
369	GEN WD02X10070
370	GEN WD14X10013
371	GEN WD28X10087
372	GEN WD28X10088
373	GEN WD02X10071
374	GEN WD27X10089
375	GEN WD27X10090
376	GEN WD02X10072
379	GEN WD27X10091
380	GEN WD02X10073
382	GEN WD27X10093
383	GEN WD30X10002
384	GEN WD27X10094
466	GEN WD21X10128
467	GEN WD01X10128
473	GEN WD01X10187
505	GEN WD34X10617
564	GEN WD30X10010
567	GEN WD27X10099
568	GEN WD27X10100
582	GEN WD21X10154
583	GEN WD21X10124
584	GEN WD02X10095
585	GEN WD02X10096
586	GEN WD01X10188
587	GEN WD02X10097
588	GEN WD34X10631
589	PANEL, TRIM, BLANK L/H
590	PANEL, TRIM, BLANK R/H
591	PANEL, TOP COVER (BLACK)
592	HANDLE, DOOR (BLACK)
593	GEN WD21X10153
594	GEN WD21X10152
595	FILLER PANEL (BLACK)
596	GEN WD09X10041
597	GEN WD27X10147
598	GEN WD27X10145
599	TRIM, FACIA RH.
600	GEN WD01X10189
612	GEN WD01X10194
702	GEN WD34X10653
703	GEN WD34X10654
704	GEN WD02X10088
