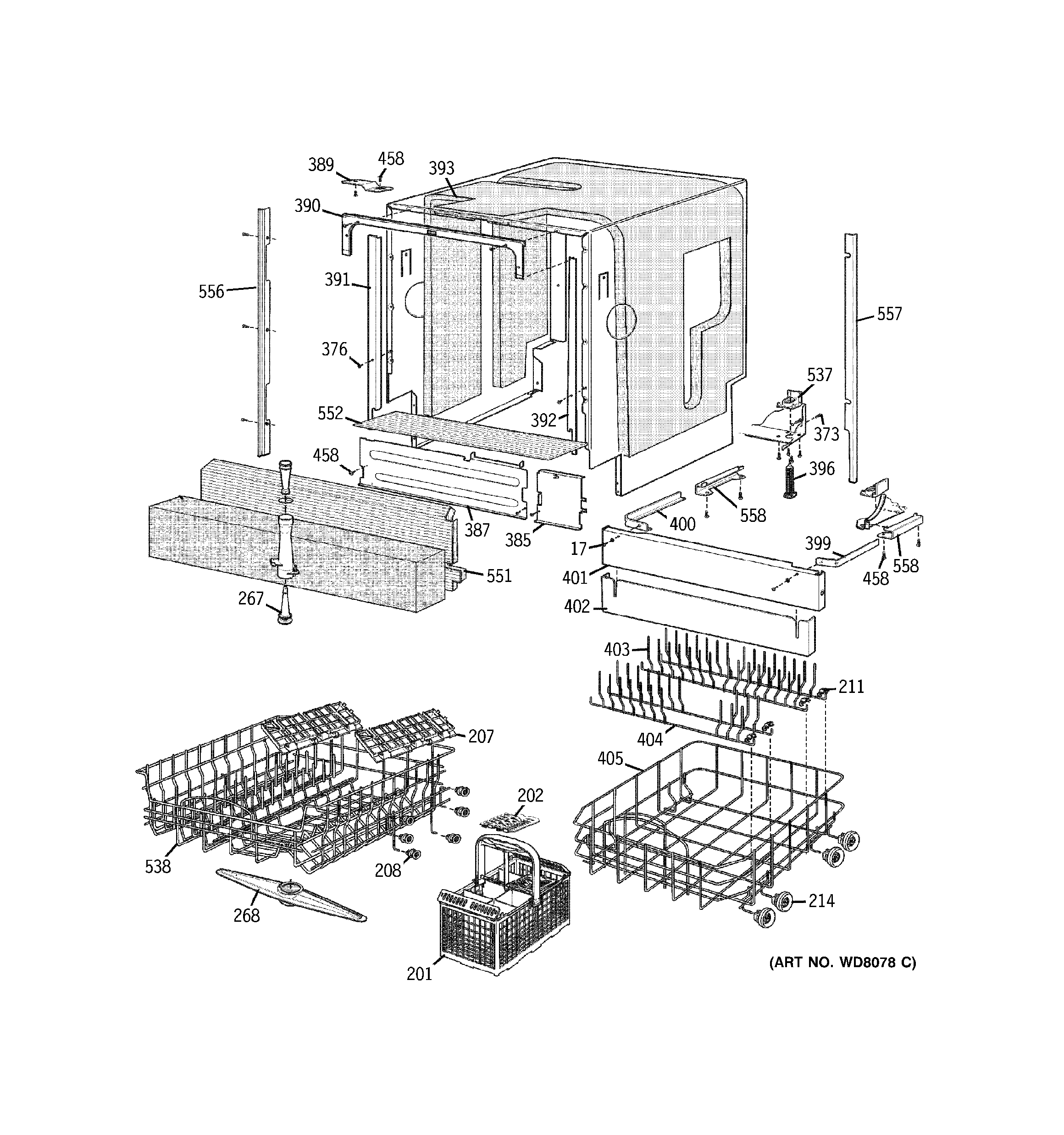

PDW8000G0CC BASKET & WRAP ASSEMBLY

PDW8000G0CC BASKET & WRAP ASSEMBLY

Written by

in

PDW8000G0CC BASKET & WRAP ASSEMBLY

Products

Position	Product
17	GEN WD02X10098
201	CUTLERY BASKET ASSY
202	GEN WD28X10027
207	GEN WD28X10030
208	GEN WD12X10032
211	GEN WD01X10046
214	GEN WD01X10047
267	UPPER VENTURI ASSEMBLY
268	GEN WD22X10015
373	GEN WD02X10071
376	GEN WD02X10072
385	GEN WD34X10606
387	GEN WD34X10582
389	GEN WD28X10089
390	GEN WD34X10584
391	GEN WD34X10585
392	GEN WD34X10586
393	GEN WD30X10003
396	GEN WD01X10193
399	GEN WD28X10090
400	GEN WD28X10091
401	GEN WD34X10636
402	GEN WD34X10637
403	GEN WD28X10084
404	GEN WD28X10085
405	GEN WD28X10102
458	GEN WD02X10081
537	GEN WD01X10141
538	GEN WD28X10101
551	PANEL & INSULATION ASSY
552	GEN WD34X10608
556	GEN WD34X10592
557	GEN WD34X10593
558	GEN WD28X10093
