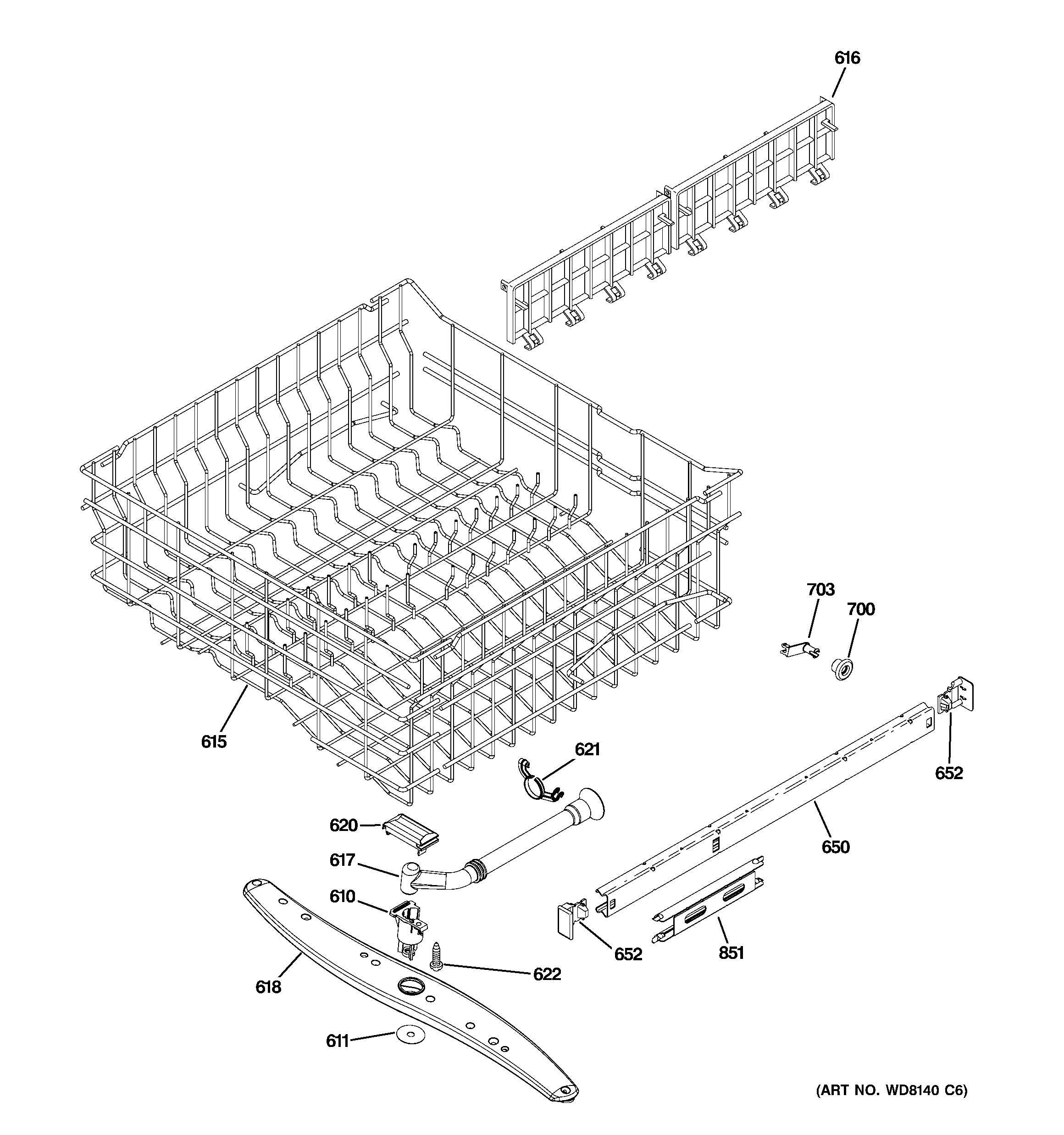

PDW8280J03SS UPPER RACK ASSEMBLY

PDW8280J03SS UPPER RACK ASSEMBLY

Written by

in

PDW8280J03SS UPPER RACK ASSEMBLY

Products

PositionProduct
610GEN WD12X10115
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10410 GE Dishwasher Upper Dishrack Assembly
616WD28X302 GE Dishwasher Cup Shelf
617GEN WD12X10110
618WD22X10040 GE Dishwasher Mid Spray Arm Assembly
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650GEN WD30X10021
652SLIDE END CAP
700GEN WD12X10138
703GEN WD12X10141
851CAGE ROLLER BEARING ASSMBLY
