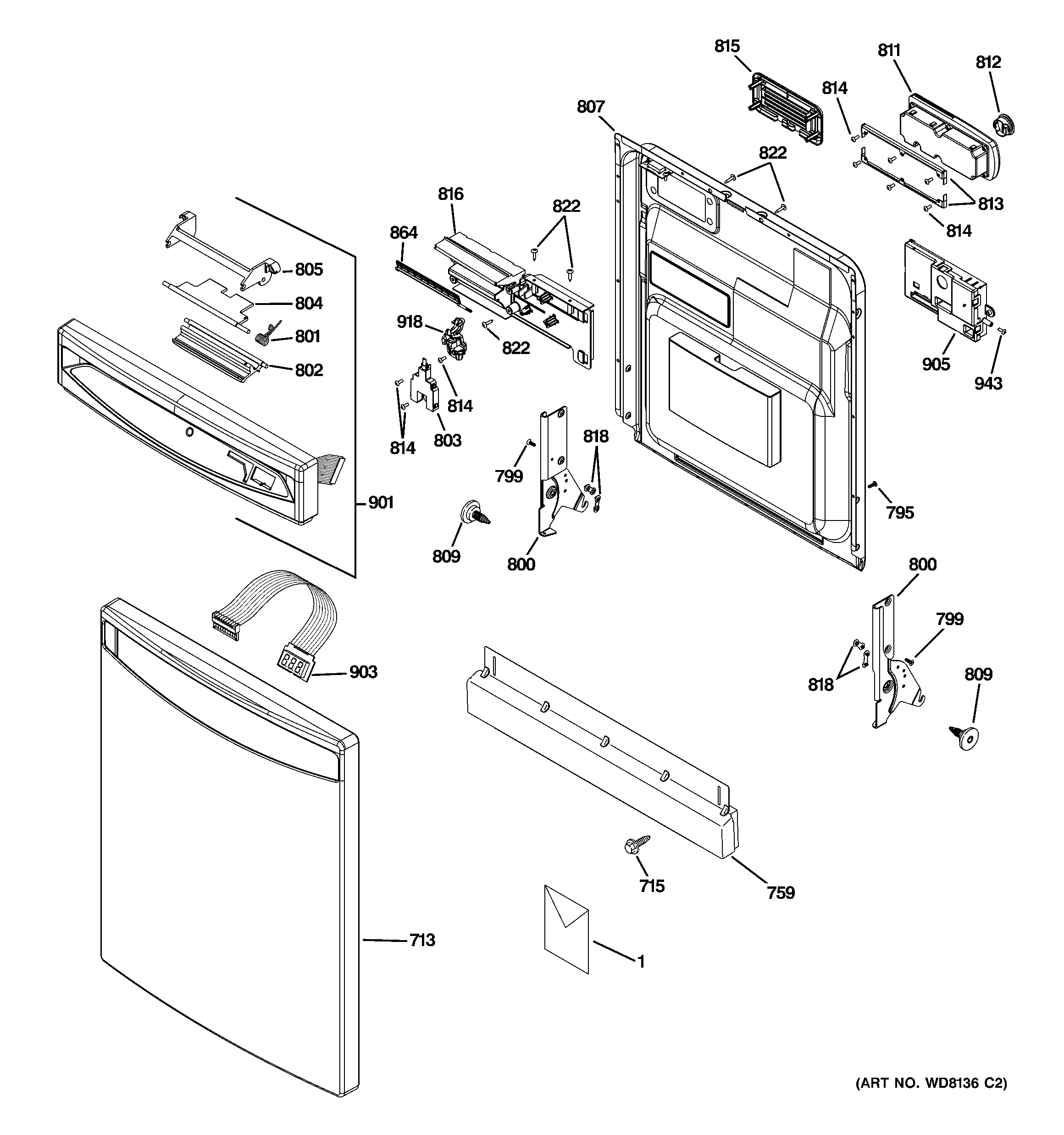

PDW8400J00BB ESCUTCHEON & DOOR ASSEMBLY

PDW8400J00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW8400J00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5948
1GEN 31-30449
1GEN 31-30561
713GEN WD31X10050
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759WD27X10177 GE Dishwasher Toe Kick Assembly
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799GEN WD02X10107
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801WR02X10585 SPRING RECES
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10017
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10140
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10044 GE Dishwasher Flapper Vent
901ESCUTCHEON BOWED SS ASM
903GEN WD21X10122
905GEN WD21X10174
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
