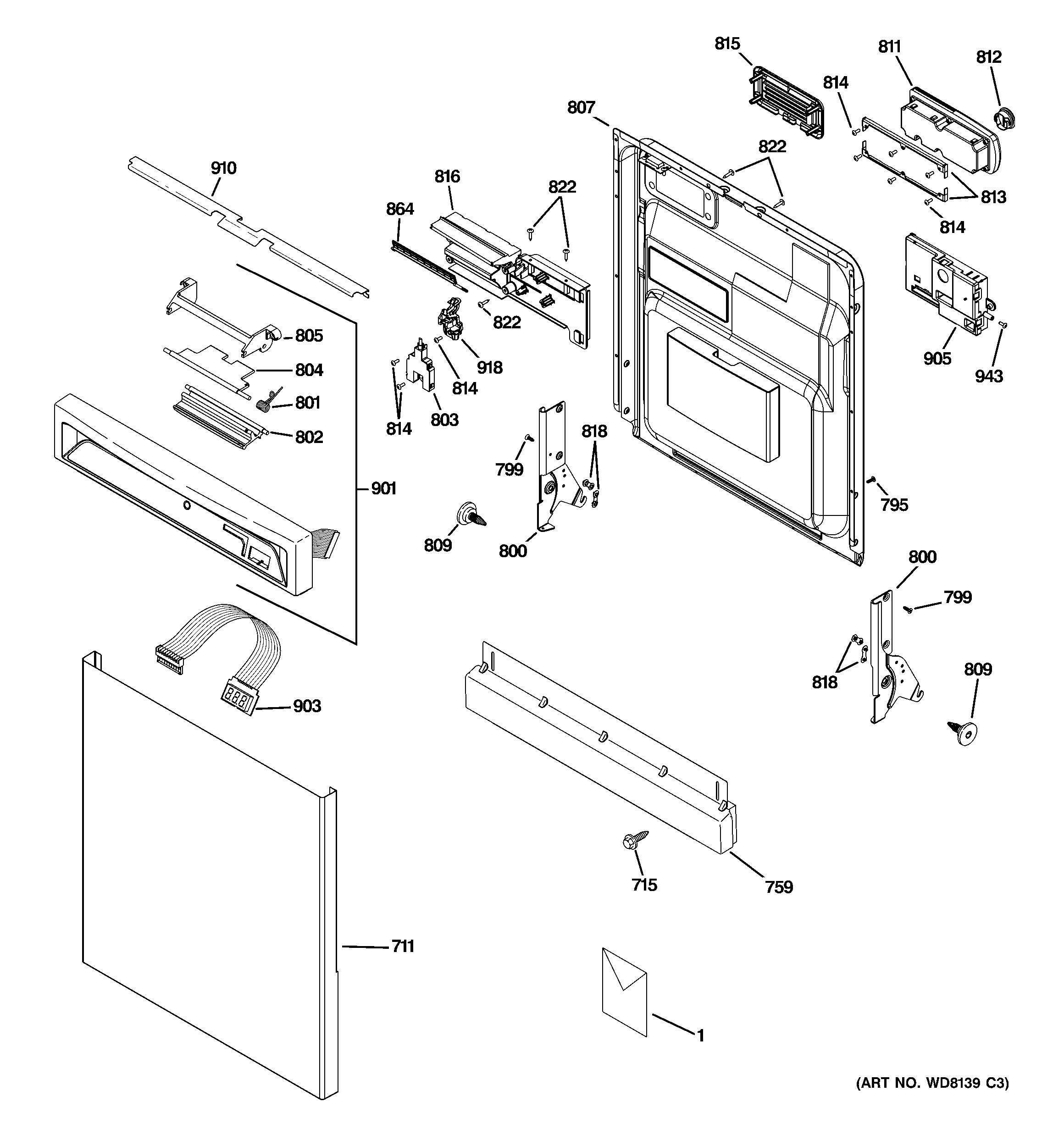

PDW8500J00BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T13:10:28+00:00PDW8500J00BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1GEN 31-304491GEN 31-305611GEN 49-5948711PANEL FRONT ASM715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N759WD27X10177 GE Dishwasher Toe Kick Assembly795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8799WR01X10065 GE Screw800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly801WR02X10585 SPRING RECES802GEN WD13X10007803GEN WD21X10169804WD13X10045 GE Dishwasher Handle Actuator805GEN WD13X10017807WD31X10042 GE Dishwasher Inner Door Assembly809GEN WD02X10084811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser812WD12X10122 GE Dishwasher Dispenser Cap813WD01X10207 GE Dishwasher Bracket Detergent Display814GEN WD02X10104815WD12X10127 GE Dishwasher Vent Cover816GEN WD12X10140818GEN WD12X10025822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"864WD12X10044 GE Dishwasher Flapper Vent901GEN WD34X10872903GEN WD21X10122905GEN WD21X10174910GEN WD34X10871918WD21X10172 GE Dishwasher Vent Driver943WZ5X219D GE Screw Package
